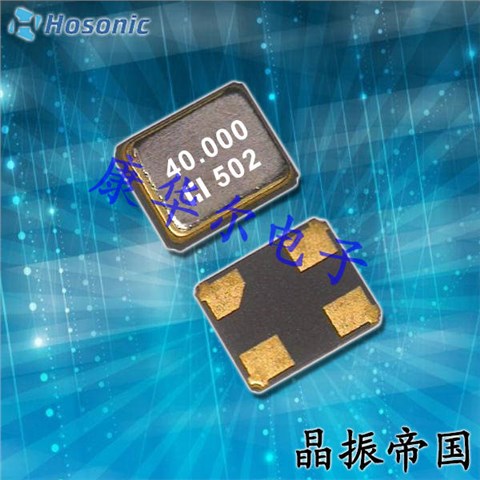

鸿星超小型晶振,ETSB48E007500ECBB8,ETSB可穿戴设备6G晶振

鸿星超小型晶振,ETSB48E007500ECBB8,ETSB可穿戴设备6G晶振，台湾Hosonic鸿星晶振，ETSB系列晶振，编码为：ETSB48E007500ECBB8，频率为：48MHz，小体积晶振尺寸：1.6x1.2x0.37mm封装，四脚贴片晶振，无源晶振，石英晶振，石英晶体谐振器，SMD石英晶体，无铅晶振。具有超小型，轻薄型，高精度，高性能，高品质，耐热及耐环境特点。理想的可穿戴设备和短程无线模块无铅。满足使用无铅焊料进行再流分析的要求。1612晶振被广泛应用于：可穿戴设备晶振，小型便携式设备，智能手机，笔记本电脑，无线网络，蓝牙模块，游戏机设备，玩具晶振，数码电子，家用电器等应用。

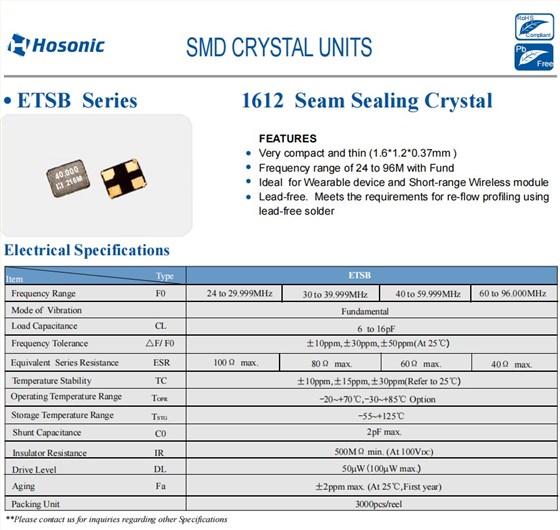

鸿星超小型晶振,ETSB48E007500ECBB8,ETSB可穿戴设备6G晶振，参数表

Item	Type	ETSB
Frequency Range	F0	24 to 29.999MHz	30 to 39.999MHz	40 to 59.999MHz	60 to 96.000MHz
Mode of Vibration		Fundamental
Load Capacitance	CL	6to 16pF
Frequency Tolerance	ΔF/ F0	±10ppm,±30ppm,±50ppm(At 25℃)
EquivalentSeries Resistance	ESR	100Ωmax.	80Ωmax.	60Ωmax.	40Ωmax.
Temperature Stability	TC	±10ppm,±15ppm,±30ppm(Refer to 25℃)
Operating Temperature Range	TOPR	-20~+70℃,-30~+85℃Option
Storage Temperature Range	TSTG	-55~+125℃
Shunt Capacitance	C0	2pF max.
Insulator Resistance	IR	500MΩmin. (At 100VDC)
Drive Level	DL	50μW(100μW max.)
Aging	Fa	±2ppm max. (At 25℃,First year)
Packing Unit		3000pcs/reel

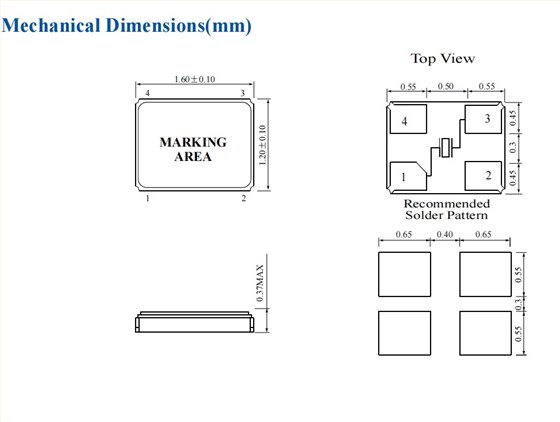

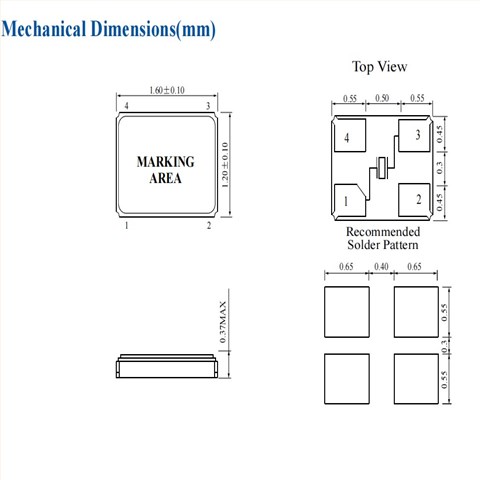

鸿星超小型晶振,ETSB48E007500ECBB8,ETSB可穿戴设备6G晶振，尺寸图

鸿星超小型晶振,ETSB48E007500ECBB8,ETSB可穿戴设备6G晶振

1612mm体积的晶振,可以说是目前小型数码产品的福音,目前超小型的智能手机里面所应用的就是小型的石英晶振,该产品最适用于无线通讯系统,通讯设备晶振,无线局域网,已实现低相位噪声,低电压,低消费电流和高稳定度,超小型,质量轻等产品特点,产品本身编带包装方式,可对应自动高速贴片机应用,以及高温回流焊接（产品无铅对应）,为无铅产品.

晶振料号	品牌	系列	频率	频率稳定性	负载电容
ETSB37E0X0014E	Hosonic鸿星	ETSB	37.4MHz	±10ppm	16pF
ETSB38E0X0005E	Hosonic鸿星	ETSB	38.4MHz	±10ppm	10pF
ETSB24E000003E	Hosonic鸿星	ETSB	24MHz	±10ppm	8pF
ETSB48E007500ECBB8	Hosonic鸿星	ETSB	48MHz	±15ppm	10pF
ETSB48E007502E	Hosonic鸿星	ETSB	48MHz	±15ppm	10pF
ETSB32E000003E	Hosonic鸿星	ETSB	32MHz	±10ppm	8pF
ETSB60E003700E	Hosonic鸿星	ETSB	60MHz	±20ppm	9pF
ETSB27E0X0003E	Hosonic鸿星	ETSB	27.12MHz	±10ppm	10pF
ETSB25E004800E	Hosonic鸿星	ETSB	25MHz	±15ppm	8pF
ETST00327000JE	Hosonic鸿星	ETST	32.768kHz	±20ppm	12.5pF
E5FA8E000000DE	Hosonic鸿星	E5FA	8MHz	±20ppm	20pF
E5SB8E0000000E	Hosonic鸿星	E5SB	8MHz	±10ppm	10pF
E5SB8E0000015E10C0	Hosonic鸿星	E5SB	8MHz	±20ppm	10pF
E5SB8.00000F10E11	Hosonic鸿星	E5SB	8MHz	10ppm	10pF
E5FA8.00000F20E22	Hosonic鸿星	E5FA	8MHz	±20ppm	20PF
E5FA8.00000F20E11	Hosonic鸿星	E5FA	8MHz	±20ppm	20PF
E5FA10.0000F18E33	Hosonic鸿星	E5FA	10MHz	±30ppm	18pF
E5FA12E00000ME	Hosonic鸿星	E5FA	12MHz	±30ppm	18pF
E5FA13.5600F18E33	Hosonic鸿星	E5FA	13.56MHz	±30ppm	18pF
E5FA14.7456F18E33	Hosonic鸿星	E5FA	14.7456MHz	±30ppm	18pF
E5FA16.0000F18E33	贴片晶振	E5FA	16MHz	±30ppm	18pF
E5FA18.4320F18E33	Hosonic鸿星	E5FA	18.432MHz	±30ppm	18pF
E5FA24.0000F18E33	Hosonic鸿星	E5FA	24MHz	±30ppm	18pF
E5FA24.0000F20D33	Hosonic鸿星	E5FA	24MHz	±30ppm	20pF
E5FA24.5760F18E33	Hosonic鸿星	E5FA	24.576MHz	±30ppm	18pF
E5FA25E00000KE	Hosonic鸿星	E5FA	25MHz	±30ppm	16pF
E5FA25E00000TE	Hosonic鸿星	E5FA	25MHz	±30ppm	18pF
E5SB11E0X0006E	Hosonic鸿星	E5SB	11.0592MHz	±30ppm	18pF
E5SB12.0000F18E33	Hosonic鸿星	E5SB	12MHz	±30ppm	18pF
E5SB13.5600F18E33	Hosonic鸿星	E5SB	13.56MHz	±30ppm	18pF
E5SB14.7456F18E33	Hosonic鸿星	E5SB	14.7456MHz	±30ppm	18pF
E5SB20.0000F18E33	Hosonic鸿星	E5SB	20MHz	±30ppm	18pF
E5SB24.0000F18M12	Hosonic鸿星	E5SB	24MHz	±30ppm	18pF
E5SB24.5760F18E33	Hosonic鸿星	E5SB	24.576MHz	±30ppm	18pF
E5SB25.0000F18E33	Hosonic鸿星	E5SB	25MHz	±30ppm	18pF
E5SB25E00001LE	Hosonic鸿星	E5SB	25MHz	±30ppm	18pF
E5SB27.0000F18E33	Hosonic鸿星	E5SB	27MHz	±30ppm	18pF
