R1210-37.400-8-F-1010-TR,欧美无源晶振,拉隆晶振,进口石英晶振

R1210-37.400-8-F-1010-TR,欧美无源晶振,拉隆晶振,进口石英晶振，四脚贴片晶振，美国晶振，高精度石英晶振，SMD晶体，无源石英晶振，编码为：R1210-37.400-8-F-1010-TR，频率：37.4 MHz，频率稳定为：±10ppm，频率公差为：±10ppm，负载电容为：8 PF，工作温度范围：-10℃至+60℃，晶振体积尺寸为：1.2x1.0mm，超小体积石英晶振，RALTRON无源晶振，高品质石英晶体谐振器，进口贴片晶振，拉隆无源谐振器，音叉谐振器，小型贴片石英晶振，该产品外观尺寸具有薄型表面贴片型石英晶体谐振器，特别适用于智能手机晶振，无线蓝牙晶振和平板电脑晶振等电子数码产品。

R1210-37.400-8-F-1010-TR,欧美无源晶振,拉隆晶振,进口石英晶振，四脚贴片晶振，美国晶振，高精度石英晶振，SMD晶体，无源石英晶振，编码为：R1210-37.400-8-F-1010-TR，频率：37.4 MHz，频率稳定为：±10ppm，频率公差为：±10ppm，负载电容为：8 PF，工作温度范围：-10℃至+60℃，晶振体积尺寸为：1.2x1.0mm，超小体积石英晶振，RALTRON无源晶振，高品质石英晶体谐振器，进口贴片晶振，拉隆无源谐振器，音叉谐振器，小型贴片石英晶振，该产品外观尺寸具有薄型表面贴片型石英晶体谐振器，特别适用于智能手机晶振，无线蓝牙晶振和平板电脑晶振等电子数码产品。

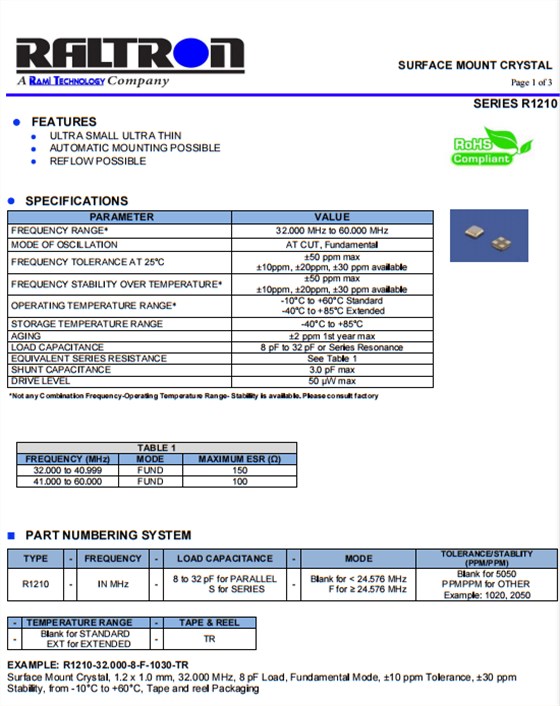

R1210-37.400-8-F-1010-TR,欧美无源晶振,拉隆晶振,进口石英晶振，参数表

编码	品牌	型号	频率	频率稳定	频率公差	负载电容	工作温度	尺寸
R1210-37.400-8-F-1010-TR	拉隆晶体	R1210	37.4 MHz	±10ppm	±10ppm	8pF	-10°C ~ 60°C	1.20mm x 1.00mm

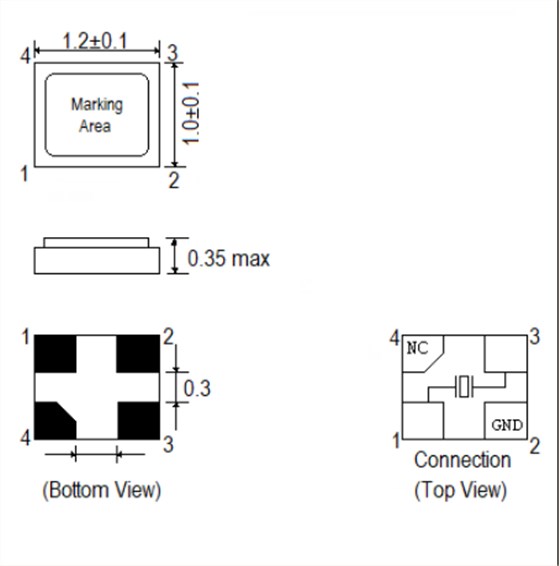

R1210-37.400-8-F-1010-TR,欧美无源晶振,拉隆晶振,进口石英晶振，尺寸图

编码	品牌	型号	频率	频率稳定	频率公差	负载电容	工作温度
R1210-37.400-8-F-1010-TR	拉隆晶振	R1210	37.4 MHz	±10ppm	±10ppm	8pF	-10°C ~ 60°C
R1210-32.000-5-F-0720-TR	拉隆晶振	R1210	32 MHz	±20ppm	±7ppm	5pF	-10°C ~ 60°C
R1210-38.400-10-F-2020-TR	拉隆晶振	R1210	38.4 MHz	±20ppm	±20ppm	10pF	-10°C ~ 60°C
R1210-48.000-5-F-0720-TR	拉隆晶振	R1210	48 MHz	±20ppm	±7ppm	5pF	-10°C ~ 60°C
R1210-52.000-5-F-0710-TR	拉隆晶振	R1210	52 MHz	±10ppm	±7ppm	5pF	-10°C ~ 60°C
AS-7.3728-16-EXT	拉隆晶振	AS	7.3728 MHz	±50ppm	±30ppm	16pF	-40°C ~ 85°C
AS-12.000-20	拉隆晶振	AS	12 MHz	±50ppm	±30ppm	20pF	-20°C ~ 70°C
AS-16.000-18	拉隆晶振	AS	16 MHz	±50ppm	±30ppm	18pF	-20°C ~ 70°C
A-1.8432-18	拉隆晶振	A	1.8432 MHz	±50ppm	±30ppm	18pF	-
H130B-12.000-12-3030-EXT-TR	拉隆晶振	H130B	12 MHz	±30ppm	±30ppm	12pF	-40°C ~ 85°C
AS-4.000-16-EXT-SMD-TR	拉隆晶振	AS-SMD	4 MHz	±50ppm	±30ppm	16pF	-40°C ~ 85°C
AS-20.000-20-SMD-TR	拉隆晶振	AS-SMD	20 MHz	±50ppm	±30ppm	20pF	-20°C ~ 70°C
AS-9.8304-18-SMD-TR	拉隆晶振	AS-SMD	9.8304 MHz	±50ppm	±30ppm	18pF	-20°C ~ 70°C
AS-18.432-20-SMD-TR	拉隆晶振	AS-SMD	18.432 MHz	±50ppm	±30ppm	20pF	-20°C ~ 70°C
RH100-26.000-16-F-1015-EXT-TR	拉隆晶振	RH100	26 MHz	±15ppm	±10ppm	16pF	-40°C ~ 85°C
RH100-14.31818-18-3030-EXT-TR	拉隆晶振	RH100	14.31818 MHz	±30ppm	±30ppm	18pF	-40°C ~ 85°C
RH100-16.384-16-2020-EXT-TR-NS1	拉隆晶振	RH100	16.384 MHz	±20ppm	±20ppm	16pF	-40°C ~ 85°C
RH100-26.000-10-F-1015-X-T-NS6	拉隆晶振	RH100	26 MHz	±15ppm	±10ppm	10pF	-40°C ~ 85°C
RH100-20.000-18-2020-TR	拉隆晶振	RH100	20 MHz	±20ppm	±20ppm	18pF	-20°C ~ 70°C
RH100-26.000-15-F-1015-TR	拉隆晶振	RH100	26 MHz	±15ppm	±10ppm	15pF	-20°C ~ 70°C
RH100-16.000-20-5050-TR	拉隆晶振	RH100	16 MHz	±50ppm	±50ppm	20pF	-20°C ~ 70°C
RH100-27.000-18-F-2020-TR	拉隆晶振	RH100	27 MHz	±20ppm	±20ppm	18pF	-20°C ~ 70°C
RH100-50.000-8-F-2030-EXT-TR	拉隆晶振	RH100	50 MHz	±30ppm	±20ppm	8pF	-40°C ~ 85°C
RH100-32.000-18-F-1010-TR	拉隆晶振	RH100	32 MHz	±10ppm	±10ppm	18pF	-20°C ~ 70°C
R2520-40.000-12-F-1010-TR	拉隆晶振	R2520	40 MHz	±10ppm	±10ppm	12pF	-10°C ~ 60°C
H130B-27.000-20-F-TR	拉隆晶振	H130B	27 MHz	±50ppm	±50ppm	20pF	-20°C ~ 70°C
H130B-12.288-12-EXT-TR	拉隆晶振	H130B	12.288 MHz	±50ppm	±50ppm	12pF	-40°C ~ 85°C
R2520-40.000-10-F-1010-EXT-TR	拉隆晶振	R2520	40 MHz	±10ppm	±10ppm	10pF	-40°C ~ 85°C
R2520-16.000-9-1010-EXT-TR	拉隆晶振	R2520	16 MHz	±10ppm	±10ppm	9pF	-40°C ~ 85°C
R2016-27.000-8-F-1010-EXT-TR	拉隆晶振	R2016	27 MHz	±10ppm	±10ppm	8pF	-40°C ~ 85°C
H10S-26.000-18-F-1030-EXT-TR	拉隆晶振	H10S	26 MHz	±30ppm	±10ppm	18pF	-40°C ~ 85°C
H130B-40.000-18-F-1015-EXT-TR	拉隆晶振	H130B	40 MHz	±15ppm	±10ppm	18pF	-40°C ~ 85°C
H130B-20.000-20-2050-EXT-TR	拉隆晶振	H130B	20 MHz	±50ppm	±20ppm	20pF	-40°C ~ 85°C
A-3.579545-18	拉隆晶振	A	3.579545 MHz	±100ppm	±50ppm	18pF	-20°C ~ 70°C
H130B-11.0592-22-3030-EXT-TR	拉隆晶振	H130B	11.0592 MHz	±30ppm	±30ppm	22pF	-40°C ~ 85°C
H130B-20.000-12-3030-TR	拉隆晶振	H130B	20 MHz	±30ppm	±30ppm	12pF	-20°C ~ 70°C
R2016-25.000-20-F-1515-EXT-TR	拉隆晶振	R2016	25 MHz	±15ppm	±15ppm	20pF	-40°C ~ 85°C
H130A-25.000-18-F-3030-TR	拉隆晶振	H130A	25 MHz	±30ppm	±30ppm	18pF	-20°C ~ 70°C
H10S-27.120-18-F-3050-TR	拉隆晶振	H10S	27.12 MHz	±50ppm	±30ppm	18pF	-10°C ~ 60°C
