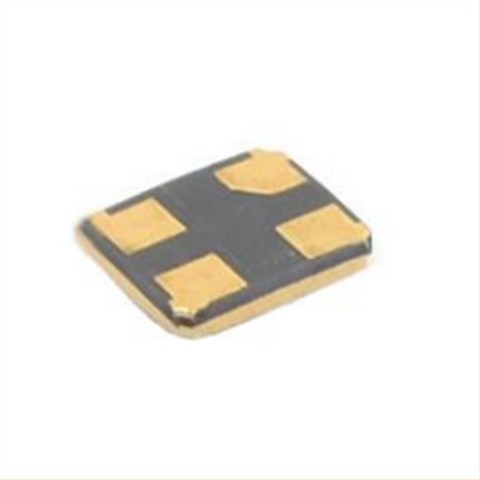

小型石英晶振,R2016-26.000-6-F-1010-TR,拉隆贴片晶体,2016mm晶振

小型石英晶振,R2016-26.000-6-F-1010-TR,拉隆贴片晶体,2016mm晶振，进口石英贴片晶振，拉隆无源晶振，欧美无源石英晶体，贴片晶振，编码为：R2016-26.000-6-F-1010-TR，频率：26 MHz，频率稳定为：±10ppm，频率公差为：±10ppm，负载电容为：6 PF，工作温度范围：-10℃至+60℃，晶振体积尺寸为：2.0x1.6mm，高品质石英晶振，R2016系列谐振器，超小体积石英晶体谐振器，小体积贴片2016mm晶振，外观小型，薄型，轻型，表面贴片型晶体谐振器，具备优良的耐环境特性，主要适用于移动网络晶振，网络通信晶振等移动通信领域。

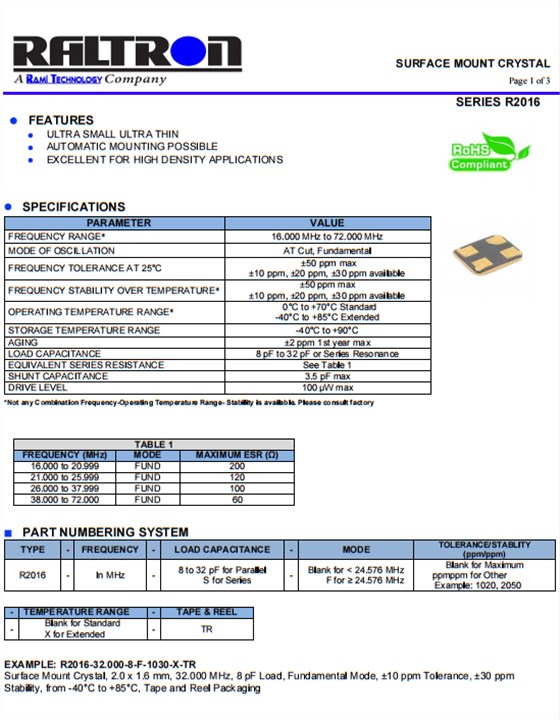

Japan2 小型石英晶振,R2016-26.000-6-F-1010-TR,拉隆贴片晶体,2016mm晶振，参数表

编码	品牌	型号	频率	频率稳定	频率公差	负载电容	工作温度	尺寸
R2016-26.000-6-F-1010-TR	Raltron Electronics	R2016	26 MHz	±10ppm	±10ppm	6pF	-10°C ~ 60°C	2.00mm x 1.60mm

Japan3

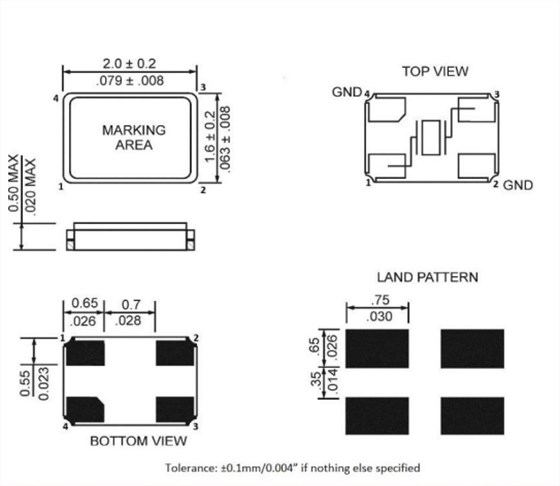

小型石英晶振,R2016-26.000-6-F-1010-TR,拉隆贴片晶体,2016mm晶振，尺寸图

R2016-3

编码	品牌	型号	频率	频率稳定	频率公差	负载电容	工作温度
R2016-26.000-6-F-1010-TR	Raltron Crystal	R2016	26 MHz	±10ppm	±10ppm	6pF	-10°C ~ 60°C
R2520-16.000-10-1020-EXT-TR	Raltron Crystal	R2520	16 MHz	±20ppm	±10ppm	10pF	-40°C ~ 85°C
R2520-16.000-8-1525-EXT-TR	Raltron Crystal	R2520	16 MHz	±15ppm	±15ppm	8pF	-40°C ~ 85°C
R2520-32.000-9-F-1020-EXT-TR	Raltron Crystal	R2520	32 MHz	±20ppm	±10ppm	9pF	-40°C ~ 85°C
R2520-27.120-10-F-1515-TR-NS1	Raltron Crystal	R2520	27.12 MHz	±15ppm	±15ppm	10pF	-10°C ~ 60°C
R2520-12.000-10-3030-TR	Raltron Crystal	R2520	12 MHz	±30ppm	±30ppm	10pF	-10°C ~ 60°C
R2520-26.000-18-F-1010-EXT-TR	Raltron Crystal	R2520	26 MHz	±10ppm	±10ppm	18pF	-40°C ~ 85°C
R2520-30.000-10-F-1010-TR-NS3	Raltron Crystal	R2520	30 MHz	±10ppm	±10ppm	10pF	-10°C ~ 60°C
R1612-37.400-16-F-1010-TR-NS2	Raltron Crystal	R1612	37.4 MHz	±10ppm	±10ppm	16pF	-30°C ~ 60°C
RT3215-32.768-12.5-TR-10PPM	Raltron Crystal	RT3215	32.768 kHz	-	±10ppm	12.5pF	-40°C ~ 85°C
R2016-50.000-8-F-1020-TR	Raltron Crystal	R2016	50 MHz	±20ppm	±10ppm	8pF	0°C ~ 70°C
R2016-24.000-7-1015-TR-NS1	Raltron Crystal	R2016	24 MHz	±15ppm	±10ppm	7pF	-10°C ~ 60°C
R2016-25.000-18-F-3030-TR-NS1	Raltron Crystal	R2016	25 MHz	±30ppm	±30ppm	18pF	-10°C ~ 60°C
R2016-27.000-10-F-2020-EXT-TR	Raltron Crystal	R2016	27 MHz	±20ppm	±20ppm	10pF	-40°C ~ 85°C
R2016-20.000-10-3030-EXT-TR	Raltron Crystal	R2016	20 MHz	±30ppm	±30ppm	10pF	-40°C ~ 85°C
R2016-38.400-8-F-1012-EXT-TR	Raltron Crystal	R2016	38.4 MHz	±12ppm	±10ppm	8pF	-40°C ~ 85°C
R2016-32.000-9-F-1025-EXT-TR	Raltron Crystal	R2016	32 MHz	±25ppm	±10ppm	9pF	-40°C ~ 85°C
R2016-40.000-8-F-1515-TR-NS1	Raltron Crystal	R2016	40 MHz	±15ppm	±15ppm	8pF	-10°C ~ 60°C
R2016-24.000-6-1015-TR-NS1	Raltron Crystal	R2016	24 MHz	±15ppm	±10ppm	6pF	-10°C ~ 60°C
R2016-24.000-18-3030-EXT-TR	Raltron Crystal	R2016	24 MHz	±30ppm	±30ppm	18pF	-40°C ~ 85°C
R2016-50.000-8-F-1020-EXT-TR	Raltron Crystal	R2016	50 MHz	±20ppm	±10ppm	8pF	-40°C ~ 85°C
R2016-48.000-7-F-0715-TR-NS1	Raltron Crystal	R2016	48 MHz	±15ppm	±7ppm	7pF	-10°C ~ 60°C
R1612-26.000-10-F-1010-TR-NS1	Raltron Crystal	R1612	26 MHz	±10ppm	±10ppm	10pF	-10°C ~ 60°C
R1612-26.000-8-F-2020-EXT-TR	Raltron Crystal	R1612	26 MHz	±20ppm	±20ppm	8pF	-40°C ~ 85°C
R1612-27.000-8-F-1530-TR	Raltron Crystal	R1612	27 MHz	±30ppm	±15ppm	8pF	-10°C ~ 60°C
R1612-38.400-10-F-1010-TR-NS1	Raltron Crystal	R1612	38.4 MHz	±10ppm	±10ppm	10pF	-10°C ~ 60°C
R1612-38.400-10-F-1015-TR-NS1	Raltron Crystal	R1612	38.4 MHz	±15ppm	±10ppm	10pF	-10°C ~ 60°C
R1612-40.000-8-F-2020-TR-NS1	Raltron Crystal	R1612	40 MHz	±20ppm	±20ppm	8pF	-10°C ~ 60°C
R1612-48.000-10-F-1010-TR	Raltron Crystal	R1612	48 MHz	±10ppm	±10ppm	10pF	-20°C ~ 70°C
R2016-32.000-16-F-1010-TR	Raltron Crystal	R2016	32 MHz	±10ppm	±10ppm	16pF	-10°C ~ 60°C
R2016-26.000-10-F-1010-TR	Raltron Crystal	R2016	26 MHz	±10ppm	±10ppm	10pF	-10°C ~ 60°C
R2016-30.000-8-F-1010-TR-NS1	Raltron Crystal	R2016	30 MHz	±10ppm	±10ppm	8pF	-10°C ~ 60°C
R2016-48.000-18-F-1010-TR	Raltron Crystal	R2016	48 MHz	±10ppm	±10ppm	18pF	-10°C ~ 60°C
R2016-24.000-8-1010-TR-NS1	Raltron Crystal	R2016	24 MHz	±10ppm	±10ppm	8pF	-10°C ~ 60°C
R2016-26.000-8-F-1010-TR-NS1	Raltron Crystal	R2016	26 MHz	±10ppm	±10ppm	8pF	-10°C ~ 60°C
R2016-40.000-6-F-1010-TR-NS1	Raltron Crystal	R2016	40 MHz	±10ppm	±10ppm	6pF	-10°C ~ 60°C
H130B-12.000-16-2525-EXT-TR	Raltron Crystal	H130B	12 MHz	±25ppm	±25ppm	16pF	-40°C ~ 85°C
