SMD贴片晶振,RALTRON晶振,无源晶体,R2520-32.000-8-F-1030-EXT-TR

频率：32MHz

尺寸：2.5x2.0mm

SMD贴片晶振,RALTRON晶振,无源晶体,R2520-32.000-8-F-1030-EXT-TR，石英晶体谐振器，拉隆无源贴片晶振，编码为：R2520-32.000-8-F-1030-EXT-TR，频率：32MHz，频率稳定为：±30ppm，频率公差为：±10ppm，负载电容为：8PF，工作温度范围：-40℃至+85℃，晶振体积尺寸为：2.5x2.0mm，四脚贴片晶振，超小型石英晶振，高精度石英晶体，美国进口贴片晶振，无源贴片晶振，进口贴片晶振，2520mm石英晶振，小型贴片石英晶振，晶振本身轻薄小型，具有优良的耐环境特性，耐热性等特点，特别适用于有小型化要求的市场领域，比如无线蓝牙,智能手表等消费电子数码产品。

订购热线：0755-27838351

SMD贴片晶振,RALTRON晶振,无源晶体,R2520-32.000-8-F-1030-EXT-TR，石英晶体谐振器，拉隆无源贴片晶振，编码为：R2520-32.000-8-F-1030-EXT-TR，频率：32MHz，频率稳定为：±30ppm，频率公差为：±10ppm，负载电容为：8PF，工作温度范围：-40℃至+85℃，晶振体积尺寸为：2.5x2.0mm，四脚贴片晶振，超小型石英晶振，高精度石英晶体，美国进口贴片晶振，无源贴片晶振，进口贴片晶振，2520mm石英晶振，小型贴片石英晶振，晶振本身轻薄小型，具有优良的耐环境特性，耐热性等特点，特别适用于有小型化要求的市场领域，比如无线蓝牙,智能手表等消费电子数码产品。

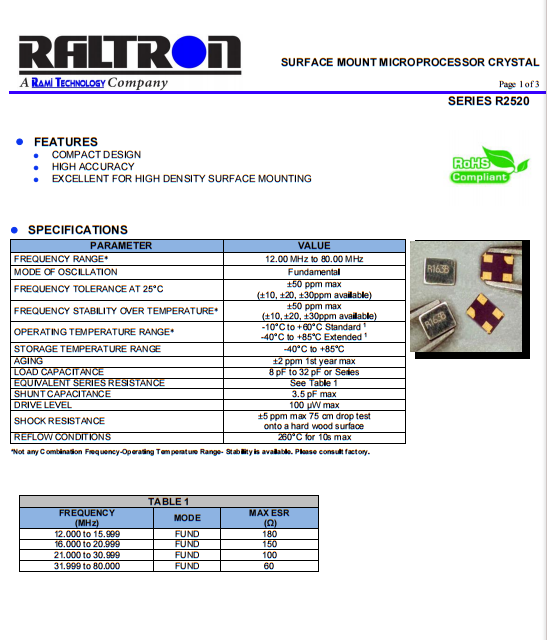

Japan2 SMD贴片晶振,RALTRON晶振,无源晶体,R2520-32.000-8-F-1030-EXT-TR，参数表

编码	品牌	型号	频率	频率稳定	频率公差	负载电容	工作温度	尺寸
R2520-32.000-8-F-1030-EXT-TR	Raltron Crystal	R2520	32 MHz	±30ppm	±10ppm	8pF	-40°C ~ 85°C	2.50mm x 2.00mm

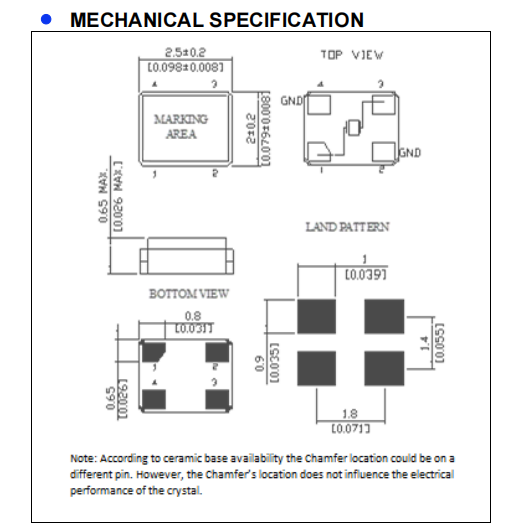

Japan3 SMD贴片晶振,RALTRON晶振,无源晶体,R2520-32.000-8-F-1030-EXT-TR，尺寸图

R2520-3

编码	品牌	型号	频率	频率稳定	频率公差	负载电容	工作温度
R2520-32.000-8-F-1030-EXT-TR	拉隆晶振	R2520	32 MHz	±30ppm	±10ppm	8pF	-40°C ~ 85°C
AS-3.579545-18	拉隆晶振	AS	3.579545 MHz	±50ppm	±30ppm	18pF	-20°C ~ 70°C
AS-4.000-18	拉隆晶振	AS	4 MHz	±50ppm	±30ppm	18pF	-20°C ~ 70°C
AS-20.000-20	拉隆晶振	AS	20 MHz	±50ppm	±30ppm	20pF	-20°C ~ 70°C
AS-11.0592-18-EXT	拉隆晶振	AS	11.0592 MHz	±50ppm	±30ppm	18pF	-40°C ~ 85°C
AS-16.000-20-EXT	拉隆晶振	AS	16 MHz	±50ppm	±30ppm	20pF	-40°C ~ 85°C
AS-27.000-20-F	拉隆晶振	AS	27 MHz	±50ppm	±30ppm	20pF	-20°C ~ 70°C
AS-25.000-18-F-EXT	拉隆晶振	AS	25 MHz	±50ppm	±30ppm	18pF	-40°C ~ 85°C
R2520-12.000-8-1030-EXT-TR	拉隆晶振	R2520	12 MHz	±30ppm	±10ppm	8pF	-40°C ~ 85°C
RT3215-32.768-9-TR	拉隆晶振	RT3215	32.768 kHz	-	±20ppm	9pF	-40°C ~ 85°C
RSM200S-32.768-6-TR	拉隆晶振	RSM200S	32.768 kHz	-	±20ppm	6pF	-40°C ~ 85°C
H130B-16.000-18-3030-EXT-TR	拉隆晶振	H130B	16 MHz	±30ppm	±30ppm	18pF	-40°C ~ 85°C
H130B-12.000-18-3030-TR	拉隆晶振	H130B	12 MHz	±30ppm	±30ppm	18pF	-20°C ~ 70°C
H130B-24.000-18-3030-EXT-TR	拉隆晶振	H130B	24 MHz	±30ppm	±30ppm	18pF	-40°C ~ 85°C
RSE-32.768-12.5-H14-TR	拉隆晶振	RSE H14	32.768 kHz	-	±50ppm	12.5pF	-20°C ~ 70°C
RH100-8.000-10-1010-EXT-TR	拉隆晶振	RH100	8 MHz	±10ppm	±10ppm	10pF	-40°C ~ 85°C
H130A-8.000-8-2030-TR	拉隆晶振	H130A	8 MHz	±30ppm	±20ppm	8pF	-20°C ~ 70°C
RH100-8.000-8-2020-TR	拉隆晶振	RH100	8 MHz	±20ppm	±20ppm	8pF	-20°C ~ 70°C
RT2012-32.768-6-TR	拉隆晶振	RT2012	32.768 kHz	-	±50ppm	6pF	-40°C ~ 85°C
RH100-8.000-16-3030-TR-NS1	拉隆晶振	RH100	8 MHz	±30ppm	±30ppm	16pF	-20°C ~ 70°C
H13-8.000-18-3030-EXT-TR	拉隆晶振	H13	8 MHz	±30ppm	±30ppm	18pF	-40°C ~ 85°C
AS-4.9152-18-EXT-SMD-TR	拉隆晶振	AS-SMD	4.9152 MHz	±50ppm	±30ppm	18pF	-40°C ~ 85°C
AS-10.000-20-3030-SMD-TR	拉隆晶振	AS-SMD	10 MHz	±30ppm	±30ppm	20pF	-20°C ~ 70°C
AS-30.000-10-F-2020-EXT-SMD-TR	拉隆晶振	AS-SMD	30 MHz	±20ppm	±20ppm	10pF	-40°C ~ 85°C
AS-4.000-18-SMD-TR	拉隆晶振	AS-SMD	4 MHz	±50ppm	±30ppm	18pF	-20°C ~ 70°C
AS-3.579545-18-SMD-TR	拉隆晶振	AS-SMD	3.579545 MHz	±50ppm	±30ppm	18pF	-20°C ~ 70°C
AS-13.560-20-SMD-TR	拉隆晶振	AS-SMD	13.56 MHz	±50ppm	±30ppm	20pF	-20°C ~ 70°C
AS-20.000-16-SMD-TR	拉隆晶振	AS-SMD	20 MHz	±50ppm	±30ppm	16pF	-20°C ~ 70°C
AS-7.3728-20-EXT-SMD-TR	拉隆晶振	AS-SMD	7.3728 MHz	±50ppm	±30ppm	20pF	-40°C ~ 85°C
AS-7.3728-18-SMD-TR	拉隆晶振	AS-SMD	7.3728 MHz	±50ppm	±30ppm	18pF	-20°C ~ 70°C
