美国晶振,RSM200S-32.768-12.5-TR,拉隆晶振,无源晶体谐振器

频率：32.768 kHz

尺寸：8.0x3.8mm

美国晶振,RSM200S-32.768-12.5-TR,拉隆晶振,无源晶体谐振器，进口无源晶振，RALTRON电子晶振，无源晶体，宽温晶振，编码为：RSM200S-32.768-12.5-TR，频率：32.768 kHz，频率公差为：±20ppm，负载电容为：12.5PF，工作温度范围：-40℃至+85℃，晶振体积尺寸为：8.0x3.8mm，陶瓷晶体，陶瓷谐振器，高性能晶振，美国进口无源晶振，32.768K系列晶振，该产品具有超小型,薄型,质地轻，优良的耐热性,耐环境特性等特点，在办公自动化，家电领域，移动通信等领域可发挥优良的电气特性，符合无铅标准，满足无铅焊接的回流温度曲线要求。

订购热线：0755-27838351

美国晶振,RSM200S-32.768-12.5-TR,拉隆晶振,无源晶体谐振器，进口无源晶振，RALTRON电子晶振，无源晶体，宽温晶振，编码为：RSM200S-32.768-12.5-TR，频率：32.768 kHz，频率公差为：±20ppm，负载电容为：12.5PF，工作温度范围：-40℃至+85℃，晶振体积尺寸为：8.0x3.8mm，陶瓷晶体，陶瓷谐振器，高性能晶振，美国进口无源晶振，32.768K系列晶振，该产品具有超小型,薄型,质地轻，优良的耐热性,耐环境特性等特点，在办公自动化，家电领域，移动通信等领域可发挥优良的电气特性，符合无铅标准，满足无铅焊接的回流温度曲线要求。

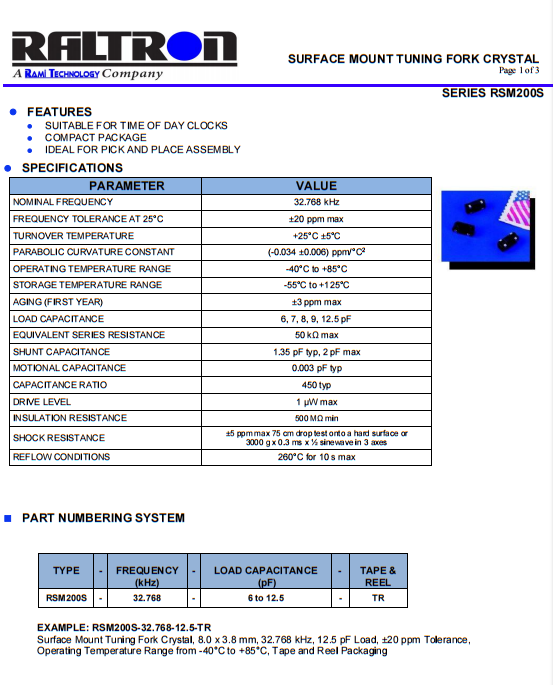

Japan2 美国晶振,RSM200S-32.768-12.5-TR,拉隆晶振,无源晶体谐振器，参数表

编码	品牌	型号	频率	频率公差	负载电容	工作温度	尺寸
RSM200S-32.768-12.5-TR	Raltron拉隆	RSM200S	32.768 kHz	±20ppm	12.5pF	-40°C ~ 85°C	8.00mm x 3.80mm

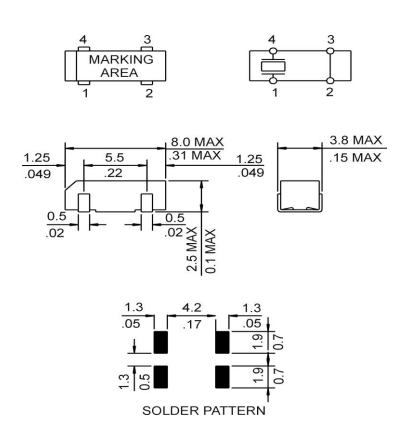

Japan3 美国晶振,RSM200S-32.768-12.5-TR,拉隆晶振,无源晶体谐振器，尺寸图

RSM200S-3

编码	品牌	型号	频率	频率公差	负载电容	工作温度
RSM200S-32.768-12.5-TR	Raltron Crystal	RSM200S	32.768 kHz	±20ppm	12.5pF	-40°C ~ 85°C
H130B-8.000-18-3030-EXT-TR	Raltron Crystal	H130B	8 MHz	±30ppm	18pF	-40°C ~ 85°C
RSM200S-32.768-12.5-10PPM-NPB	Raltron Crystal	RSM200S	32.768 kHz	±10ppm	12.5pF	-40°C ~ 85°C
AS-24.000-18-SMD-TR	Raltron Crystal	AS-SMD	24 MHz	±30ppm	18pF	-20°C ~ 70°C
AS-6.000-12-2020-EXT-SMD-TR	Raltron Crystal	AS-SMD	6 MHz	±20ppm	12pF	-40°C ~ 85°C
RH100-25.000-10-F-3030-EXT-TR	Raltron Crystal	RH100	25 MHz	±30ppm	10pF	-40°C ~ 85°C
RH100-12.000-18-2020-EXT-TR	Raltron Crystal	RH100	12 MHz	±20ppm	18pF	-40°C ~ 85°C
RH100-25.000-13-F-0715-EXT-TR-NS1	Raltron Crystal	RH100	25 MHz	±7ppm	13pF	-40°C ~ 85°C
AS-16.000-18-SMD-TR	Raltron Crystal	AS-SMD	16 MHz	±30ppm	18pF	-20°C ~ 70°C
AS-11.0592-18-SMD-TR	Raltron Crystal	AS-SMD	11.0592 MHz	±30ppm	18pF	-20°C ~ 70°C
RH100-16.000-16-3030-EXT-TR	Raltron Crystal	RH100	16 MHz	±30ppm	16pF	-40°C ~ 85°C
RH100-24.000-9-1015-EXT-TR	Raltron Crystal	RH100	24 MHz	±10ppm	9pF	-40°C ~ 85°C
RH100-32.000-16-F-1015-EXT-TR	Raltron Crystal	RH100	32 MHz	±10ppm	16pF	-40°C ~ 85°C
RH100-40.000-9-F-1010-EXT-TR	Raltron Crystal	RH100	40 MHz	±10ppm	9pF	-40°C ~ 85°C
RH100-48.000-8-F-1015-EXT-TR	Raltron Crystal	RH100	48 MHz	±10ppm	8pF	-40°C ~ 85°C
RH100-12.000-20-2030-TR	Raltron Crystal	RH100	12 MHz	±20ppm	20pF	-20°C ~ 70°C
RH100-11.0592-18-3030-EXT-TR	Raltron Crystal	RH100	11.0592 MHz	±30ppm	18pF	-40°C ~ 85°C
RH100-25.000-18-F-TR	Raltron Crystal	RH100	25 MHz	±100ppm	18pF	-20°C ~ 70°C
RH100-26.000-10-F-1010-EXT-TR	Raltron Crystal	RH100	26 MHz	±10ppm	10pF	-40°C ~ 85°C
RH100-12.000-12-1010-X-TR-NS2	Raltron Crystal	RH100	12 MHz	±10ppm	12pF	-30°C ~ 85°C
RH100-25.000-18-F-2030-EXT-TR	Raltron Crystal	RH100	25 MHz	±20ppm	18pF	-40°C ~ 85°C
RH100-48.000-10-F-1015-EXT-TR	Raltron Crystal	RH100	48 MHz	±10ppm	10pF	-40°C ~ 85°C
R38-32.768-12.5	Raltron Crystal	R38	32.768 kHz	±20ppm	12.5pF	-20°C ~ 70°C
R26-32.768-12.5	Raltron Crystal	R26	32.768 kHz	±20ppm	12.5pF	-40°C ~ 85°C
RH100-12.000-20-3030-EXT-TR	Raltron Crystal	RH100	12 MHz	±30ppm	20pF	-40°C ~ 85°C
RH100-12.000-18-2020-TR	Raltron Crystal	RH100	12 MHz	±20ppm	18pF	-20°C ~ 70°C
RH100-24.000-18-2030-EXT-TR	Raltron Crystal	RH100	24 MHz	±20ppm	18pF	-40°C ~ 85°C
RH100-12.000-12-1010-EXT-TR	Raltron Crystal	RH100	12 MHz	±10ppm	12pF	-40°C ~ 85°C
RH100-12.000-9-1015-TR-NS1	Raltron Crystal	RH100	12 MHz	±10ppm	9pF	-20°C ~ 70°C
RH100-25.000-16-F-2020-EXT-TR	Raltron Crystal	RH100	25 MHz	±20ppm	16pF	-40°C ~ 85°C
RH100-24.000-8-1010-EXT-TR	Raltron Crystal	RH100	24 MHz	±10ppm	8pF	-40°C ~ 85°C
RH100-25.000-18-F-1010-TR	Raltron Crystal	RH100	25 MHz	±10ppm	18pF	-20°C ~ 70°C
RH100-16.000-8-1010-TR	Raltron Crystal	RH100	16 MHz	±10ppm	8pF	-20°C ~ 70°C
RH100-25.000-10-F-1010-EXT-TR	Raltron Crystal	RH100	25 MHz	±10ppm	10pF	-40°C ~ 85°C
R2520-32.000-8-F-1030-EXT-TR	Raltron Crystal	R2520	32 MHz	±10ppm	8pF	-40°C ~ 85°C
