R38-32.768-12.5,32.768K,美国拉隆无源晶振,插件石英晶振

频率:32.768 kHz

尺寸:3.2mm

R38-32.768-12.5,32.768K,美国拉隆无源晶振,插件石英晶振,无源晶体谐振器,两脚插件晶振,进口石英谐振器,石英晶体,编码为:R38-32.768-12.5,频率:32.768 kHz,频率公差为:±20ppm,负载电容为:12.5PF,工作温度范围:-20℃至+70℃,晶振体积尺寸为:3.2mm,拉隆无源晶体,美国进口石英晶振,该产品为两脚金属面石英晶振,表面金属封装,是具备高可靠的环保性能晶体,产品小型,薄型,轻型,具备优良的耐环境特性及高耐热性,市场上经常应用于USB接口晶振,智能水表晶振和U盘晶振等产品。
订购热线:0755-27838351
QQ咨询 点击这里给我发消息

Japan1

R38-32.768-12.5,32.768K,美国拉隆无源晶振,插件石英晶振,无源晶体谐振器,两脚插件晶振,进口石英谐振器,石英晶体,编码为:R38-32.768-12.5,频率:32.768 kHz,频率公差为:±20ppm,负载电容为:12.5PF,工作温度范围:-20℃至+70℃,晶振体积尺寸为:3.2mm,拉隆无源晶体,美国进口石英晶振,该产品为两脚金属面石英晶振,表面金属封装,是具备高可靠的环保性能晶体,产品小型,薄型,轻型,具备优良的耐环境特性及高耐热性,市场上经常应用于USB接口晶振,智能水表晶振和U盘晶振等产品。

Japan2R38-32.768-12.5,32.768K,美国拉隆无源晶振,插件石英晶振,参数表

编码 品牌 型号 频率 频率公差 负载电容 工作温度 尺寸
R38-32.768-12.5 拉隆晶振 R38 32.768 kHz ±20ppm 12.5pF -20°C ~ 70°C 3.20mm


Japan3

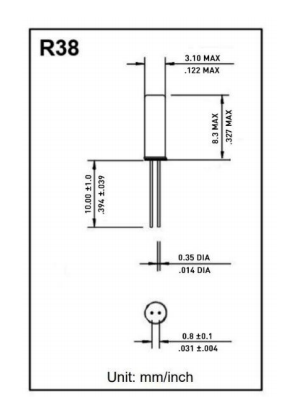

R38-32.768-12.5,32.768K,美国拉隆无源晶振,插件石英晶振,尺寸图


R38-3

R38

编码 品牌 型号 频率 频率公差 负载电容 工作温度
R38-32.768-12.5 Raltron Crystal R38 32.768 kHz ±20ppm 12.5pF -20°C ~ 70°C
R26-32.768-12.5 Raltron Crystal R26 32.768 kHz ±20ppm 12.5pF -40°C ~ 85°C
RH100-12.000-20-3030-EXT-TR Raltron Crystal RH100 12 MHz ±30ppm 20pF -40°C ~ 85°C
RH100-12.000-18-2020-TR Raltron Crystal RH100 12 MHz ±20ppm 18pF -20°C ~ 70°C
RH100-24.000-18-2030-EXT-TR Raltron Crystal RH100 24 MHz ±20ppm 18pF -40°C ~ 85°C
RH100-12.000-12-1010-EXT-TR Raltron Crystal RH100 12 MHz ±10ppm 12pF -40°C ~ 85°C
RH100-12.000-9-1015-TR-NS1 Raltron Crystal RH100 12 MHz ±10ppm 9pF -20°C ~ 70°C
RH100-25.000-16-F-2020-EXT-TR Raltron Crystal RH100 25 MHz ±20ppm 16pF -40°C ~ 85°C
RH100-24.000-8-1010-EXT-TR Raltron Crystal RH100 24 MHz ±10ppm 8pF -40°C ~ 85°C
RH100-25.000-18-F-1010-TR Raltron Crystal RH100 25 MHz ±10ppm 18pF -20°C ~ 70°C
RH100-16.000-8-1010-TR Raltron Crystal RH100 16 MHz ±10ppm 8pF -20°C ~ 70°C
RH100-25.000-10-F-1010-EXT-TR Raltron Crystal RH100 25 MHz ±10ppm 10pF -40°C ~ 85°C
R2520-32.000-8-F-1030-EXT-TR Raltron Crystal R2520 32 MHz ±10ppm 8pF -40°C ~ 85°C
AS-3.579545-18 Raltron Crystal AS 3.579545 MHz ±30ppm 18pF -20°C ~ 70°C
AS-4.000-18 Raltron Crystal AS 4 MHz ±30ppm 18pF -20°C ~ 70°C
AS-20.000-20 Raltron Crystal AS 20 MHz ±30ppm 20pF -20°C ~ 70°C
AS-11.0592-18-EXT Raltron Crystal AS 11.0592 MHz ±30ppm 18pF -40°C ~ 85°C
AS-16.000-20-EXT Raltron Crystal AS 16 MHz ±30ppm 20pF -40°C ~ 85°C
AS-27.000-20-F Raltron Crystal AS 27 MHz ±30ppm 20pF -20°C ~ 70°C
AS-25.000-18-F-EXT Raltron Crystal AS 25 MHz ±30ppm 18pF -40°C ~ 85°C
R2520-12.000-8-1030-EXT-TR Raltron Crystal R2520 12 MHz ±10ppm 8pF -40°C ~ 85°C
RT3215-32.768-9-TR Raltron Crystal RT3215 32.768 kHz ±20ppm 9pF -40°C ~ 85°C
RSM200S-32.768-6-TR Raltron Crystal RSM200S 32.768 kHz ±20ppm 6pF -40°C ~ 85°C
H130B-16.000-18-3030-EXT-TR Raltron Crystal H130B 16 MHz ±30ppm 18pF -40°C ~ 85°C
H130B-12.000-18-3030-TR Raltron Crystal H130B 12 MHz ±30ppm 18pF -20°C ~ 70°C
H130B-24.000-18-3030-EXT-TR Raltron Crystal H130B 24 MHz ±30ppm 18pF -40°C ~ 85°C
RSE-32.768-12.5-H14-TR Raltron Crystal RSE H14 32.768 kHz ±50ppm 12.5pF -20°C ~ 70°C
RH100-8.000-10-1010-EXT-TR Raltron Crystal RH100 8 MHz ±10ppm 10pF -40°C ~ 85°C
H130A-8.000-8-2030-TR Raltron Crystal H130A 8 MHz ±20ppm 8pF -20°C ~ 70°C
RH100-8.000-8-2020-TR Raltron Crystal RH100 8 MHz ±20ppm 8pF -20°C ~ 70°C
RT2012-32.768-6-TR Raltron Crystal RT2012 32.768 kHz ±50ppm 6pF -40°C ~ 85°C
RH100-8.000-16-3030-TR-NS1 Raltron Crystal RH100 8 MHz ±30ppm 16pF -20°C ~ 70°C
H13-8.000-18-3030-EXT-TR Raltron Crystal H13 8 MHz ±30ppm 18pF -40°C ~ 85°C
AS-4.9152-18-EXT-SMD-TR Raltron Crystal AS-SMD 4.9152 MHz ±30ppm 18pF -40°C ~ 85°C
AS-10.000-20-3030-SMD-TR Raltron Crystal AS-SMD 10 MHz ±30ppm 20pF -20°C ~ 70°C
AS-30.000-10-F-2020-EXT-SMD-TR Raltron Crystal AS-SMD 30 MHz ±20ppm 10pF -40°C ~ 85°C
AS-4.000-18-SMD-TR Raltron Crystal AS-SMD 4 MHz ±30ppm 18pF -20°C ~ 70°C
AS-3.579545-18-SMD-TR Raltron Crystal AS-SMD 3.579545 MHz ±30ppm 18pF -20°C ~ 70°C
AS-13.560-20-SMD-TR Raltron Crystal AS-SMD 13.56 MHz ±30ppm 20pF -20°C ~ 70°C
AS-20.000-16-SMD-TR Raltron Crystal AS-SMD 20 MHz ±30ppm 16pF -20°C ~ 70°C
AS-7.3728-20-EXT-SMD-TR Raltron Crystal AS-SMD 7.3728 MHz ±30ppm 20pF -40°C ~ 85°C
AS-7.3728-18-SMD-TR Raltron Crystal AS-SMD 7.3728 MHz ±30ppm 18pF -20°C ~ 70°C
RH100-13.560-10-1020-EXT-TR Raltron Crystal RH100 13.56 MHz ±10ppm 10pF -40°C ~ 85°C
RH100-26.000-18-F-2030-EXT-TR Raltron Crystal RH100 26 MHz ±20ppm 18pF -40°C ~ 85°C
RH100-24.000-9-1010-TR Raltron Crystal RH100 24 MHz ±10ppm 9pF -20°C ~ 70°C
RH100-24.000-8-1530-EXT-TR Raltron Crystal RH100 24 MHz ±15ppm 8pF -40°C ~ 85°C
RH100-10.000-10-5050-TR Raltron Crystal RH100 10 MHz ±50ppm 10pF -20°C ~ 70°C
RH100-10.000-8-2020-TR Raltron Crystal RH100 10 MHz ±20ppm 8pF -20°C ~ 70°C
RH100-24.000-20-3050-EXT-TR Raltron Crystal RH100 24 MHz ±30ppm 20pF -40°C ~ 85°C
RH100-32.000-12-F-3030-TR Raltron Crystal RH100 32 MHz ±30ppm 12pF -20°C ~ 70°C
RH100-50.000-12-F-1010-TR Raltron Crystal RH100 50 MHz ±10ppm 12pF -20°C ~ 70°C
RH100-50.000-10-F-1015-EXT-TR Raltron Crystal RH100 50 MHz ±10ppm 10pF -40°C ~ 85°C
RH100-16.000-9-1010-TR Raltron Crystal RH100 16 MHz ±10ppm 9pF -20°C ~ 70°C
RH100-25.000-6-F-1010-TR Raltron Crystal RH100 25 MHz ±10ppm 6pF -20°C ~ 70°C
RH100-25.000-8-F-1010-TR Raltron Crystal RH100 25 MHz ±10ppm 8pF -20°C ~ 70°C
RH100-26.000-12-F-1010-EXT-TR Raltron Crystal RH100 26 MHz ±10ppm 12pF -40°C ~ 85°C
RH100-32.000-10-F-1010-TR Raltron Crystal RH100 32 MHz ±10ppm 10pF -20°C ~ 70°C
AS-8.000-20-SMD-TR Raltron Crystal AS-SMD 8 MHz ±30ppm 20pF -20°C ~ 70°C
R2520-32.000-10-F-1010-TR-B1B Raltron Crystal R2520 32 MHz ±10ppm 10pF -10°C ~ 60°C
AS-18.432-20 Raltron Crystal AS 18.432 MHz ±30ppm 20pF -20°C ~ 70°C
R2520-24.000-10-1010-TR-NS4 Raltron Crystal R2520 24 MHz ±10ppm 10pF -10°C ~ 60°C
RT3215-32.768-7-TR Raltron Crystal RT3215 32.768 kHz ±20ppm 7pF -40°C ~ 85°C
RH100-8.000-20-3050-EXT-TR Raltron Crystal RH100 8 MHz ±30ppm 20pF -40°C ~ 85°C
R2016-32.000-10-F-1020-EXT-TR Raltron Crystal R2016 32 MHz ±10ppm 10pF -40°C ~ 85°C
R2016-32.000-12-F-1010-EXT-TR Raltron Crystal R2016 32 MHz ±10ppm 12pF -40°C ~ 85°C
