小型石英晶振,拉隆晶体,3225晶振,RH100-12.000-18-2020-EXT-TR

频率：12MHz

尺寸：3.2x2.5mm

小型石英晶振,拉隆晶体,3225晶振,RH100-12.000-18-2020-EXT-TR，进口贴片晶体，欧美无源石英晶振，编码为：RH100-12.000-18-2020-EXT-TR，频率：12MHz，频率稳定为：±20ppm，频率公差为：±20ppm，负载电容为：18PF，工作温度范围：-40℃至+85℃，晶振体积尺寸为：3.2x2.5mm，耐高温石英晶振，高性能无源晶体，拉隆无源贴片晶振，3225mm石英晶振，石英晶体谐振器，该贴片石英晶体体积小，焊接可采用自动贴片系统，产品本身可发挥优良的电气特性，满足无铅焊接的高温回流温度曲线要求，在网络通信领域得到了广泛的应用。

订购热线：0755-27838351

小型石英晶振,拉隆晶体,3225晶振,RH100-12.000-18-2020-EXT-TR，进口贴片晶体，欧美无源石英晶振，编码为：RH100-12.000-18-2020-EXT-TR，频率：12MHz，频率稳定为：±20ppm，频率公差为：±20ppm，负载电容为：18PF，工作温度范围：-40℃至+85℃，晶振体积尺寸为：3.2x2.5mm，耐高温石英晶振，高性能无源晶体，拉隆无源贴片晶振，3225mm石英晶振，石英晶体谐振器，该贴片石英晶体体积小，焊接可采用自动贴片系统，产品本身可发挥优良的电气特性，满足无铅焊接的高温回流温度曲线要求，在网络通信领域得到了广泛的应用。

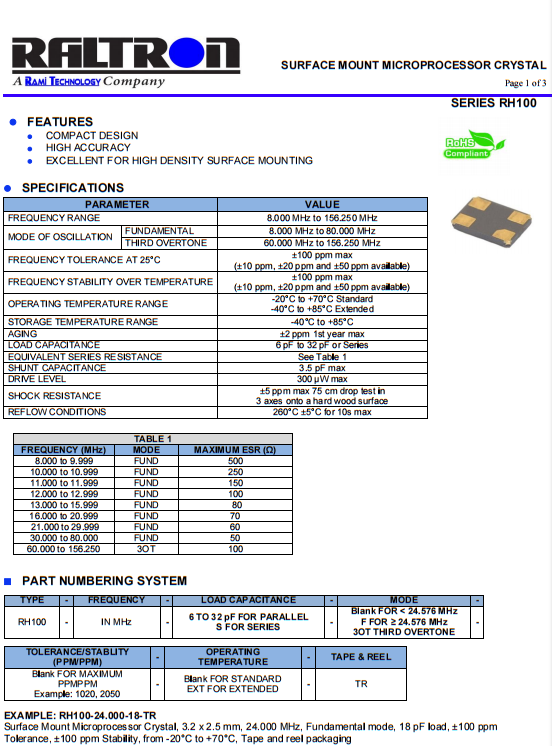

Japan2 小型石英晶振,拉隆晶体,3225晶振,RH100-12.000-18-2020-EXT-TR，参数表

编码	品牌	型号	频率	频率稳定	频率公差	负载电容	工作温度	尺寸
RH100-12.000-18-2020-EXT-TR	拉隆谐振器	RH100	12 MHz	±20ppm	±20ppm	18pF	-40°C ~ 85°C	3.20mm x 2.50mm

Japan3

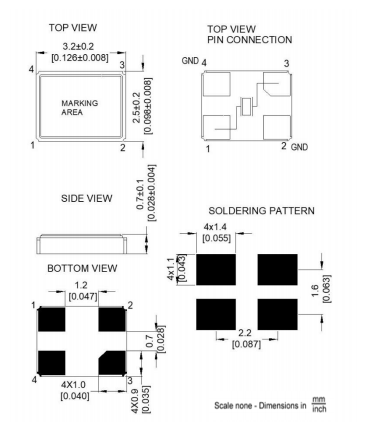

小型石英晶振,拉隆晶体,3225晶振,RH100-12.000-18-2020-EXT-TR，尺寸图

RH100-3

编码	品牌	型号	频率	频率稳定	频率公差	负载电容	工作温度
RH100-12.000-18-2020-EXT-TR	拉隆晶振	RH100	12 MHz	±20ppm	±20ppm	18pF	-40°C ~ 85°C
AS-16.000-18-SMD-TR	拉隆晶振	AS-SMD	16 MHz	±50ppm	±30ppm	18pF	-20°C ~ 70°C
AS-11.0592-18-SMD-TR	拉隆晶振	AS-SMD	11.0592 MHz	±50ppm	±30ppm	18pF	-20°C ~ 70°C
RH100-16.000-16-3030-EXT-TR	拉隆晶振	RH100	16 MHz	±30ppm	±30ppm	16pF	-40°C ~ 85°C
RH100-24.000-9-1015-EXT-TR	拉隆晶振	RH100	24 MHz	±15ppm	±10ppm	9pF	-40°C ~ 85°C
RH100-32.000-16-F-1015-EXT-TR	拉隆晶振	RH100	32 MHz	±15ppm	±10ppm	16pF	-40°C ~ 85°C
RH100-40.000-9-F-1010-EXT-TR	拉隆晶振	RH100	40 MHz	±10ppm	±10ppm	9pF	-40°C ~ 85°C
RH100-48.000-8-F-1015-EXT-TR	拉隆晶振	RH100	48 MHz	±15ppm	±10ppm	8pF	-40°C ~ 85°C
RH100-12.000-20-2030-TR	拉隆晶振	RH100	12 MHz	±30ppm	±20ppm	20pF	-20°C ~ 70°C
RH100-11.0592-18-3030-EXT-TR	拉隆晶振	RH100	11.0592 MHz	±30ppm	±30ppm	18pF	-40°C ~ 85°C
RH100-25.000-18-F-TR	拉隆晶振	RH100	25 MHz	±100ppm	±100ppm	18pF	-20°C ~ 70°C
RH100-26.000-10-F-1010-EXT-TR	拉隆晶振	RH100	26 MHz	±10ppm	±10ppm	10pF	-40°C ~ 85°C
RH100-12.000-12-1010-X-TR-NS2	拉隆晶振	RH100	12 MHz	±10ppm	±10ppm	12pF	-30°C ~ 85°C
RH100-25.000-18-F-2030-EXT-TR	拉隆晶振	RH100	25 MHz	±30ppm	±20ppm	18pF	-40°C ~ 85°C
RH100-48.000-10-F-1015-EXT-TR	拉隆晶振	RH100	48 MHz	±15ppm	±10ppm	10pF	-40°C ~ 85°C
R38-32.768-12.5	拉隆晶振	R38	32.768 kHz	-	±20ppm	12.5pF	-20°C ~ 70°C
R26-32.768-12.5	拉隆晶振	R26	32.768 kHz	-	±20ppm	12.5pF	-40°C ~ 85°C
RH100-12.000-20-3030-EXT-TR	拉隆晶振	RH100	12 MHz	±30ppm	±30ppm	20pF	-40°C ~ 85°C
RH100-12.000-18-2020-TR	拉隆晶振	RH100	12 MHz	±20ppm	±20ppm	18pF	-20°C ~ 70°C
RH100-24.000-18-2030-EXT-TR	拉隆晶振	RH100	24 MHz	±30ppm	±20ppm	18pF	-40°C ~ 85°C
RH100-12.000-12-1010-EXT-TR	拉隆晶振	RH100	12 MHz	±10ppm	±10ppm	12pF	-40°C ~ 85°C
RH100-12.000-9-1015-TR-NS1	拉隆晶振	RH100	12 MHz	±15ppm	±10ppm	9pF	-20°C ~ 70°C
RH100-25.000-16-F-2020-EXT-TR	拉隆晶振	RH100	25 MHz	±20ppm	±20ppm	16pF	-40°C ~ 85°C
RH100-24.000-8-1010-EXT-TR	拉隆晶振	RH100	24 MHz	±10ppm	±10ppm	8pF	-40°C ~ 85°C
RH100-25.000-18-F-1010-TR	拉隆晶振	RH100	25 MHz	±10ppm	±10ppm	18pF	-20°C ~ 70°C
RH100-16.000-8-1010-TR	拉隆晶振	RH100	16 MHz	±10ppm	±10ppm	8pF	-20°C ~ 70°C
RH100-25.000-10-F-1010-EXT-TR	拉隆晶振	RH100	25 MHz	±10ppm	±10ppm	10pF	-40°C ~ 85°C
R2520-32.000-8-F-1030-EXT-TR	拉隆晶振	R2520	32 MHz	±30ppm	±10ppm	8pF	-40°C ~ 85°C
AS-3.579545-18	拉隆晶振	AS	3.579545 MHz	±50ppm	±30ppm	18pF	-20°C ~ 70°C
AS-4.000-18	拉隆晶振	AS	4 MHz	±50ppm	±30ppm	18pF	-20°C ~ 70°C
AS-20.000-20	拉隆晶振	AS	20 MHz	±50ppm	±30ppm	20pF	-20°C ~ 70°C
AS-11.0592-18-EXT	拉隆晶振	AS	11.0592 MHz	±50ppm	±30ppm	18pF	-40°C ~ 85°C
AS-16.000-20-EXT	拉隆晶振	AS	16 MHz	±50ppm	±30ppm	20pF	-40°C ~ 85°C
AS-27.000-20-F	拉隆晶振	AS	27 MHz	±50ppm	±30ppm	20pF	-20°C ~ 70°C
AS-25.000-18-F-EXT	拉隆晶振	AS	25 MHz	±50ppm	±30ppm	18pF	-40°C ~ 85°C
R2520-12.000-8-1030-EXT-TR	拉隆晶振	R2520	12 MHz	±30ppm	±10ppm	8pF	-40°C ~ 85°C
RT3215-32.768-9-TR	拉隆晶振	RT3215	32.768 kHz	-	±20ppm	9pF	-40°C ~ 85°C
RSM200S-32.768-6-TR	拉隆晶振	RSM200S	32.768 kHz	-	±20ppm	6pF	-40°C ~ 85°C
H130B-16.000-18-3030-EXT-TR	拉隆晶振	H130B	16 MHz	±30ppm	±30ppm	18pF	-40°C ~ 85°C
H130B-12.000-18-3030-TR	拉隆晶振	H130B	12 MHz	±30ppm	±30ppm	18pF	-20°C ~ 70°C
H130B-24.000-18-3030-EXT-TR	拉隆晶振	H130B	24 MHz	±30ppm	±30ppm	18pF	-40°C ~ 85°C
RSE-32.768-12.5-H14-TR	拉隆晶振	RSE H14	32.768 kHz	-	±50ppm	12.5pF	-20°C ~ 70°C
RH100-8.000-10-1010-EXT-TR	拉隆晶振	RH100	8 MHz	±10ppm	±10ppm	10pF	-40°C ~ 85°C
H130A-8.000-8-2030-TR	拉隆晶振	H130A	8 MHz	±30ppm	±20ppm	8pF	-20°C ~ 70°C
RH100-8.000-8-2020-TR	拉隆晶振	RH100	8 MHz	±20ppm	±20ppm	8pF	-20°C ~ 70°C
RT2012-32.768-6-TR	拉隆晶振	RT2012	32.768 kHz	-	±50ppm	6pF	-40°C ~ 85°C
RH100-8.000-16-3030-TR-NS1	拉隆晶振	RH100	8 MHz	±30ppm	±30ppm	16pF	-20°C ~ 70°C
H13-8.000-18-3030-EXT-TR	拉隆晶振	H13	8 MHz	±30ppm	±30ppm	18pF	-40°C ~ 85°C
AS-4.9152-18-EXT-SMD-TR	拉隆晶振	AS-SMD	4.9152 MHz	±50ppm	±30ppm	18pF	-40°C ~ 85°C
AS-10.000-20-3030-SMD-TR	拉隆晶振	AS-SMD	10 MHz	±30ppm	±30ppm	20pF	-20°C ~ 70°C
AS-30.000-10-F-2020-EXT-SMD-TR	拉隆晶振	AS-SMD	30 MHz	±20ppm	±20ppm	10pF	-40°C ~ 85°C
AS-4.000-18-SMD-TR	拉隆晶振	AS-SMD	4 MHz	±50ppm	±30ppm	18pF	-20°C ~ 70°C
AS-3.579545-18-SMD-TR	拉隆晶振	AS-SMD	3.579545 MHz	±50ppm	±30ppm	18pF	-20°C ~ 70°C
AS-13.560-20-SMD-TR	拉隆晶振	AS-SMD	13.56 MHz	±50ppm	±30ppm	20pF	-20°C ~ 70°C
AS-20.000-16-SMD-TR	拉隆晶振	AS-SMD	20 MHz	±50ppm	±30ppm	16pF	-20°C ~ 70°C
AS-7.3728-20-EXT-SMD-TR	拉隆晶振	AS-SMD	7.3728 MHz	±50ppm	±30ppm	20pF	-40°C ~ 85°C
AS-7.3728-18-SMD-TR	拉隆晶振	AS-SMD	7.3728 MHz	±50ppm	±30ppm	18pF	-20°C ~ 70°C
RH100-13.560-10-1020-EXT-TR	拉隆晶振	RH100	13.56 MHz	±20ppm	±10ppm	10pF	-40°C ~ 85°C
RH100-26.000-18-F-2030-EXT-TR	拉隆晶振	RH100	26 MHz	±30ppm	±20ppm	18pF	-40°C ~ 85°C
RH100-24.000-9-1010-TR	拉隆晶振	RH100	24 MHz	±10ppm	±10ppm	9pF	-20°C ~ 70°C
RH100-24.000-8-1530-EXT-TR	拉隆晶振	RH100	24 MHz	±30ppm	±15ppm	8pF	-40°C ~ 85°C
RH100-10.000-10-5050-TR	拉隆晶振	RH100	10 MHz	±50ppm	±50ppm	10pF	-20°C ~ 70°C
RH100-10.000-8-2020-TR	拉隆晶振	RH100	10 MHz	±20ppm	±20ppm	8pF	-20°C ~ 70°C
RH100-24.000-20-3050-EXT-TR	拉隆晶振	RH100	24 MHz	±50ppm	±30ppm	20pF	-40°C ~ 85°C
RH100-32.000-12-F-3030-TR	拉隆晶振	RH100	32 MHz	±30ppm	±30ppm	12pF	-20°C ~ 70°C
RH100-50.000-12-F-1010-TR	拉隆晶振	RH100	50 MHz	±10ppm	±10ppm	12pF	-20°C ~ 70°C
RH100-50.000-10-F-1015-EXT-TR	拉隆晶振	RH100	50 MHz	±15ppm	±10ppm	10pF	-40°C ~ 85°C
RH100-16.000-9-1010-TR	拉隆晶振	RH100	16 MHz	±10ppm	±10ppm	9pF	-20°C ~ 70°C
RH100-25.000-6-F-1010-TR	拉隆晶振	RH100	25 MHz	±10ppm	±10ppm	6pF	-20°C ~ 70°C
