530AC622M080DG提供卓越的频率稳定性和可靠性

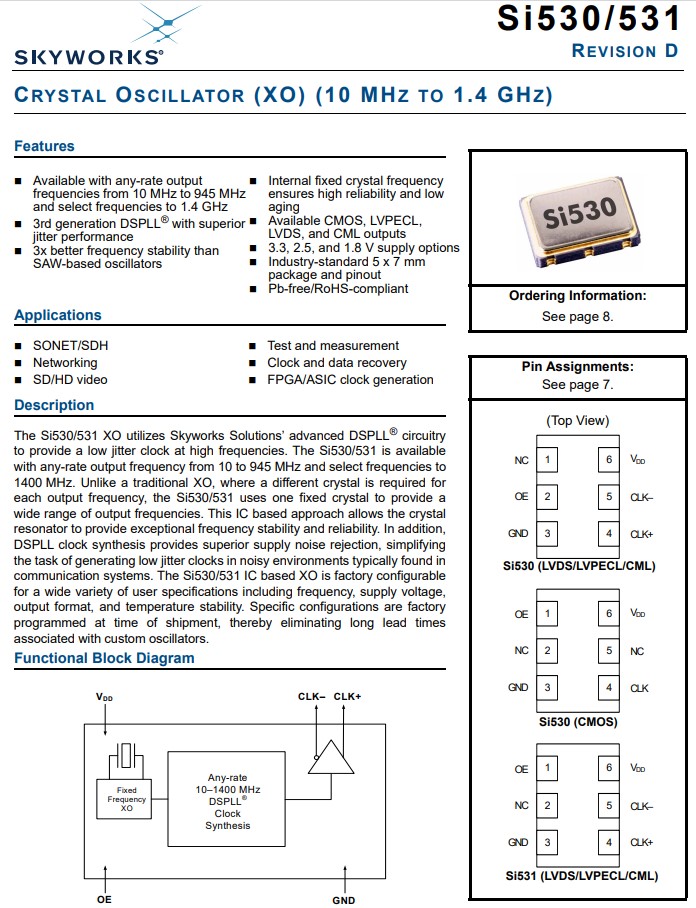

美国Silicon晶振系列Si530/Si531 XO采用Skyworks Solutions的先进DSPLL®电路，以在高频下提供低抖动时钟。Si530/Si531振荡器具有从10到945MHz的任意速率输出频率，并选择频率1400兆赫。与传统XO不同，传统XO需要不同的晶体，每个输出频率，Si530/531使用一个固定晶体来提供宽范围的输出频率。这种基于IC的方法允许晶体，530AC622M080DG提供卓越的频率稳定性和可靠性。此外，DSPLL时钟合成提供卓越的电源噪声抑制，简化了在通信系统中常见的噪声环境中产生低抖动时钟的任务。晶体振荡器Si530/531 IC的XO在工厂可配置用于各种用户规格，包括频率、电源电压、输出格式和温度稳定性。特定配置在发货时进行工厂编程，从而消除了与定制振荡器相关的长交付周期。
| 晶振料号 | 品牌 | 型号 | 频率 | 电压 | 频率稳定度 | 包装/封装 |
| 530FB125M000DG | Silicon晶振 | Si530 | 125MHz | 2.5V | ±20ppm | 6-SMD, No Lead |
| 530BB125M000DG | Silicon晶振 | Si530 | 125MHz | 3.3V | ±20ppm | 6-SMD, No Lead |
| 530FB200M000DG | Silicon晶振 | Si530 | 200MHz | 2.5V | ±20ppm | 6-SMD, No Lead |
| 530BC156M250DG | Silicon晶振 | Si530 | 156.25MHz | 3.3V | ±7ppm | 6-SMD, No Lead |
| 530BA125M000DG | Silicon晶振 | Si530 | 125MHz | 3.3V | ±50ppm | 6-SMD, No Lead |
| 530BB100M000DG |
Silicon晶振 |
Si530 | 100MHz | 3.3V | ±20ppm | 6-SMD, No Lead |
| 530FC156M250DG | Silicon晶振 | Si530 | 156.25MHz | 2.5V | ±7ppm | 6-SMD, No Lead |
| 530FA156M250DG | Silicon晶振 | Si530 | 156.25MHz | 2.5V | ±50ppm | 6-SMD, No Lead |
| 530FC125M000DG | Silicon晶振 | Si530 | 125MHz | 2.5V | ±7ppm | 6-SMD, No Lead |
| 530AC622M080DG | Silicon晶振 | Si530 | 622.08MHz | 3.3V | ±7ppm | 6-SMD, No Lead |
| 530AC125M000DG | Silicon晶振 | Si530 | 125MHz | 3.3V | ±7ppm | 6-SMD, No Lead |
| 530AC200M000DG | Silicon晶振 | Si530 | 200MHz | 3.3V | ±7ppm | 6-SMD, No Lead |
| 530BC200M000DG | Silicon晶振 | Si530 | 200MHz | 3.3V | ±7ppm | 6-SMD, No Lead |
| 530FC200M000DG | Silicon晶振 | Si530 | 200MHz | 2.5V | ±7ppm | 6-SMD, No Lead |
| 530AC156M250DG | Silicon晶振 | Si530 | 156.25MHz | 3.3V | ±7ppm | 6-SMD, No Lead |
| 530AC155M520DG | Silicon晶振 | Si530 | 155.52MHz | 3.3V | ±7ppm | 6-SMD, No Lead |
| 530BC148M500DG | Silicon晶振 | Si530 | 148.5MHz | 3.3V | ±7ppm | 6-SMD, No Lead |
| 530AC106M250DG | Silicon晶振 | Si530 | 106.25MHz | 3.3V | ±7ppm | 6-SMD, No Lead |
| 530EC106M250DG | Silicon晶振 | Si530 | 106.25MHz | 2.5V | ±7ppm | 6-SMD, No Lead |
| 530FC106M250DG | Silicon晶振 | Si530 | 106.25MHz | 2.5V | ±7ppm | 6-SMD, No Lead |
| 530BC106M250DG | Silicon晶振 | Si530 | 106.25MHz | 3.3V | ±7ppm | 6-SMD, No Lead |
| 530EC155M520DG | Silicon晶振 | Si530 | 155.52MHz | 2.5V | ±7ppm | 6-SMD, No Lead |
| 530EC187M500DG | Silicon晶振 | Si530 | 187.5MHz | 2.5V | ±7ppm | 6-SMD, No Lead |
| 530AC000110DG | Silicon晶振 | Si530 | 148.35165MHz | 3.3V | ±7ppm | 6-SMD, No Lead |
| 530AC148M500DG | Silicon晶振 | Si530 | 148.5MHz | 3.3V | ±7ppm | 6-SMD, No Lead |
| 530EC000110DG | Silicon晶振 | Si530 | 148.35165MHz | 2.5V | ±7ppm | 6-SMD, No Lead |
| 530FC000110DG | Silicon晶振 | Si530 | 148.35165MHz | 2.5V | ±7ppm | 6-SMD, No Lead |
| 530BC155M520DG | Silicon晶振 | Si530 | 155.52MHz | 3.3V | ±7ppm | 6-SMD, No Lead |
530AC622M080DG提供卓越的频率稳定性和可靠性，Si530/531 XO支持多种选项，包括频率、温度稳定性、输出格式和VDD。 装运时，Si530/531中已编程设定了具体的器件配置。配置可以是 使用下面的零件号配置表指定。Skyworks解决方案提供了一个基于网络浏览器的零件号配置实用程序来简化此过程。Si530和Si531 XO系列采用符合RoHS标准的工业标准6- 衬垫，小体积7.0x5.0mm包装。Si531系列支持LVPECL、LVDS差分晶体振荡器和的备用OE引脚排列(引脚#1) CML输出格式。
| 原厂代码 | 品牌 | 型号 | 频率 | 电压 | 频率稳定度 | 包装/封装 |
| 531BB125M000DG | Silicon晶振 | Si531 | 125MHz | 3.3V | ±20ppm | 6-SMD, No Lead |
| 531FB200M000DG | Silicon晶振 | Si531 | 200MHz | 2.5V | ±20ppm | 6-SMD, No Lead |
| 531FC250M000DG | Silicon晶振 | Si531 | 250MHz | 2.5V | ±7ppm | 6-SMD, No Lead |
| 531FB125M000DG | Silicon晶振 | Si531 | 125MHz | 2.5V | ±20ppm | 6-SMD, No Lead |
| 531BC000110DG | Silicon晶振 | Si531 | 148.35165MHz | 3.3V | ±7ppm | 6-SMD, No Lead |
| 531BC200M000DG | Silicon晶振 | Si531 | 200MHz | 3.3V | ±7ppm | 6-SMD, No Lead |
| 531BC250M000DG | Silicon晶振 | Si531 | 250MHz | 3.3V | ±7ppm | 6-SMD, No Lead |
| 531BC125M000DG | Silicon晶振 | Si531 | 125MHz | 3.3V | ±7ppm | 6-SMD, No Lead |
| 531FB106M250DG |
有源晶体 |
Si531 | 106.25MHz | 2.5V | ±20ppm | 6-SMD, No Lead |
| 531AC156M250DG | Silicon晶振 | Si531 | 156.25MHz | 3.3V | ±7ppm | 6-SMD, No Lead |
| 531AC200M000DG | Silicon晶振 | Si531 | 200MHz | 3.3V | ±7ppm | 6-SMD, No Lead |
| 531BC148M500DG | Silicon晶振 | Si531 | 148.5MHz | 3.3V | ±7ppm | 6-SMD, No Lead |
| 531BC156M250DG | Silicon晶振 | Si531 | 156.25MHz | 3.3V | ±7ppm | 6-SMD, No Lead |
| 531AC125M000DG | Silicon晶振 | Si531 | 125MHz | 3.3V | ±7ppm | 6-SMD, No Lead |
| 531FC125M000DG | Silicon晶振 | Si531 | 125MHz | 2.5V | ±7ppm | 6-SMD, No Lead |
| 531FC156M250DG | Silicon晶振 | Si531 | 156.25MHz | 2.5V | ±7ppm | 6-SMD, No Lead |
| 531FC148M500DG | Silicon晶振 | Si531 | 148.5MHz | 2.5V | ±7ppm | 6-SMD, No Lead |
| 531AC155M520DG | Silicon晶振 | Si531 | 155.52MHz | 3.3V | ±7ppm | 6-SMD, No Lead |
| 531BC155M520DG | Silicon晶振 | Si531 | 155.52MHz | 3.3V | ±7ppm | 6-SMD, No Lead |
| 531FC200M000DG | Silicon晶振 | Si531 | 200MHz | 2.5V | ±7ppm | 6-SMD, No Lead |
| 531AC622M080DG | Silicon晶振 | Si531 | 622.08MHz | 3.3V | ±7ppm | 6-SMD, No Lead |
| 531AC312M500DG | Silicon晶振 | Si531 | 312.5MHz | 3.3V | ±7ppm | 6-SMD, No Lead |
| 531AC106M250DG | Silicon晶振 | Si531 | 106.25MHz | 3.3V | ±7ppm | 6-SMD, No Lead |
| 531EC106M250DG | Silicon晶振 | Si531 | 106.25MHz | 2.5V | ±7ppm | 6-SMD, No Lead |
| 531BC187M500DG | Silicon晶振 | Si531 | 187.5MHz | 3.3V | ±7ppm | 6-SMD, No Lead |
| 531EC155M520DG | Silicon晶振 | Si531 | 155.52MHz | 2.5V | ±7ppm | 6-SMD, No Lead |
产品特点：
可用于任何速率的输出 频率从10MHz到945MHz，并选择1.4GHz的频率
第三代DSPLL，内置高级 抖动性能
频率稳定性比高3倍 基于SAW的振荡器
内部固定晶体频率 确保高可靠性和低老化
可用CMOS、LVPECL、 LVDS和CML输出贴片晶振
3.3、2.5和1.8V电源选项
行业标准5 x 7毫米 封装和引脚排列
无铅/符合RoHS标准
应用于：声纳/SDH，网络，SD/HD视频，测试和测量，时钟和数据恢复，FPGA/AASIC时钟生成
