5032mm\405C35D10M00000\10MHZ\微控制器\CTS405

频率：10MHZ

尺寸：5.0*3.2mm

5032mm\405C35D10M00000\10MHZ\微控制器\CTS405,尺寸为5032,频率为10MHZ,CTS晶振，西迪斯进口晶振，无源晶体，水晶振动子，石英晶体谐振器，SMD晶体，SMD石英晶振，高性能晶振，工业物联网应用晶振，无线通信晶振，计算机外围设计晶振，便携式设备晶振，M2M通信晶振，405C11A16M00000晶体，405C35D40M00000谐振器。

晶体产品主要应用范围：物联网和工业物联网应用，无线通信，FPGA /微控制器，USB接口，计算机外围设备，便携式设备，测试与测量，M2M通信，宽带接入。5032mm\405C35D10M00000\10MHZ\微控制器\CTS405.

订购热线：0755-27838351

5032mm\405C35D10M00000\10MHZ\微控制器\CTS405 参数表

P AR AMETER

S YMB OL

C ON DITION S

MI N

TYP

MAX

U NI T

Op er at in g Tem p er at u r e

-20
-30
-40
-40

+25

+70
+85
+85
+105

°C

S t o r age Tem p er at u r e

TSTG

-55

+125

°C

Frequency Stability

P AR AMETER

S YMB OL

C ON DITION S

MI N

TYP

MAX

U NI T

F r eq u en c y R an ge

Fundamental Mode

6.76438 - 54

MHz

F r eq u en c y To ler an c e

Δf/fO

@ +25°C

10, 15, 20, 25 or 30

±ppm

F r eq u en c y S t ab ilit y

Δf/f25

Referenced to +25°C reading

10, 15, 20, 25, 30 or 50

±ppm

Agin g

Δf/f0

Typical per year @ +25°C

-3 - 3

ppm

Crystal Parameters

P AR AMETER

S YMB OL

C ON DITION S

MI N

TYP

MAX

U NI T

Op er at in g Mo d e

Fundamental

Cr y st al Cu t

AT-Cut Strip

L o ad C ap ac it an c e

See Ordering Information

S h u n t C ap ac it an c e

- 3.0 5.0

S er ies R esist an c e

F u n d am en t al

6 .76438MHz - <12MHz
12MHz - <14MHz
14MHz - <20MHz
20MHz - 54MHz

                 -                    -                 100
                 -                    -                  60
                 -                    -                  50
                 -                    -                  40

D r iv e L ev el

300

µW

I n su lat io n R esist an c e

+100Vdc ±15Vdc

500 - -

MΩ

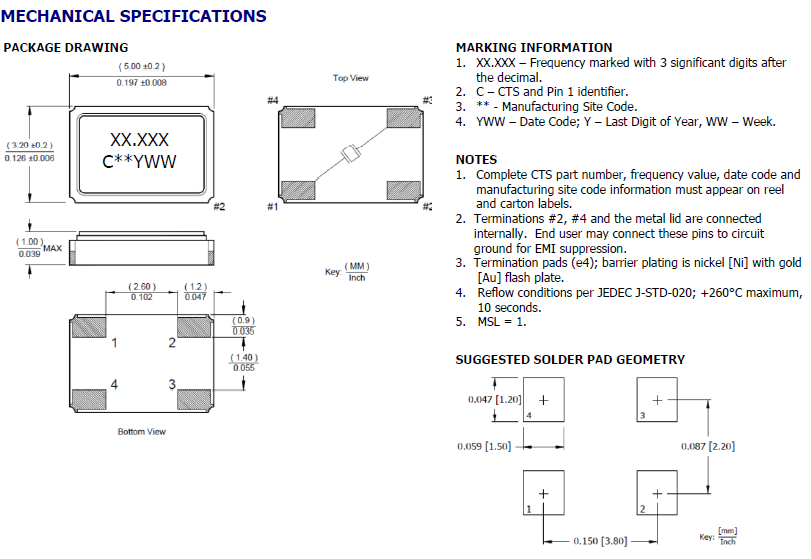

5032mm\405C35D10M00000\10MHZ\微控制器\CTS405 尺寸图

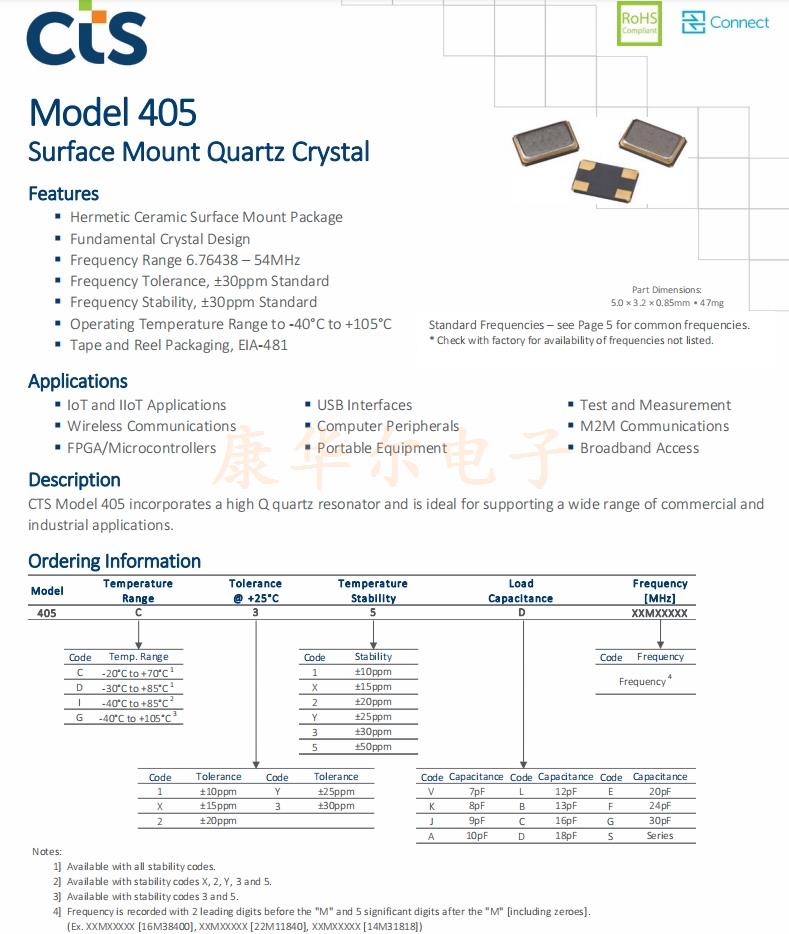

405C35D10M00000晶振特点：

●体积小，超薄(5.0×3.2×1.3mm)特性
·密封陶瓷表面贴装封装
基本晶体设计
频率范围6.76438~54MHz
频率公差，±30ppm标准
频率稳定性，±30ppm标准
◆工作温度范围-40℃~ +105℃
磁带和卷轴包装，EIA-481
●兼容AEC-Q200
