Q27.0-JXS21-12-10/10-T1-FU-LF,Jauch无源晶振,6G通讯模块晶振,JXS21谐振器

频率：27MHZ

尺寸：2.0x1.6mm

Q27.0-JXS21-12-10/10-T1-FU-LF,Jauch无源晶振,6G通讯模块晶振,JXS21谐振器，尺寸2.0x1.6mm，频率27MHZ，法国进口晶振，Jauch石英晶振，石英晶体谐振器，轻薄型晶振，SMD石英晶振，水晶振动子，无源贴片晶振，石英贴片晶振，无源石英晶体，无源晶振，石英晶振，SMD晶振，6G通讯模块晶振，6G物联网晶振，可穿戴设备晶振，便携式设备晶振，智能家居晶振，小型设备晶振，高性能石英晶振，低损耗无源晶振，低功耗晶振，高性能晶振，产品具有小尺寸轻薄型高性能的特点。

晶振外观使用金属材料封装的,具有高稳定性,高可靠性的石英晶体,晶振外观本身使用金属封装,充分的密封性能,可确保其高可靠性,采用编带包装,外包装采用朔胶盘,可在自动贴片机上对应自动贴装等优势.Q27.0-JXS21-12-10/10-T1-FU-LF,Jauch无源晶振,6G通讯模块晶振,JXS21谐振器.

订购热线：0755-27838351

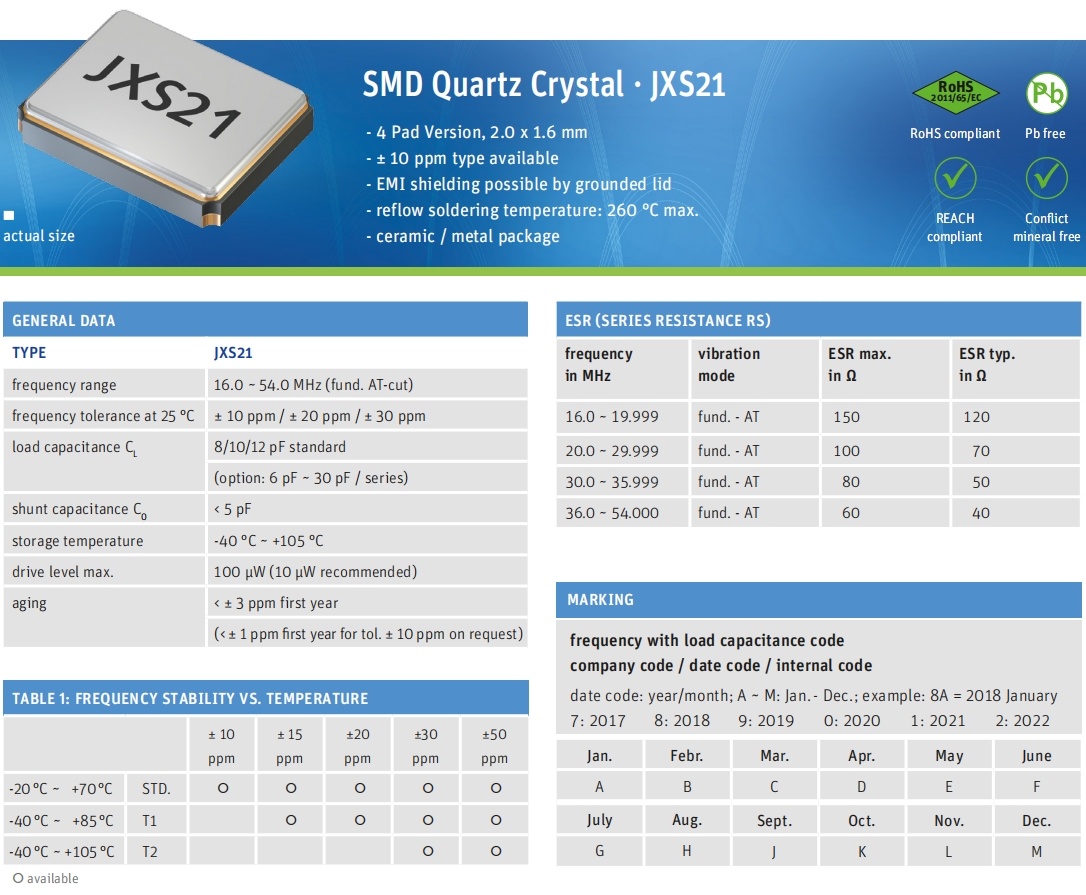

Q27.0-JXS21-12-10/10-T1-FU-LF,Jauch无源晶振,6G通讯模块晶振,JXS21谐振器 参数表

GENERAL DATA

TYPE

JXS21

frequency range

27.0 MHz (fund. AT-cut)

frequency tolerance at 25 °C

± 10 ppm / ± 20 ppm / ± 30 ppm

load capacitance CL

8/10/12 pF standard

(option: 6 pF ~ 30 pF / series)

shunt capacitance CO

< 5 pF

storage temperature

-40 °C ~ +105 °C

drive level max.

100 μW (10 μW recommended)

aging

< ± 3 ppm first year

(< ± 1 ppm first year for tol. ± 10 ppm on request)

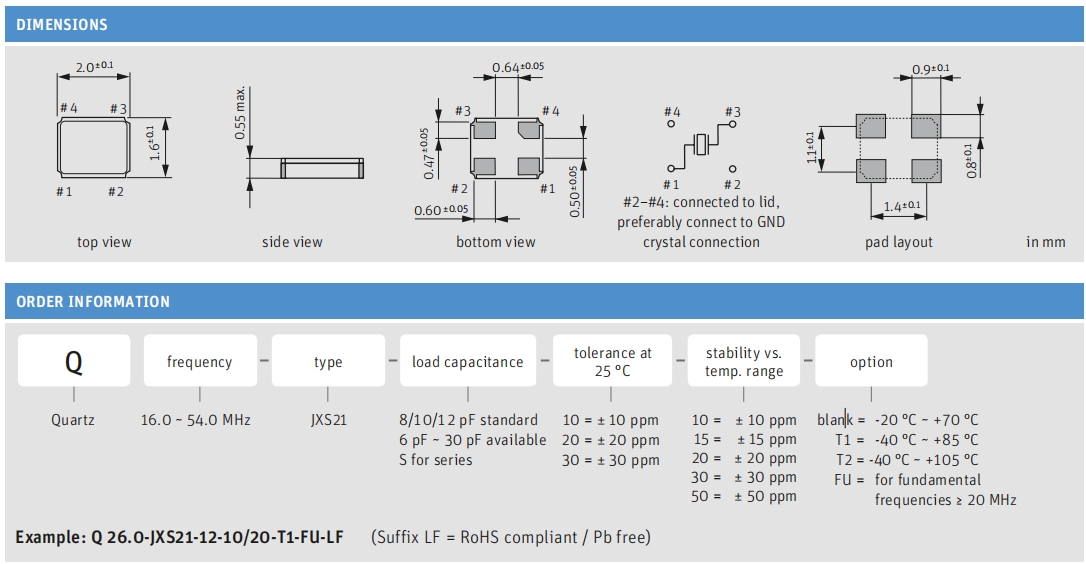

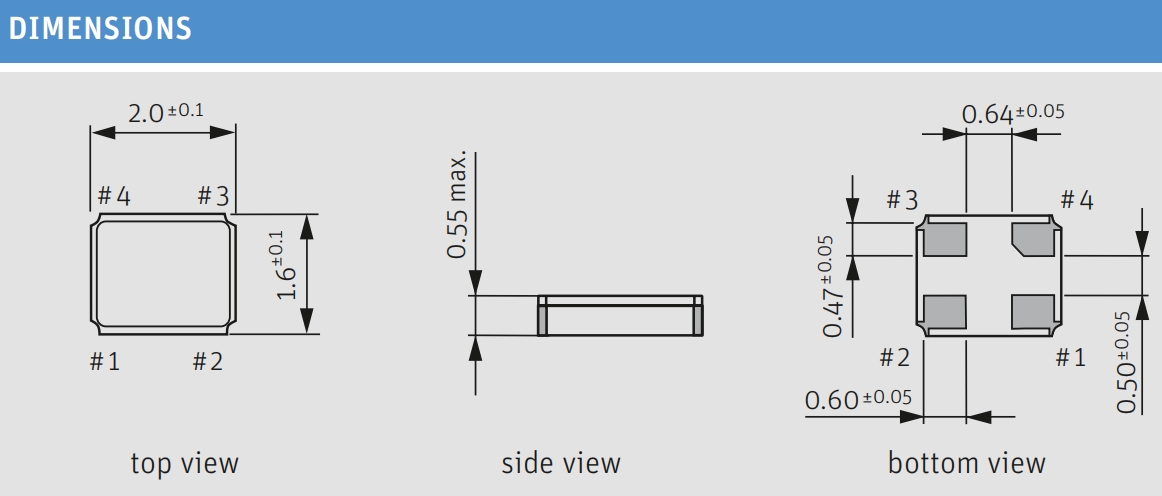

Q27.0-JXS21-12-10/10-T1-FU-LF,Jauch无源晶振,6G通讯模块晶振,JXS21谐振器 尺寸图

Q27.0-JXS21-12-10/10-T1-FU-LF,Jauch无源晶振,6G通讯模块晶振,JXS21谐振器

无源晶振产品特性：

Manufacturer Part Number	Manufacturer	Description	Series	Frequency	Frequency Stability	Frequency Tolerance
Q 20.0-JXS22-12-10/10-FU-WA-LF	Jauch Quartz	CRYSTAL 20MHZ 12PF SMD	JXS22-WA	20MHz	±10ppm	±10ppm
Q 20.0-JXS22-12-10/10-FU-WA-LF	Jauch Quartz	CRYSTAL 20MHZ 12PF SMD	JXS22-WA	20MHz	±10ppm	±10ppm
Q 20.0-JXS22-12-10/10-FU-WA-LF	Jauch Quartz	CRYSTAL 20MHZ 12PF SMD	JXS22-WA	20MHz	±10ppm	±10ppm
Q 20.0-JXS22-8-10/10-FU-WA-LF	Jauch Quartz	CRYSTAL 20MHZ 8PF SMD	JXS22-WA	20MHz	±10ppm	±10ppm
Q 20.0-JXS22-8-10/10-FU-WA-LF	Jauch Quartz	CRYSTAL 20MHZ 8PF SMD	JXS22-WA	20MHz	±10ppm	±10ppm
Q 20.0-JXS22-8-10/10-FU-WA-LF	Jauch Quartz	CRYSTAL 20MHZ 8PF SMD	JXS22-WA	20MHz	±10ppm	±10ppm
Q 20.0-JXS22-9-10/10-FU-WA-LF	Jauch Quartz	CRYSTAL 20MHZ 9PF SMD	JXS22-WA	20MHz	±10ppm	±10ppm
Q 20.0-JXS22-9-10/10-FU-WA-LF	Jauch Quartz	CRYSTAL 20MHZ 9PF SMD	JXS22-WA	20MHz	±10ppm	±10ppm
Q 20.0-JXS22-9-10/10-FU-WA-LF	Jauch Quartz	CRYSTAL 20MHZ 9PF SMD	JXS22-WA	20MHz	±10ppm	±10ppm
Q 24.0-JXS22-10-10/10-FU-WA-LF	Jauch Quartz	CRYSTAL 24MHZ 10PF SMD	JXS22-WA	24MHz	±10ppm	±10ppm
Q 24.0-JXS22-10-10/10-FU-WA-LF	Jauch Quartz	CRYSTAL 24MHZ 10PF SMD	JXS22-WA	24MHz	±10ppm	±10ppm
Q 24.0-JXS22-10-10/10-FU-WA-LF	Jauch Quartz	CRYSTAL 24MHZ 10PF SMD	JXS22-WA	24MHz	±10ppm	±10ppm
Q 24.0-JXS22-12-10/10-FU-WA-LF	Jauch Quartz	CRYSTAL 24MHZ 12PF SMD	JXS22-WA	24MHz	±10ppm	±10ppm
Q 24.0-JXS22-12-10/10-FU-WA-LF	Jauch Quartz	CRYSTAL 24MHZ 12PF SMD	JXS22-WA	24MHz	±10ppm	±10ppm
Q 24.0-JXS22-12-10/10-FU-WA-LF	Jauch Quartz	CRYSTAL 24MHZ 12PF SMD	JXS22-WA	24MHz	±10ppm	±10ppm
Q 24.0-JXS22-8-10/10-FU-WA-LF	Jauch Quartz	CRYSTAL 24MHZ 8PF SMD	JXS22-WA	24MHz	±10ppm	±10ppm
Q 24.0-JXS22-8-10/10-FU-WA-LF	Jauch Quartz	CRYSTAL 24MHZ 8PF SMD	JXS22-WA	24MHz	±10ppm	±10ppm
Q 24.0-JXS22-8-10/10-FU-WA-LF	Jauch Quartz	CRYSTAL 24MHZ 8PF SMD	JXS22-WA	24MHz	±10ppm	±10ppm
Q 24.0-JXS22-9-10/10-FU-WA-LF	Jauch Quartz	CRYSTAL 24MHZ 9PF SMD	JXS22-WA	24MHz	±10ppm	±10ppm
Q 24.0-JXS22-9-10/10-FU-WA-LF	Jauch Quartz	CRYSTAL 24MHZ 9PF SMD	JXS22-WA	24MHz	±10ppm	±10ppm
Q 24.0-JXS22-9-10/10-FU-WA-LF	Jauch Quartz	CRYSTAL 24MHZ 9PF SMD	JXS22-WA	24MHz	±10ppm	±10ppm
Q 26.0-JXS21-10-10/10-FU-WA-LF	Jauch Quartz	CRYSTAL 26MHZ 10PF SMD	JXS21-WA	26MHz	±10ppm	±10ppm
Q 26.0-JXS21-10-10/10-FU-WA-LF	Jauch Quartz	CRYSTAL 26MHZ 10PF SMD	JXS21-WA	26MHz	±10ppm	±10ppm
Q 26.0-JXS21-10-10/10-FU-WA-LF	Jauch Quartz	CRYSTAL 26MHZ 10PF SMD	JXS21-WA	26MHz	±10ppm	±10ppm
Q 26.0-JXS21-12-10/10-FU-WA-LF	Jauch Quartz	CRYSTAL 26MHZ 12PF SMD	JXS21-WA	26MHz	±10ppm	±10ppm
Q 26.0-JXS21-12-10/10-FU-WA-LF	Jauch Quartz	CRYSTAL 26MHZ 12PF SMD	JXS21-WA	26MHz	±10ppm	±10ppm
Q 26.0-JXS21-12-10/10-FU-WA-LF	Jauch Quartz	CRYSTAL 26MHZ 12PF SMD	JXS21-WA	26MHz	±10ppm	±10ppm
Q 26.0-JXS21-8-10/10-FU-WA-LF	Jauch Quartz	CRYSTAL 26MHZ 8PF SMD	JXS21-WA	26MHz	±10ppm	±10ppm
Q 26.0-JXS21-8-10/10-FU-WA-LF	Jauch Quartz	CRYSTAL 26MHZ 8PF SMD	JXS21-WA	26MHz	±10ppm	±10ppm
Q 26.0-JXS21-8-10/10-FU-WA-LF	Jauch Quartz	CRYSTAL 26MHZ 8PF SMD	JXS21-WA	26MHz	±10ppm	±10ppm
Q 26.0-JXS21-9-10/10-FU-WA-LF	Jauch Quartz	CRYSTAL 26MHZ 9PF SMD	JXS21-WA	26MHz	±10ppm	±10ppm
Q 26.0-JXS21-9-10/10-FU-WA-LF	Jauch Quartz	CRYSTAL 26MHZ 9PF SMD	JXS21-WA	26MHz	±10ppm	±10ppm
Q 26.0-JXS21-9-10/10-FU-WA-LF	Jauch Quartz	CRYSTAL 26MHZ 9PF SMD	JXS21-WA	26MHz	±10ppm	±10ppm
Q 26.0-JXS22-10-10/10-FU-WA-LF	Jauch Quartz	CRYSTAL 26MHZ 10PF SMD	JXS22-WA	26MHz	±10ppm	±10ppm
Q 26.0-JXS22-10-10/10-FU-WA-LF	Jauch Quartz	CRYSTAL 26MHZ 10PF SMD	JXS22-WA	26MHz	±10ppm	±10ppm
Q 26.0-JXS22-10-10/10-FU-WA-LF	Jauch Quartz	CRYSTAL 26MHZ 10PF SMD	JXS22-WA	26MHz	±10ppm	±10ppm
Q 26.0-JXS22-12-10/10-FU-WA-LF	Jauch Quartz	CRYSTAL 26MHZ 12PF SMD	JXS22-WA	26MHz	±10ppm	±10ppm
Q 26.0-JXS22-12-10/10-FU-WA-LF	Jauch Crystal	CRYSTAL 26MHZ 12PF SMD	JXS22-WA	26MHz	±10ppm	±10ppm
Q 26.0-JXS22-12-10/10-FU-WA-LF	Jauch Quartz	CRYSTAL 26MHZ 12PF SMD	JXS22-WA	26MHz	±10ppm	±10ppm
Q 26.0-JXS22-8-10/10-FU-WA-LF	Jauch Quartz	CRYSTAL 26MHZ 8PF SMD	JXS22-WA	26MHz	±10ppm	±10ppm
Q 26.0-JXS22-8-10/10-FU-WA-LF	Jauch Quartz	CRYSTAL 26MHZ 8PF SMD	JXS22-WA	26MHz	±10ppm	±10ppm
Q 26.0-JXS22-8-10/10-FU-WA-LF	Jauch Quartz	CRYSTAL 26MHZ 8PF SMD	JXS22-WA	26MHz	±10ppm	±10ppm
Q 26.0-JXS22-9-10/10-FU-WA-LF	Jauch Quartz	CRYSTAL 26MHZ 9PF SMD	JXS22-WA	26MHz	±10ppm	±10ppm
Q 26.0-JXS22-9-10/10-FU-WA-LF	Jauch Quartz	CRYSTAL 26MHZ 9PF SMD	JXS22-WA	26MHz	±10ppm	±10ppm
Q 26.0-JXS22-9-10/10-FU-WA-LF	Jauch Quartz	CRYSTAL 26MHZ 9PF SMD	JXS22-WA	26MHz	±10ppm	±10ppm
Q 27.12-JXS21-10-10/10-FU-WA-LF	Jauch Quartz	CRYSTAL 27.12MHZ 10PF SMD	JXS21-WA	27.12MHz	±10ppm	±10ppm
Q 27.12-JXS21-10-10/10-FU-WA-LF	Jauch Quartz	CRYSTAL 27.12MHZ 10PF SMD	JXS21-WA	27.12MHz	±10ppm	±10ppm
Q 27.12-JXS21-10-10/10-FU-WA-LF	Jauch Quartz	CRYSTAL 27.12MHZ 10PF SMD	JXS21-WA	27.12MHz	±10ppm	±10ppm
Q 27.12-JXS21-12-10/10-FU-WA-LF	Jauch Quartz	CRYSTAL 27.12MHZ 12PF SMD	JXS21-WA	27.12MHz	±10ppm	±10ppm
Q 27.12-JXS21-12-10/10-FU-WA-LF	Jauch Quartz	CRYSTAL 27.12MHZ 12PF SMD	JXS21-WA	27.12MHz	±10ppm	±10ppm
Q 27.12-JXS21-12-10/10-FU-WA-LF	Jauch Quartz	CRYSTAL 27.12MHZ 12PF SMD	JXS21-WA	27.12MHz	±10ppm	±10ppm
Q 27.12-JXS21-8-10/10-FU-WA-LF	Jauch Quartz	CRYSTAL 27.12MHZ 8PF SMD	JXS21-WA	27.12MHz	±10ppm	±10ppm
Q 27.12-JXS21-8-10/10-FU-WA-LF	Jauch Quartz	CRYSTAL 27.12MHZ 8PF SMD	JXS21-WA	27.12MHz	±10ppm	±10ppm
Q 27.12-JXS21-8-10/10-FU-WA-LF	Jauch Quartz	CRYSTAL 27.12MHZ 8PF SMD	JXS21-WA	27.12MHz	±10ppm	±10ppm
Q 27.12-JXS21-9-10/10-FU-WA-LF	Jauch Quartz	CRYSTAL 27.12MHZ 9PF SMD	JXS21-WA	27.12MHz	±10ppm	±10ppm
Q 27.12-JXS21-9-10/10-FU-WA-LF	Jauch Quartz	CRYSTAL 27.12MHZ 9PF SMD	JXS21-WA	27.12MHz	±10ppm	±10ppm
Q 27.12-JXS21-9-10/10-FU-WA-LF	Jauch Quartz	CRYSTAL 27.12MHZ 9PF SMD	JXS21-WA	27.12MHz	±10ppm	±10ppm
Q 27.12-JXS22-10-10/10-FU-WA-LF	Jauch Quartz	CRYSTAL 27.12MHZ 10PF SMD	JXS22-WA	27.12MHz	±10ppm	±10ppm
Q 27.12-JXS22-10-10/10-FU-WA-LF	Jauch Quartz	CRYSTAL 27.12MHZ 10PF SMD	JXS22-WA	27.12MHz	±10ppm	±10ppm
Q 27.12-JXS22-10-10/10-FU-WA-LF	Jauch Quartz	CRYSTAL 27.12MHZ 10PF SMD	JXS22-WA	27.12MHz	±10ppm	±10ppm
Q 27.12-JXS22-12-10/10-FU-WA-LF	Jauch Quartz	CRYSTAL 27.12MHZ 12PF SMD	JXS22-WA	27.12MHz	±10ppm	±10ppm
Q 27.12-JXS22-12-10/10-FU-WA-LF	Jauch Quartz	CRYSTAL 27.12MHZ 12PF SMD	JXS22-WA	27.12MHz	±10ppm	±10ppm
Q 27.12-JXS22-12-10/10-FU-WA-LF	Jauch Quartz	CRYSTAL 27.12MHZ 12PF SMD	JXS22-WA	27.12MHz	±10ppm	±10ppm
Q 27.12-JXS22-8-10/10-FU-WA-LF	Jauch Quartz	CRYSTAL 27.12MHZ 8PF SMD	JXS22-WA	27.12MHz	±10ppm	±10ppm
Q 27.12-JXS22-8-10/10-FU-WA-LF	Jauch Quartz	CRYSTAL 27.12MHZ 8PF SMD	JXS22-WA	27.12MHz	±10ppm	±10ppm
Q 27.12-JXS22-8-10/10-FU-WA-LF	Jauch Quartz	CRYSTAL 27.12MHZ 8PF SMD	JXS22-WA	27.12MHz	±10ppm	±10ppm
