UF253/UF23系列超低抖动LVDS晶体振荡器,UF2532DC0156.250000,有源晶振,ECERA晶振

DIODES UF系列超低抖动，微型晶体振荡器是用于高性能计算和网络的前沿要求最苛刻的行业高级应用。Automotivecompliant变体可用。这种新型晶体振荡器支持广泛的应用要求非常低的噪音采用最小的工业标准封装之一。较大的包装也可满足灵活设计需求。有多种输出标准可供选择: LVPECL，LVDS和HCSL差分晶体振荡器，以及2.5V和3.3V的电源电压，提供客户指定的频率高达212.5MHz，温度稳定性达到25PPM。

UF253/UF23 XO系列是世界上最小的晶体振荡器系列，经过优化以节省电路板空间。小体积晶振尺寸2.5x2.0mm有源晶振、超低抖动LVDS晶体振荡器，该系列由具有超低抖动性能的高性能LVDS晶体振荡器组成，可满足严格的芯片组要求。它支持多种选择，包括更宽的频率范围、2.5V/3.3V电压和各种稳定性。它旨在满足通信系统和其他高性能设备的时钟源规范。

UF253/UF23系列超低抖动LVDS晶体振荡器,UF2532DC0156.250000,有源晶振,ECERA晶振

FNSTB1027	Diodes Incorporated	SaRonix-eCera™ ASSP XO™	27MHz	±30ppm	-20°C ~ 70°C
FNSTB1027	Diodes Incorporated	SaRonix-eCera™ ASSP XO™	27MHz	±30ppm	-20°C ~ 70°C
FNSURV054	Diodes Incorporated	SaRonix-eCera™ ASSP XO™	54MHz	±30ppm	-20°C ~ 70°C
FNSURV054	Diodes Incorporated	SaRonix-eCera™ ASSP XO™	54MHz	±30ppm	-20°C ~ 70°C
FNSURV054	Diodes Incorporated	SaRonix-eCera™ ASSP XO™	54MHz	±30ppm	-20°C ~ 70°C
FDSAS6062	Diodes Incorporated	SaRonix-eCera™ ASSP XO™	62.5MHz	±50ppm	-20°C ~ 70°C
FDSAS6062	Diodes Incorporated	SaRonix-eCera™ ASSP XO™	62.5MHz	±50ppm	-20°C ~ 70°C
FDSAS6062	Diodes Incorporated	SaRonix-eCera™ ASSP XO™	62.5MHz	±50ppm	-20°C ~ 70°C
FN5000121	Diodes Incorporated	SaRonix-eCera™ FN	50MHz	±50ppm	-20°C ~ 70°C
FN5000121	Diodes Incorporated	SaRonix-eCera™ FN	50MHz	±50ppm	-20°C ~ 70°C
FN5000121	Diodes Incorporated	SaRonix-eCera™ FN	50MHz	±50ppm	-20°C ~ 70°C
FD2450017	Diodes Incorporated	SaRonix-eCera™ FD	24.576MHz	±50ppm	-40°C ~ 85°C
FD2450017	Diodes Incorporated	SaRonix-eCera™ FD	24.576MHz	±50ppm	-40°C ~ 85°C
FD2450017	Diodes Incorporated	SaRonix-eCera™ FD	24.576MHz	±50ppm	-40°C ~ 85°C
FN2500140	Diodes Incorporated	SaRonix-eCera™ FN	25.000625MHz	±25ppm	-40°C ~ 85°C
FN2500140	Diodes Incorporated	SaRonix-eCera™ FN	25.000625MHz	±25ppm	-40°C ~ 85°C
FN2500140	Diodes Incorporated	SaRonix-eCera™ FN	25.000625MHz	±25ppm	-40°C ~ 85°C
FN4800068	Diodes Incorporated	SaRonix-eCera™ FN	48MHz	±50ppm	-20°C ~ 70°C
FN4800068	Diodes Incorporated	SaRonix-eCera™ FN	48MHz	±50ppm	-20°C ~ 70°C
FN4800068	Diodes Incorporated	SaRonix-eCera™ FN	48MHz	±50ppm	-20°C ~ 70°C
FN3330078	Diodes Incorporated	SaRonix-eCera™ FN	33.333MHz	±30ppm	-40°C ~ 85°C
FN3330078	Diodes Incorporated	SaRonix-eCera™ FN	33.333MHz	±30ppm	-40°C ~ 85°C
FN3330078	Diodes Incorporated	SaRonix-eCera™ FN	33.333MHz	±30ppm	-40°C ~ 85°C
FN0200045	Diodes Incorporated	SaRonix-eCera™ FN	2.048MHz	±50ppm	-20°C ~ 70°C
FN0200045	Diodes Incorporated	SaRonix-eCera™ FN	2.048MHz	±50ppm	-20°C ~ 70°C

UF253/UF23系列超低抖动LVDS晶体振荡器,UF2532DC0156.250000,有源晶振,ECERA晶振

特征：
超低相位抖动轻薄型晶体振荡器
0.06ps典型值。0.08ps RMS最大值（12kHz至20MHz）
扩展温度范围高达125℃
完全无铅且完全符合RoHS标准
不含卤素和锑。“绿色”设备
应用程序：
网络系统
光模块
服务器和存储系统
专业视频设备
测试与测量
FPGA/ASIC时钟生成
112G 串行应用

FN0200045	Diodes Incorporated	SaRonix-eCera™ FN	2.048MHz	±50ppm	-20°C ~ 70°C
NX51500001	Diodes Incorporated	SaRonix-eCera™ NX	50MHz	±25ppm	-40°C ~ 85°C
NX51500001	Diodes Incorporated	SaRonix-eCera™ NX	50MHz	±25ppm	-40°C ~ 85°C
NX51500001	Diodes Incorporated	SaRonix-eCera™ NX	50MHz	±25ppm	-40°C ~ 85°C
FK2400017	Diodes Incorporated	SaRonix-eCera™ FK	24MHz	±25ppm	-40°C ~ 85°C
FK2400017	Diodes Incorporated	SaRonix-eCera™ FK	24MHz	±25ppm	-40°C ~ 85°C
FK2400017	Diodes Incorporated	SaRonix-eCera™ FK	24MHz	±25ppm	-40°C ~ 85°C
FK2450016	Diodes Incorporated	SaRonix-eCera™ FK	24.576MHz	±25ppm	-20°C ~ 70°C
FK2450016	Diodes Incorporated	SaRonix-eCera™ FK	24.576MHz	±25ppm	-20°C ~ 70°C
FK2450016	Diodes Incorporated	SaRonix-eCera™ FK	24.576MHz	±25ppm	-20°C ~ 70°C
FK2500025	Diodes Incorporated	SaRonix-eCera™ FK	25MHz	±25ppm	-40°C ~ 85°C
FK2500025	Diodes Incorporated	SaRonix-eCera™ FK	25MHz	±25ppm	-40°C ~ 85°C
FK2500025	Diodes Incorporated	SaRonix-eCera™ FK	25MHz	±25ppm	-40°C ~ 85°C
FK2500067	Diodes Incorporated	SaRonix-eCera™ FK	25MHz	±50ppm	-40°C ~ 105°C
FK2500067	Diodes Incorporated	SaRonix-eCera™ FK	25MHz	±50ppm	-40°C ~ 105°C
FK2500067	Diodes Incorporated	SaRonix-eCera™ FK	25MHz	±50ppm	-40°C ~ 105°C
FN5000138	Diodes Incorporated	SaRonix-eCera™ FN	50MHz	±50ppm	-40°C ~ 85°C
FN5000138	Diodes Incorporated	SaRonix-eCera™ FN	50MHz	±50ppm	-40°C ~ 85°C
FN5000138	Diodes Incorporated	SaRonix-eCera™ FN	50MHz	±50ppm	-40°C ~ 85°C
FN5000145	Diodes Incorporated	SaRonix-eCera™ FN	50MHz	±50ppm	-40°C ~ 85°C
FN5000145	Diodes Incorporated	SaRonix-eCera™ FN	50MHz	±50ppm	-40°C ~ 85°C
FN5000145	Diodes Incorporated	SaRonix-eCera™ FN	50MHz	±50ppm	-40°C ~ 85°C
FN2500233Z	Diodes Incorporated	SaRonix-eCera™ FN	25MHz	±50ppm	-20°C ~ 70°C
FN2500233Z	Diodes Incorporated	SaRonix-eCera™ FN	25MHz	±50ppm	-20°C ~ 70°C
FN2500233Z	Diodes Incorporated	SaRonix-eCera™ FN	25MHz	±50ppm	-20°C ~ 70°C

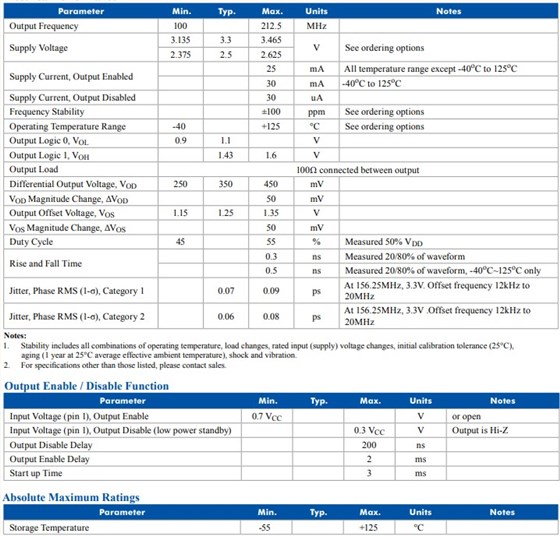

Product Parameters

Stability (PPM)	20to100
Package Size (mm)	2.5 x 2.0 x 0.8
PkgType	Ceramic Seam
Freq Range (MHz)	100 to 212.5
Jitter RMS (ps)	0.08 to 0.09
Output Logic	LVDS
Supply Voltage (V)	3.3, 2.5
Pads	6
ProductSeries	UF2

UF253/UF23系列超低抖动LVDS晶体振荡器,UF2532DC0156.250000,有源晶振,ECERA晶振

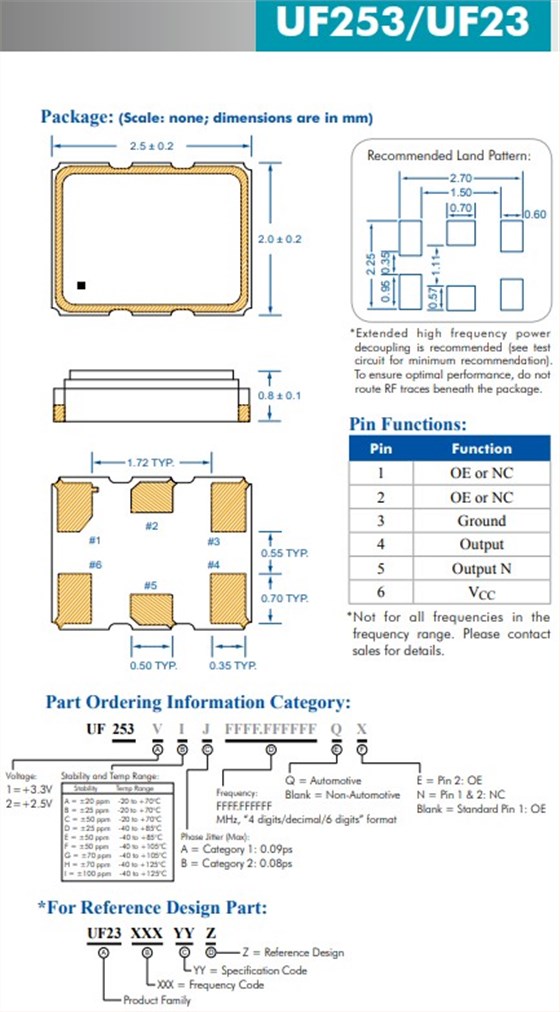

产品参数：

稳定性 20PPM到100PPM
包装尺寸 2.5x2.0x0.8mm有源晶体
包装类型陶瓷缝
频率范围 100MHz至212.5MHz
抖动均方根 (ps) 0.08ps至0.09ps
输出逻辑 LVDS
电源电压 3.3V, 2.5V
垫 6脚
产品系列 UF2

FN2500258Z	Diodes Incorporated	SaRonix-eCera™ FN	25MHz	±50ppm	-20°C ~ 70°C
FN2500258Z	Diodes Incorporated	SaRonix-eCera™ FN	25MHz	±50ppm	-20°C ~ 70°C
FN2500258Z	Diodes Incorporated	SaRonix-eCera™ FN	25MHz	±50ppm	-20°C ~ 70°C
FN2500264Z	Diodes Incorporated	SaRonix-eCera™ FN	25MHz	±50ppm	-20°C ~ 70°C
FN2500264Z	Diodes Incorporated	SaRonix-eCera™ FN	25MHz	±50ppm	-20°C ~ 70°C
FN2500264Z	Diodes Incorporated	SaRonix-eCera™ FN	25MHz	±50ppm	-20°C ~ 70°C
FN5000109	Diodes Incorporated	SaRonix-eCera™ FN	50MHz	±25ppm	-20°C ~ 70°C
FN5000109	Diodes Incorporated	SaRonix-eCera™ FN	50MHz	±25ppm	-20°C ~ 70°C
FN5000109	Diodes Incorporated	SaRonix-eCera™ FN	50MHz	±25ppm	-20°C ~ 70°C
FN1200041Z	Diodes Incorporated	SaRonix-eCera™ FN	12MHz	±50ppm	-40°C ~ 85°C
FN1200041Z	Diodes Incorporated	SaRonix-eCera™ FN	12MHz	±50ppm	-40°C ~ 85°C
FN1200041Z	Diodes Incorporated	SaRonix-eCera™ FN	12MHz	±50ppm	-40°C ~ 85°C
NX7125003Z	Diodes Incorporated	SaRonix-eCera™ NX	25MHz	±50ppm	-20°C ~ 70°C
NX7125003Z	Diodes Incorporated	SaRonix-eCera™ NX	25MHz	±50ppm	-20°C ~ 70°C
NX7125003Z	Diodes Incorporated	SaRonix-eCera™ NX	25MHz	±50ppm	-20°C ~ 70°C
FK1220016Z	Diodes Incorporated	SaRonix-eCera™ FK	12.288MHz	±50ppm	-40°C ~ 85°C
FK1220016Z	Diodes Incorporated	SaRonix-eCera™ FK	12.288MHz	±50ppm	-40°C ~ 85°C
FK1220016Z	Diodes Incorporated	SaRonix-eCera™ FK	12.288MHz	±50ppm	-40°C ~ 85°C
NX7011D0074.250000	Diodes Incorporated	SaRonix-eCera™ NX	74.25MHz	±25ppm	-40°C ~ 85°C
NX7011D0074.250000	Diodes Incorporated	SaRonix-eCera™ NX	74.25MHz	±25ppm	-40°C ~ 85°C
NX7011D0074.250000	Diodes Incorporated	SaRonix-eCera™ NX	74.25MHz	±25ppm	-40°C ~ 85°C
FNDDR1133	Diodes Incorporated	SaRonix-eCera™ ASSP XO™	133.33MHz	±50ppm	-20°C ~ 70°C
FNDDR1133	Diodes Incorporated	SaRonix-eCera™ ASSP XO™	133.33MHz	±50ppm	-20°C ~ 70°C
FNDDR1133	Diodes Incorporated	SaRonix-eCera™ ASSP XO™	133.33MHz	±50ppm	-20°C ~ 70°C
FJ2500009	Diodes Incorporated	SaRonix-eCera™ FJ	25MHz	±25ppm	-40°C ~ 85°C

FJ2500009	Diodes Incorporated	SaRonix-eCera™ FJ	25MHz	±25ppm	-40°C ~ 85°C
FJ2500009	Diodes Incorporated	SaRonix-eCera™ FJ	25MHz	±25ppm	-40°C ~ 85°C
NX7011D0074.175824	Diodes Incorporated	SaRonix-eCera™ NX	74.175824MHz	±25ppm	-40°C ~ 85°C
NX7011D0074.175824	Diodes Incorporated	SaRonix-eCera™ NX	74.175824MHz	±25ppm	-40°C ~ 85°C
NX7011D0074.175824	Diodes Incorporated	SaRonix-eCera™ NX	74.175824MHz	±25ppm	-40°C ~ 85°C
FJ2500036Z	Diodes Incorporated	SaRonix-eCera™ FJ	25MHz	±25ppm	-20°C ~ 70°C
FJ2500036Z	Diodes Incorporated	SaRonix-eCera™ FJ	25MHz	±25ppm	-20°C ~ 70°C
FJ2500036Z	Diodes Incorporated	SaRonix-eCera™ FJ	25MHz	±25ppm	-20°C ~ 70°C
HX7011C0050.000000	Diodes Incorporated	SaRonix-eCera™ HX	50MHz	±25ppm	-40°C ~ 105°C
HX7011C0050.000000	Diodes Incorporated	SaRonix-eCera™ HX	50MHz	±25ppm	-40°C ~ 105°C
HX7011C0050.000000	Diodes Incorporated	SaRonix-eCera™ HX	50MHz	±25ppm	-40°C ~ 105°C
SHA000001	Diodes Incorporated	SaRonix-eCera™ SH	100MHz	±50ppm	-40°C ~ 85°C
SHA000001	Diodes Incorporated	SaRonix-eCera™ SH	100MHz	±50ppm	-40°C ~ 85°C
SHA000001	Diodes Incorporated	SaRonix-eCera™ SH	100MHz	±50ppm	-40°C ~ 85°C
HX7013D0100.000000	Diodes Incorporated	SaRonix-eCera™ HX	100MHz	±50ppm	-40°C ~ 90°C
HX7013D0100.000000	Diodes Incorporated	SaRonix-eCera™ HX	100MHz	±50ppm	-40°C ~ 90°C
HX7013D0100.000000	Diodes Incorporated	SaRonix-eCera™ HX	100MHz	±50ppm	-40°C ~ 90°C
FN3300073	Diodes Incorporated	SaRonix-eCera™ FN	33MHz	±50ppm	-40°C ~ 85°C
NX7021D0148.351648	Diodes Incorporated	SaRonix-eCera™ NX	148.351648MHz	±25ppm	-40°C ~ 85°C
NX7021D0148.351648	Diodes Incorporated	SaRonix-eCera™ NX	148.351648MHz	±25ppm	-40°C ~ 85°C
NX7021D0148.351648	Diodes Incorporated	SaRonix-eCera™ NX	148.351648MHz	±25ppm	-40°C ~ 85°C
NX7031D0200.000000	Diodes Incorporated	SaRonix-eCera™ NX	200MHz	±25ppm	-40°C ~ 85°C
NX7031D0200.000000	Diodes Incorporated	SaRonix-eCera™ NX	200MHz	±25ppm	-40°C ~ 85°C
NX7031D0200.000000	Diodes Incorporated	SaRonix-eCera™ NX	200MHz	±25ppm	-40°C ~ 85°C
NX7021D0622.080000	Diodes Incorporated	SaRonix-eCera™ NX	622.08MHz	±25ppm	-40°C ~ 85°C

UF253/UF23系列超低抖动LVDS晶体振荡器,UF2532DC0156.250000,有源晶振,ECERA晶振
UF系列为高速提供超低抖动
为高性能应用提供尽可能小的封装。
UF系列XO振荡器
超低均方根抖动(典型值低至50fs)
超过苛刻应用的要求，并且提供广泛的设计余量
2.5毫米x2.0mm毫米大小的包装:
优化电路板空间以支持微型系统设计
宽温度范围(-40℃至125℃)
符合汽车行业标准(符合AEC-Q104)的版本
支持在恶劣环境中运行的加固设备设计

应用程序：光学模块，网络系统，测试和测量，装备，112G系列应用，PCIe 5.0建筑，系统，服务器和存储系统，专业视频设备 FPGA/ASIC参考时钟，发电机

NX7021D0622.080000	Diodes Incorporated	SaRonix-eCera™ NX	622.08MHz	±25ppm	-40°C ~ 85°C
NX7021D0622.080000	Diodes Incorporated	SaRonix-eCera™ NX	622.08MHz	±25ppm	-40°C ~ 85°C
NX7031D0644.531250	Diodes Incorporated	SaRonix-eCera™ NX	644.53125MHz	±25ppm	-40°C ~ 85°C
NX7031D0644.531250	Diodes Incorporated	SaRonix-eCera™ NX	644.53125MHz	±25ppm	-40°C ~ 85°C
NX7031D0644.531250	Diodes Incorporated	SaRonix-eCera™ NX	644.53125MHz	±25ppm	-40°C ~ 85°C
WF7021B0622.080000	Diodes Incorporated	SaRonix-eCera™ WF	622.08MHz	±5ppm	-40°C ~ 85°C
WF7021B0622.080000	Diodes Incorporated	SaRonix-eCera™ WF	622.08MHz	±5ppm	-40°C ~ 85°C
WF7021B0622.080000	Diodes Incorporated	SaRonix-eCera™ WF	622.08MHz	±5ppm	-40°C ~ 85°C
WF9021B0622.080000	Diodes Incorporated	SaRonix-eCera™ WF	622.08MHz	±5ppm	-40°C ~ 85°C
WF9021B0622.080000	Diodes Incorporated	SaRonix-eCera™ WF	622.08MHz	±5ppm	-40°C ~ 85°C
WF9021B0622.080000	Diodes Incorporated	SaRonix-eCera™ WF	622.08MHz	±5ppm	-40°C ~ 85°C
KD3270040	Diodes Incorporated	SaRonix-eCera™ KD	32.768kHz	±25ppm	-40°C ~ 85°C
KD3270040	Diodes Incorporated	SaRonix-eCera™ KD	32.768kHz	±25ppm	-40°C ~ 85°C
KD3270040	Diodes Incorporated	SaRonix-eCera™ KD	32.768kHz	±25ppm	-40°C ~ 85°C
KD3270046Z	Diodes Incorporated	SaRonix-eCera™ KD	32.768kHz	±50ppm	-40°C ~ 85°C
KD3270046Z	Diodes Incorporated	SaRonix-eCera™ KD	32.768kHz	±50ppm	-40°C ~ 85°C
KD3270046Z	Diodes Incorporated	SaRonix-eCera™ KD	32.768kHz	±50ppm	-40°C ~ 85°C
JX5011C0056.000000	Diodes Incorporated	SaRonix-eCera™ JX	56MHz	±50ppm	-20°C ~ 70°C
JX5011C0056.000000	Diodes Incorporated	SaRonix-eCera™ JX	56MHz	±50ppm	-20°C ~ 70°C
JX5011C0056.000000	Diodes Incorporated	SaRonix-eCera™ JX	56MHz	±50ppm	-20°C ~ 70°C
KK3270050	Diodes Incorporated	SaRonix-eCera™ KK	32.768kHz	±25ppm	-20°C ~ 70°C
KK3270050	Diodes Incorporated	SaRonix-eCera™ KK	32.768kHz	±25ppm	-20°C ~ 70°C
KK3270050	Diodes Incorporated	SaRonix-eCera™ KK	32.768kHz	±25ppm	-20°C ~ 70°C
JT255CF0026.000000	Diodes Incorporated	SaRonix-eCera™ JT	26MHz	±500ppb	-30°C ~ 85°C
JT255CF0026.000000	Diodes Incorporated	SaRonix-eCera™ JT	26MHz	±500ppb	-30°C ~ 85°C

UF253/UF23系列超低抖动LVDS晶体振荡器,UF2532DC0156.250000,有源晶振,ECERA晶振

我们的晶体振荡器(CXO)提供高价值、卓越的性能和功能以及卓越的品质和服务。我们为批量生产提供快速周转样品、响应式技术支持和快速交货时间。
提供多种类型和特性：
1) 尺寸从7x5mm到2.0x1.6mm，高性能有源晶体
2) 传统CXO的温度稳定性为±5PPM，
3) CMOS/TTL、LVPECL、LVDS、HCSL的输出逻辑格式，和慢性粒细胞白血病。
我们的CXO被领先制造商用于各种要求苛刻的应用，从消费类到工业、汽车 (AEC-Q200/AEC-Q104)、网络、存储、计算、电信等。
