BC26EFD120-75.000000,6035mm,75MHz,BC26,Bomar贴片晶振，美国进口晶振，Bomar晶振，博马尔晶振，型号：BC26，编码为：BC26EFD120-75.000000，频率为：75.000MHz，小体积晶振尺寸：6.0x3.5x1.0mm，四脚贴片晶振，无源晶振，石英晶振，石英晶体谐振器，SMD晶振，贴片石英晶振，超小型晶振，轻薄型晶振，无铅环保晶振，6035晶振，BC26晶体是一个尺寸为6035mm的超薄金属包。它的陶瓷底座和金属覆盖，它提供了耐久性和可靠性必要的艰苦过程，如红外和气相回流。应用程序：包括PMCIA、无线应用、汽车电子、通信设备，测试设备等。

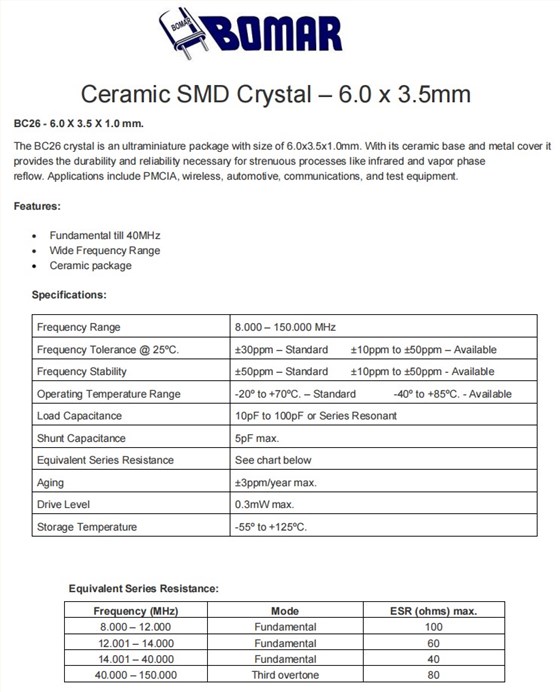

BC26EFD120-75.000000,6035mm,75MHz,BC26,Bomar贴片晶振,参数表
Frequency Range
75.000 MHz
Frequency Tolerance @ 25ºC.
±30ppm - Standard±10ppm to ±50ppm - Available
Frequency Stability
±50ppm - Standard±10ppm to ±50ppm - Available
Operating Temperature Range
-20º to +70ºC. - Standard-40º to +85ºC. - Available
Load Capacitance
10pF to 100pF or Series Resonant
Shunt Capacitance
5pF max.
Equivalent Series Resistance
See chart below
Aging
±3ppm/year max.
Drive Level
0.3mW max.
Storage Temperature
-55º to +125ºC.

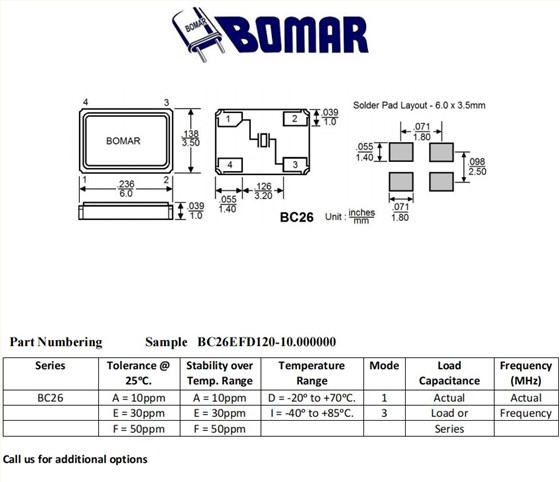

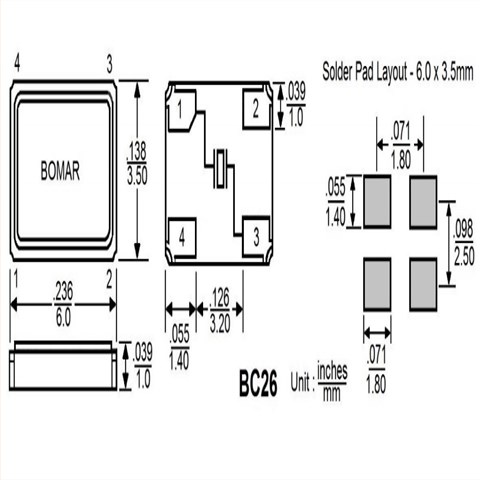

BC26EFD120-75.000000,6035mm,75MHz,BC26,Bomar贴片晶振,尺寸图
BC26EFD120-75.000000,6035mm,75MHz,BC26,Bomar贴片晶振
产品特点：
外形尺寸：6.0x3.5x1.0mm陶瓷包装
基本频率至40MHz石英晶振
宽频率范围：8MHz~150MHz
