进口晶振,Q-26.0-JXS11-12-10/10-FU-LF,26MHz,Jauch晶体,JXS11,1612谐振器

进口晶振,Q-26.0-JXS11-12-10/10-FU-LF,26MHz,Jauch晶体,JXS11,1612谐振器

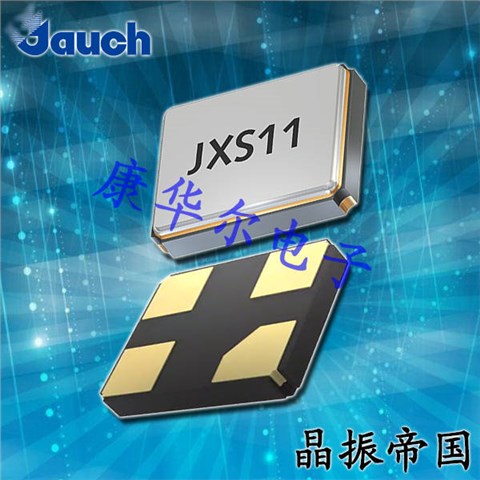

进口晶振中编码为Q-26.0-JXS11-12-10/10-FU-LF的Jauch晶体，其型号是JXS11。该晶振的频率是26MHz，频率容差为±10ppm，负载电容是12pF，ESR（等效串联电阻）为90 Ohms，其工作温度是-20~70度，尺寸为1.6x1.2mm，所以该晶振也叫1612谐振器。1612晶振是目前 MHZ 系列中体积最小的一款贴片晶振，外观就是一粒米大小，1612贴片晶振系列产品不仅体积小型，该系列产品满足了市场上对小型化产品的要求。1612石英贴片晶振采用编带封装，焊接方式使用现代 SMT 贴片高速焊接，提高生产效率，节省人工。法国Jauch晶振公司是一家行业赫赫有名的石英晶振制造公司。通过深入的技术咨询，高级应用和认证专业知识，先进的测试环境，高可用性和快速交付产品以及全球最大的频率发生设备仓库，彰显其领导地位。

Japan2 进口晶振,Q-26.0-JXS11-12-10/10-FU-LF,26MHz,Jauch晶体,JXS11,1612谐振器

品牌	JAUCH
编码	Q-26.0-JXS11-12-10/10-FU-LF
型号	JXS11
频率	26MHz
精度	±10ppm
负载	12pF
尺寸	1.6x1.2mm
工作温度	-20℃~70℃

JXS11 2 Japan3 进口晶振,Q-26.0-JXS11-12-10/10-FU-LF,26MHz,Jauch晶体,JXS11,1612谐振器

jxs11 1612 更多相关晶振参考

编码	品牌	系列	频率	频率容差	负载电容
Q 40.0-JXS11-8-10/10-FU-LF	法国Jauch晶振	JXS11	40MHz	±10ppm	8pF
Q 26.0-JXS11-12-10/10-FU-LF	Jauch	JXS11	26MHz	±10ppm	12pF
Q 32.0-JXS11-8-10/10-FU-LF	Jauch	JXS11	32MHz	±10ppm	8pF
Q 50.0-JXS11-8-10/10-FU-LF	Jauch	JXS11	50MHz	±10ppm	8pF
Q 32.0-JXS11-10-10/10-FU-LF	Jauch	JXS11	32MHz	±10ppm	10pF
Q 27.120-JXS11-8-10/10-FU-LF	Jauch	JXS11	27.12MHz	±10ppm	8pF
Q 50.0-JXS11-12-10/20-T1-FU-LF	Jauch	JXS11	50MHz	±10ppm	12pF
Q 27.120-JXS11-8-10/20-T1-FU-LF	Jauch	JXS11	27.12MHz	±10ppm	8pF
Q 32.0-JXS11-10-10/20-T1-FU-LF	Jauch	JXS11	32MHz	±10ppm	10pF
Q 40.0-JXS11-12-10/10-FU-LF	Jauch	JXS11	40MHz	±10ppm	12pF
Q 40.0-JXS11-10-10/10-FU-LF	Jauch	JXS11	40MHz	±10ppm	10pF
Q 25.0-JXS11-12-10/10-FU-LF	Jauch	JXS11	25MHz	±10ppm	12pF
Q 25.0-JXS11-12-10/20-T1-FU-LF	Jauch	JXS11	25MHz	±10ppm	12pF
Q 50.0-JXS11-8-10/20-T1-FU-LF	Jauch	JXS11	50MHz	±10ppm	8pF
Q 50.0-JXS11-10-10/20-T1-FU-LF	Jauch	JXS11	50MHz	±10ppm	10pF
Q 26.0-JXS11-12-10/20-T1-FU-LF	Jauch	JXS11	26MHz	±10ppm	12pF
Q 38.40-JXS11-12-10/10-FU-LF	Jauch	JXS11	38.4MHz	±10ppm	12pF
Q 25.0-JXS11-8-10/10-FU-LF	Jauch	JXS11	25MHz	±10ppm	8pF
Q 27.120-JXS11-12-10/10-FU-LF	Jauch	JXS11	27.12MHz	±10ppm	12pF
Q 24.0-JXS11-10-10/10-FU-LF	Jauch	JXS11	24MHz	±10ppm	10pF
Q 38.40-JXS11-10-10/20-T1-FU-LF	Jauch	JXS11	38.4MHz	±10ppm	10pF
Q 38.40-JXS11-8-10/10-FU-LF	Jauch	JXS11	38.4MHz	±10ppm	8pF
Q 50.0-JXS11-10-10/10-FU-LF	Jauch	JXS11	50MHz	±10ppm	10pF
Q 40.0-JXS11-8-10/20-T1-FU-LF	Jauch	JXS11	40MHz	±10ppm	8pF
Q 27.120-JXS11-10-10/10-FU-LF	Jauch	JXS11	27.12MHz	±10ppm	10pF
Q 27.0-JXS11-12-10/10-FU-LF	Jauch	JXS11	27MHz	±10ppm	12pF
Q 26.0-JXS11-10-10/10-FU-LF	Jauch	JXS11	26MHz	±10ppm	10pF
Q 38.40-JXS11-10-10/10-FU-LF	Jauch	JXS11	38.4MHz	±10ppm	10pF
Q 27.0-JXS11-10-10/10-FU-LF	Jauch	JXS11	27MHz	±10ppm	10pF
Q 30.0-JXS11-12-10/10-FU-LF	Jauch	JXS11	30MHz	±10ppm	12pF
Q 27.0-JXS11-8-10/10-FU-LF	Jauch	JXS11	27MHz	±10ppm	8pF
Q 30.0-JXS11-10-10/10-FU-LF	Jauch	JXS11	30MHz	±10ppm	10pF
Q 26.0-JXS11-8-10/10-FU-LF	Jauch	JXS11	26MHz	±10ppm	8pF
Q 32.0-JXS11-12-10/10-FU-LF	Jauch	JXS11	32MHz	±10ppm	12pF
Q 25.0-JXS11-10-10/10-FU-LF	Jauch	JXS11	25MHz	±10ppm	10pF
Q 24.0-JXS11-12-10/10-FU-LF	Jauch	JXS11	24MHz	±10ppm	12pF
Q 24.0-JXS11-8-10/10-FU-LF	Jauch	JXS11	24MHz	±10ppm	8pF
Q 30.0-JXS11-8-10/10-FU-LF	Jauch	JXS11	30MHz	±10ppm	8pF
Q 50.0-JXS11-12-10/10-FU-LF	Jauch	JXS11	50MHz	±10ppm	12pF
Q 30.0-JXS11-12-10/20-T1-FU-LF	Jauch	JXS11	30MHz	±10ppm	12pF
Q 27.120-JXS11-12-10/20-T1-FU-LF	Jauch	JXS11	27.12MHz	±10ppm	12pF
Q 26.0-JXS11-8-10/20-T1-FU-LF	Jauch	JXS11	26MHz	±10ppm	8pF
Q 40.0-JXS11-12-10/20-T1-FU-LF	Jauch	JXS11	40MHz	±10ppm	12pF
Q 30.0-JXS11-10-10/20-T1-FU-LF	Jauch	JXS11	30MHz	±10ppm	10pF
Q 27.0-JXS11-12-10/20-T1-FU-LF	Jauch	JXS11	27MHz	±10ppm	12pF
Q 24.0-JXS11-8-10/20-T1-FU-LF	Jauch	JXS11	24MHz	±10ppm	8pF
Q 24.0-JXS11-10-10/20-T1-FU-LF	Jauch	JXS11	24MHz	±10ppm	10pF
Q 24.0-JXS11-12-10/20-T1-FU-LF	Jauch	JXS11	24MHz	±10ppm	12pF
Q 38.40-JXS11-8-10/20-T1-FU-LF	Jauch	JXS11	38.4MHz	±10ppm	8pF
Q 40.0-JXS11-10-10/20-T1-FU-LF	Jauch	JXS11	40MHz	±10ppm	10pF
Q 25.0-JXS11-10-10/20-T1-FU-LF	Jauch	JXS11	25MHz	±10ppm	10pF
Q 25.0-JXS11-8-10/20-T1-FU-LF	Jauch	JXS11	25MHz	±10ppm	8pF
Q 30.0-JXS11-8-10/20-T1-FU-LF	Jauch	JXS11	30MHz	±10ppm	8pF
Q 26.0-JXS11-10-10/20-T1-FU-LF	Jauch	JXS11	26MHz	±10ppm	10pF
Q 32.0-JXS11-8-10/20-T1-FU-LF	Jauch	JXS11	32MHz	±10ppm	8pF
Q 38.40-JXS11-12-10/20-T1-FU-LF	Jauch	JXS11	38.4MHz	±10ppm	12pF
Q 27.120-JXS11-10-10/20-T1-FU-LF	Jauch	JXS11	27.12MHz	±10ppm	10pF
Q 27.0-JXS11-8-10/20-T1-FU-LF	Jauch	JXS11	27MHz	±10ppm	8pF
Q 27.0-JXS11-10-10/20-T1-FU-LF	Jauch	JXS11	27MHz	±10ppm	10pF
Q 32.0-JXS11-12-10/20-T1-FU-LF	Jauch	JXS11	32MHz	±10ppm	12pF
