R38-32.768-12.5,32.768K,美国拉隆无源晶振,插件石英晶振

R38-32.768-12.5,32.768K,美国拉隆无源晶振,插件石英晶振，无源晶体谐振器，两脚插件晶振，进口石英谐振器，石英晶体，编码为：R38-32.768-12.5，频率：32.768 kHz，频率公差为：±20ppm，负载电容为：12.5PF，工作温度范围：-20℃至+70℃，晶振体积尺寸为：3.2mm，拉隆无源晶体，美国进口石英晶振，该产品为两脚金属面石英晶振，表面金属封装，是具备高可靠的环保性能晶体，产品小型，薄型，轻型，具备优良的耐环境特性及高耐热性，市场上经常应用于USB接口晶振，智能水表晶振和U盘晶振等产品。

R38-32.768-12.5,32.768K,美国拉隆无源晶振,插件石英晶振，无源晶体谐振器，两脚插件晶振，进口石英谐振器，石英晶体，编码为：R38-32.768-12.5，频率：32.768 kHz，频率公差为：±20ppm，负载电容为：12.5PF，工作温度范围：-20℃至+70℃，晶振体积尺寸为：3.2mm，拉隆无源晶体，美国进口石英晶振，该产品为两脚金属面石英晶振，表面金属封装，是具备高可靠的环保性能晶体，产品小型，薄型，轻型，具备优良的耐环境特性及高耐热性，市场上经常应用于USB接口晶振，智能水表晶振和U盘晶振等产品。

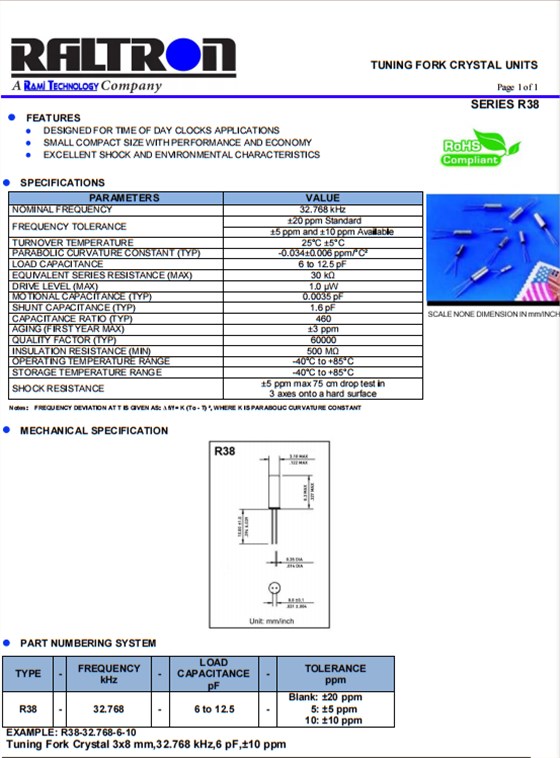

R38-32.768-12.5,32.768K,美国拉隆无源晶振,插件石英晶振，参数表

编码	品牌	型号	频率	频率公差	负载电容	工作温度	尺寸
R38-32.768-12.5	拉隆晶振	R38	32.768 kHz	±20ppm	12.5pF	-20°C ~ 70°C	3.20mm

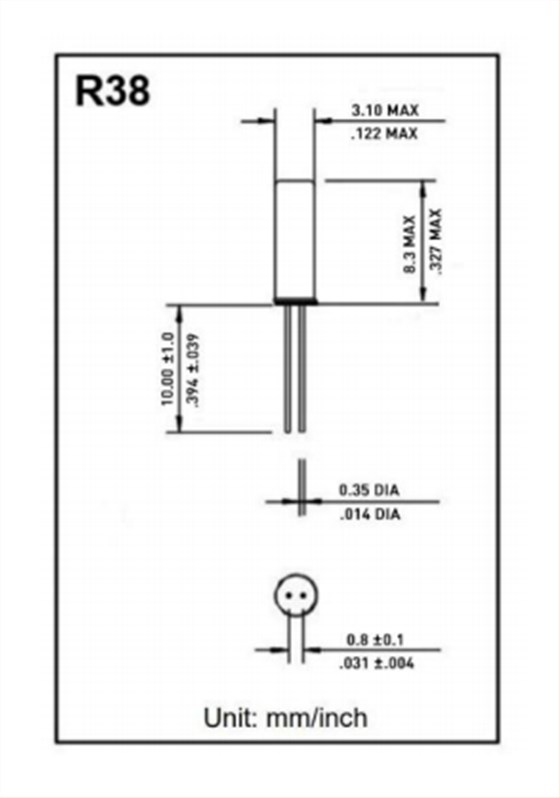

R38-32.768-12.5,32.768K,美国拉隆无源晶振,插件石英晶振，尺寸图

编码	品牌	型号	频率	频率公差	负载电容	工作温度
R38-32.768-12.5	Raltron Crystal	R38	32.768 kHz	±20ppm	12.5pF	-20°C ~ 70°C
R26-32.768-12.5	Raltron Crystal	R26	32.768 kHz	±20ppm	12.5pF	-40°C ~ 85°C
RH100-12.000-20-3030-EXT-TR	Raltron Crystal	RH100	12 MHz	±30ppm	20pF	-40°C ~ 85°C
RH100-12.000-18-2020-TR	Raltron Crystal	RH100	12 MHz	±20ppm	18pF	-20°C ~ 70°C
RH100-24.000-18-2030-EXT-TR	Raltron Crystal	RH100	24 MHz	±20ppm	18pF	-40°C ~ 85°C
RH100-12.000-12-1010-EXT-TR	Raltron Crystal	RH100	12 MHz	±10ppm	12pF	-40°C ~ 85°C
RH100-12.000-9-1015-TR-NS1	Raltron Crystal	RH100	12 MHz	±10ppm	9pF	-20°C ~ 70°C
RH100-25.000-16-F-2020-EXT-TR	Raltron Crystal	RH100	25 MHz	±20ppm	16pF	-40°C ~ 85°C
RH100-24.000-8-1010-EXT-TR	Raltron Crystal	RH100	24 MHz	±10ppm	8pF	-40°C ~ 85°C
RH100-25.000-18-F-1010-TR	Raltron Crystal	RH100	25 MHz	±10ppm	18pF	-20°C ~ 70°C
RH100-16.000-8-1010-TR	Raltron Crystal	RH100	16 MHz	±10ppm	8pF	-20°C ~ 70°C
RH100-25.000-10-F-1010-EXT-TR	Raltron Crystal	RH100	25 MHz	±10ppm	10pF	-40°C ~ 85°C
R2520-32.000-8-F-1030-EXT-TR	Raltron Crystal	R2520	32 MHz	±10ppm	8pF	-40°C ~ 85°C
AS-3.579545-18	Raltron Crystal	AS	3.579545 MHz	±30ppm	18pF	-20°C ~ 70°C
AS-4.000-18	Raltron Crystal	AS	4 MHz	±30ppm	18pF	-20°C ~ 70°C
AS-20.000-20	Raltron Crystal	AS	20 MHz	±30ppm	20pF	-20°C ~ 70°C
AS-11.0592-18-EXT	Raltron Crystal	AS	11.0592 MHz	±30ppm	18pF	-40°C ~ 85°C
AS-16.000-20-EXT	Raltron Crystal	AS	16 MHz	±30ppm	20pF	-40°C ~ 85°C
AS-27.000-20-F	Raltron Crystal	AS	27 MHz	±30ppm	20pF	-20°C ~ 70°C
AS-25.000-18-F-EXT	Raltron Crystal	AS	25 MHz	±30ppm	18pF	-40°C ~ 85°C
R2520-12.000-8-1030-EXT-TR	Raltron Crystal	R2520	12 MHz	±10ppm	8pF	-40°C ~ 85°C
RT3215-32.768-9-TR	Raltron Crystal	RT3215	32.768 kHz	±20ppm	9pF	-40°C ~ 85°C
RSM200S-32.768-6-TR	Raltron Crystal	RSM200S	32.768 kHz	±20ppm	6pF	-40°C ~ 85°C
H130B-16.000-18-3030-EXT-TR	Raltron Crystal	H130B	16 MHz	±30ppm	18pF	-40°C ~ 85°C
H130B-12.000-18-3030-TR	Raltron Crystal	H130B	12 MHz	±30ppm	18pF	-20°C ~ 70°C
H130B-24.000-18-3030-EXT-TR	Raltron Crystal	H130B	24 MHz	±30ppm	18pF	-40°C ~ 85°C
RSE-32.768-12.5-H14-TR	Raltron Crystal	RSE H14	32.768 kHz	±50ppm	12.5pF	-20°C ~ 70°C
RH100-8.000-10-1010-EXT-TR	Raltron Crystal	RH100	8 MHz	±10ppm	10pF	-40°C ~ 85°C
H130A-8.000-8-2030-TR	Raltron Crystal	H130A	8 MHz	±20ppm	8pF	-20°C ~ 70°C
RH100-8.000-8-2020-TR	Raltron Crystal	RH100	8 MHz	±20ppm	8pF	-20°C ~ 70°C
RT2012-32.768-6-TR	Raltron Crystal	RT2012	32.768 kHz	±50ppm	6pF	-40°C ~ 85°C
RH100-8.000-16-3030-TR-NS1	Raltron Crystal	RH100	8 MHz	±30ppm	16pF	-20°C ~ 70°C
H13-8.000-18-3030-EXT-TR	Raltron Crystal	H13	8 MHz	±30ppm	18pF	-40°C ~ 85°C
AS-4.9152-18-EXT-SMD-TR	Raltron Crystal	AS-SMD	4.9152 MHz	±30ppm	18pF	-40°C ~ 85°C
AS-10.000-20-3030-SMD-TR	Raltron Crystal	AS-SMD	10 MHz	±30ppm	20pF	-20°C ~ 70°C
AS-30.000-10-F-2020-EXT-SMD-TR	Raltron Crystal	AS-SMD	30 MHz	±20ppm	10pF	-40°C ~ 85°C
AS-4.000-18-SMD-TR	Raltron Crystal	AS-SMD	4 MHz	±30ppm	18pF	-20°C ~ 70°C
AS-3.579545-18-SMD-TR	Raltron Crystal	AS-SMD	3.579545 MHz	±30ppm	18pF	-20°C ~ 70°C
AS-13.560-20-SMD-TR	Raltron Crystal	AS-SMD	13.56 MHz	±30ppm	20pF	-20°C ~ 70°C
AS-20.000-16-SMD-TR	Raltron Crystal	AS-SMD	20 MHz	±30ppm	16pF	-20°C ~ 70°C
AS-7.3728-20-EXT-SMD-TR	Raltron Crystal	AS-SMD	7.3728 MHz	±30ppm	20pF	-40°C ~ 85°C
AS-7.3728-18-SMD-TR	Raltron Crystal	AS-SMD	7.3728 MHz	±30ppm	18pF	-20°C ~ 70°C
RH100-13.560-10-1020-EXT-TR	Raltron Crystal	RH100	13.56 MHz	±10ppm	10pF	-40°C ~ 85°C
RH100-26.000-18-F-2030-EXT-TR	Raltron Crystal	RH100	26 MHz	±20ppm	18pF	-40°C ~ 85°C
RH100-24.000-9-1010-TR	Raltron Crystal	RH100	24 MHz	±10ppm	9pF	-20°C ~ 70°C
RH100-24.000-8-1530-EXT-TR	Raltron Crystal	RH100	24 MHz	±15ppm	8pF	-40°C ~ 85°C
RH100-10.000-10-5050-TR	Raltron Crystal	RH100	10 MHz	±50ppm	10pF	-20°C ~ 70°C
RH100-10.000-8-2020-TR	Raltron Crystal	RH100	10 MHz	±20ppm	8pF	-20°C ~ 70°C
RH100-24.000-20-3050-EXT-TR	Raltron Crystal	RH100	24 MHz	±30ppm	20pF	-40°C ~ 85°C
RH100-32.000-12-F-3030-TR	Raltron Crystal	RH100	32 MHz	±30ppm	12pF	-20°C ~ 70°C
RH100-50.000-12-F-1010-TR	Raltron Crystal	RH100	50 MHz	±10ppm	12pF	-20°C ~ 70°C
RH100-50.000-10-F-1015-EXT-TR	Raltron Crystal	RH100	50 MHz	±10ppm	10pF	-40°C ~ 85°C
RH100-16.000-9-1010-TR	Raltron Crystal	RH100	16 MHz	±10ppm	9pF	-20°C ~ 70°C
RH100-25.000-6-F-1010-TR	Raltron Crystal	RH100	25 MHz	±10ppm	6pF	-20°C ~ 70°C
RH100-25.000-8-F-1010-TR	Raltron Crystal	RH100	25 MHz	±10ppm	8pF	-20°C ~ 70°C
RH100-26.000-12-F-1010-EXT-TR	Raltron Crystal	RH100	26 MHz	±10ppm	12pF	-40°C ~ 85°C
RH100-32.000-10-F-1010-TR	Raltron Crystal	RH100	32 MHz	±10ppm	10pF	-20°C ~ 70°C
AS-8.000-20-SMD-TR	Raltron Crystal	AS-SMD	8 MHz	±30ppm	20pF	-20°C ~ 70°C
R2520-32.000-10-F-1010-TR-B1B	Raltron Crystal	R2520	32 MHz	±10ppm	10pF	-10°C ~ 60°C
AS-18.432-20	Raltron Crystal	AS	18.432 MHz	±30ppm	20pF	-20°C ~ 70°C
R2520-24.000-10-1010-TR-NS4	Raltron Crystal	R2520	24 MHz	±10ppm	10pF	-10°C ~ 60°C
RT3215-32.768-7-TR	Raltron Crystal	RT3215	32.768 kHz	±20ppm	7pF	-40°C ~ 85°C
RH100-8.000-20-3050-EXT-TR	Raltron Crystal	RH100	8 MHz	±30ppm	20pF	-40°C ~ 85°C
R2016-32.000-10-F-1020-EXT-TR	Raltron Crystal	R2016	32 MHz	±10ppm	10pF	-40°C ~ 85°C
R2016-32.000-12-F-1010-EXT-TR	Raltron Crystal	R2016	32 MHz	±10ppm	12pF	-40°C ~ 85°C
