NDK差分晶振,NP3225SA-150.000MHz-NSC5189A,汽车音响设备6G晶振

频率：150.000000MHz

尺寸：3.2x2.5x0.9mm

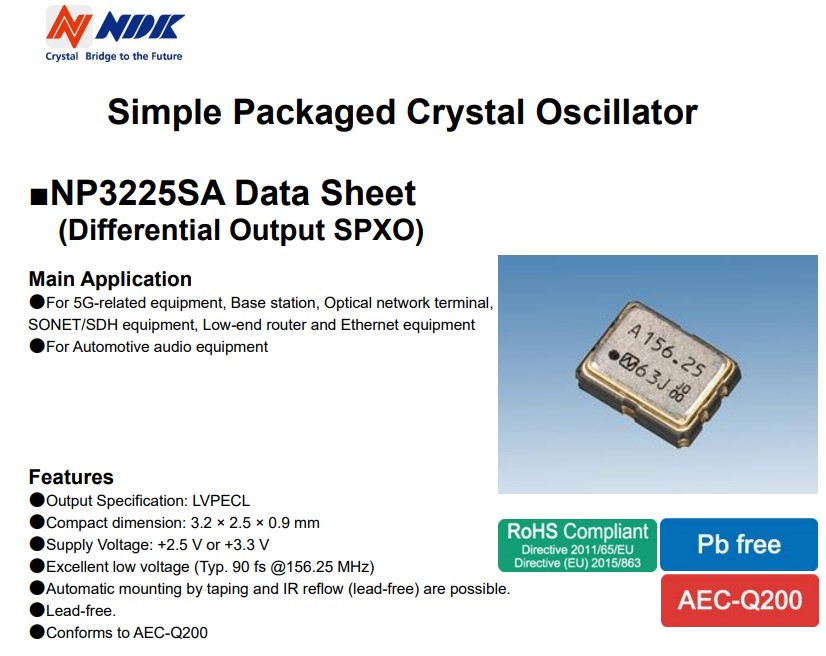

NDK差分晶振,NP3225SA-150.000MHz-NSC5189A,汽车音响设备6G晶振，日本进口晶振，NDK晶振，型号：NP3225SA，编码为：NP3225SA-150.000MHz-NSC5189A，频率为：150.000000MHz，小体积晶振尺寸：3.2x2.5x0.9mm，六脚贴片晶振，LV-PECL输出差分晶体振荡器，进口有源晶体，石英晶体振荡器，电源电压：+2.5 V或+3.3 V，极好的低电压（典型值：90 fs@156.25 MHz），工作温度范围：-40℃至+105℃，耐高温晶振，可以通过胶带和IR回流（无铅）进行自动安装。具有超小型，轻薄型，低抖动，低功耗，低电源电压，低耗能，低相位噪声，耐热及耐环境等特点。符合AEC-Q200，石英晶振应用于：基站，光网络终端，SONET/SDH设备、低端路由器和以太网设备，汽车音响设备，车载控制器，汽车电子设备，无线网络，蓝牙模块，物联网，机顶盒、路由器/交换机、仪器仪表、光纤通信，GPS全球定位系统等应用。

订购热线：0755-27838351

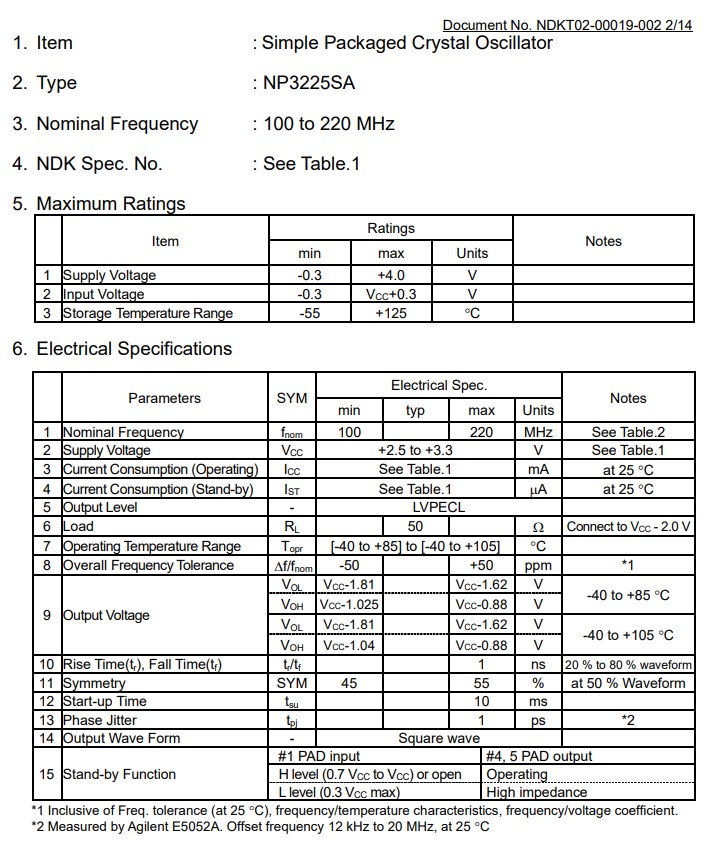

NDK差分晶振,NP3225SA-150.000MHz-NSC5189A,汽车音响设备6G晶振 ，参数表

Item	Symbol	NP3225SA参数说明				Unit
Nominal frequency range	fnom	100 to 175		175 to 220		MHz
Package size (L×W×H)	-	3.2×2.5×0.9				mm
Supply voltage	Vcc	+2.5 to +3.3				V
Current consumption	ICC	Max. 60		Max. 70		mA
Stand-by current	IST	Max. 15	Max. 30	Max. 15	Max. 30	μA
Output specification	-	LVPECL				-
Load	RL	50				Ω
Storage temperature range	Tstr	-55 to +125				℃
Operating temperature range	Topr	-40 to +85	-40 to +105	-40 to +85	-40 to +105	℃
Overall frequency tolerance	Δf/fnom	Max. ±50				ppm
Output voltage	VOL	VCC -1.81 to VCC -1.62 (-40 to +85℃)				V
Output voltage	VOH	VCC -1.025 to VCC -0.88 (-40 to +105℃)				V
Output voltage	VOL	VCC -1.81 to VCC -1.62 (-40 to +105℃)				V
Output voltage	VOH	VCC -1.04 to VCC -0.88 (-40 to +105℃)				V
Rise (tr), fall (tf) time (20% to 80% WaveForm)	tr/tf	Max. 1				ns
Symmetry (20% to 80% WaveForm)	SYM	45 to 55				%
Start-up time	tsu	Max. 10				ms
Phase jitter (F = 156.25 MHz)	tpj	Max. 1				ps
Specification number （Vcc=2.5V±5%）	-	NSC5080A	NSC5189A	NSC5235A	NSC5237A	-
Specification number （Vcc=3.3V±10%）	-	NSC5341B	NSC5342B	NSC5235B	NSC5237B	-

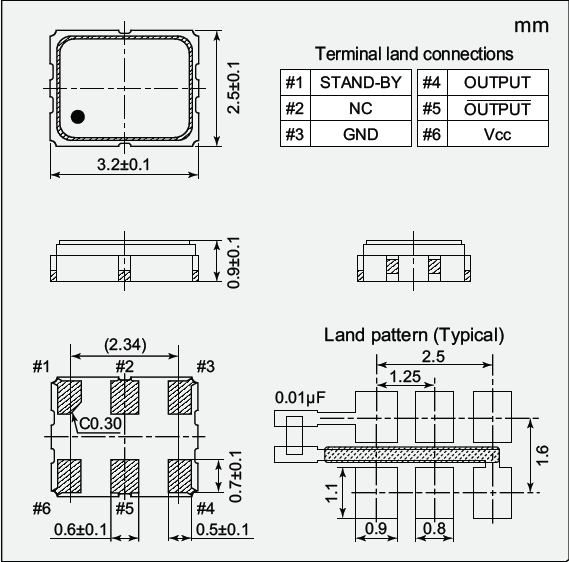

NDK差分晶振,NP3225SA-150.000MHz-NSC5189A,汽车音响设备6G晶振，尺寸图

NDK差分晶振,NP3225SA-150.000MHz-NSC5189A,汽车音响设备6G晶振

随着汽车时代的到来，加快了高科技的发展，同时也使得晶体行业之中的产品线发生了极大的变化，整个行业开始大量生产优质的晶振产品，而石英贴片晶振是汽车技术中最核心的电子零部件，其作用是提供高端基准时钟信号以及接收传输信号。

近几年互联网高速发展，随着6G时代的到来，智能汽车的发展也越发的迅速。汽车电子对晶振的要求比消费类的科技数码产品高的多，特别是耐高温这一块，汽车电子中的晶振最好能在高温和低温状态下正常工作。

生活中常见的高档游戏机、智能水表、蓝牙耳机、电风扇等电子设备都需要用到各种不同类型的晶振，对比汽车的应用场景来看，汽车电子产品对晶振的需求就非常明显了。
汽车的应用场景包括导航、远程呼叫、紧急救援、防盗跟踪、道路救援、电话、资讯娱乐、下载应用，自动驾驶等等，为了实现人与汽车系统自由的交互，并提供实时的信息互动、支付、交通、天气等功能，汽车对车规级晶振的依赖只会越来越强。

汽车系统中所用的晶体包括音响、蓝牙、雷达、时钟、显示屏等等不下5处，车载音响中用到的12M或者是16M、26M贴片晶振，时钟上到的是32.768kHz晶振，倒车雷达中也有用到晶振，像3225mm封装晶振16M、26M、32M都是雷达中比较常用的。
