QuartzCom石英通晶振,SMX-2C,6035mm,SMD石英晶体

频率：10.0~67.0MHz

尺寸：6.0mmx3.5mm

QuartzCom石英通晶振,SMX-2C,6035mm,SMD石英晶体，瑞士进口晶振，QuartzCom晶振，石英通晶振，型号：SMX-2C，是一款小体积晶振，尺寸：6.0mmx3.5mm封装，两脚贴片晶振，无源晶振，石英晶振，石英晶体谐振器，SMD石英晶体，无铅环保晶振，频率范围：10.0~67.0MHz，可靠、低成本的晶体，回流焊@260°C，工作温度范围：-20℃至+70℃商业应用，-40℃至+85℃工业应用，-40℃至+125℃汽车应用。SMD晶振，具有超小型，轻薄型，高精度，高性能，高品质，耐热及耐环境特点。6035晶振，应用于：电信晶振，音频晶振，导航晶振，仪器设备晶振，蓝牙晶振，汽车电子，车载控制器，通讯设备，无线蓝牙，智能家居等应用。

订购热线：0755-27838351

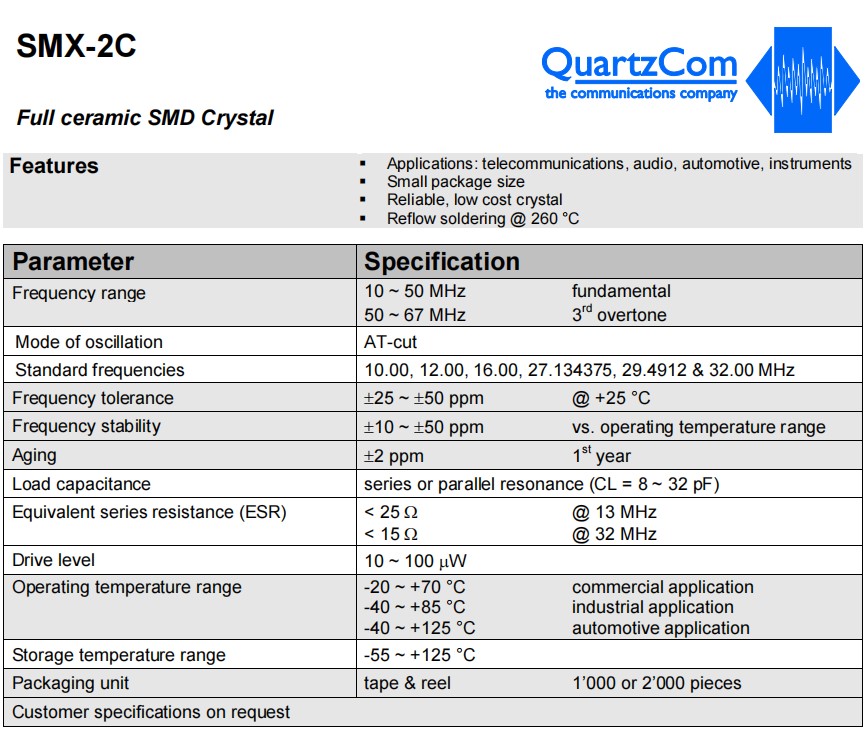

QuartzCom石英通晶振,SMX-2C,6035mm,SMD石英晶体,参数表

Parameter	Specification
Frequency range	10 ~ 50 MHz fundamental
Frequency range	50 ~ 67 MHz 3rd overtone
Mode of oscillation	AT-cut
Standard frequencies	10.00, 12.00, 16.00, 27.134375, 29.4912 & 32.00 MHz
Frequency tolerance	±25 ~ ±50 ppm @ +25 °C
Frequency stability	±10 ~ ±50 ppm vs. operating temperature range
Aging	±2 ppm 1st year
Load capacitance	series or parallel resonance (CL = 8 ~ 32 pF)
Equivalent series resistance (ESR)	< 25 Ω @ 13 MHz
Equivalent series resistance (ESR)	< 15 Ω @ 32 MHz
Drive level	10 ~ 100 μW
Operating temperature range	-20 ~ +70 °C commercial application
	-40 ~ +85 °C industrial application
	-40 ~ +125 °C automotive application
Storage temperature range	-55 ~ +125 °C
Packaging unit	tape & reel 1’000 or 2’000 pieces
Customer specifications on request
