Suntsu两脚贴片晶振,SWS21212D48-32.768K,仪器仪表设备晶振

频率:32.768KHz

尺寸:2.0x1.2mm

Suntsu两脚贴片晶振,SWS21212D48-32.768K,仪器仪表设备晶振美国进口晶振,Suntsu松图晶振,型号:SAS212,编码为:SWS21212D48-32.768K,频率为:32.768KHz,小体积晶振尺寸:2.0x1.2晶振,两脚贴片晶振,无源晶振,石英晶振,石英晶体谐振器,耐高温晶振,贴片表晶,手表晶体,无铅晶振,SMD石英晶体,工作温度范围:-40℃至+85℃。具有超小型,轻薄型,高精度,高性能,高品质,耐热及耐环境特点。无源贴片晶振应用于:通讯设备晶振,无线蓝牙,汽车电子,ECU子时钟,实时时钟,仪器仪表设备,钟表电子晶振,时钟晶振,智能手机,平板电脑,智能手表,数字显示,智能门锁,智能水电表,数码电子,智能家居等应用。
订购热线:0755-27838351
QQ咨询 点击这里给我发消息

Japan1

Suntsu两脚贴片晶振,SWS21212D48-32.768K,仪器仪表设备晶振美国进口晶振,Suntsu松图晶振,型号:SAS212,编码为:SWS21212D48-32.768K,频率为:32.768KHz,小体积晶振尺寸:2.0x1.2晶振,两脚贴片晶振,无源晶振,石英晶振,石英晶体谐振器,耐高温晶振,贴片表晶,手表晶体,无铅晶振,SMD石英晶体,工作温度范围:-40℃至+85℃。具有超小型,轻薄型,高精度,高性能,高品质,耐热及耐环境特点。无源贴片晶振应用于:通讯设备晶振,无线蓝牙,汽车电子,ECU子时钟,实时时钟,仪器仪表设备,钟表电子晶振,时钟晶振,智能手机,平板电脑,智能手表,数字显示,智能门锁,智能水电表,数码电子,智能家居等应用。

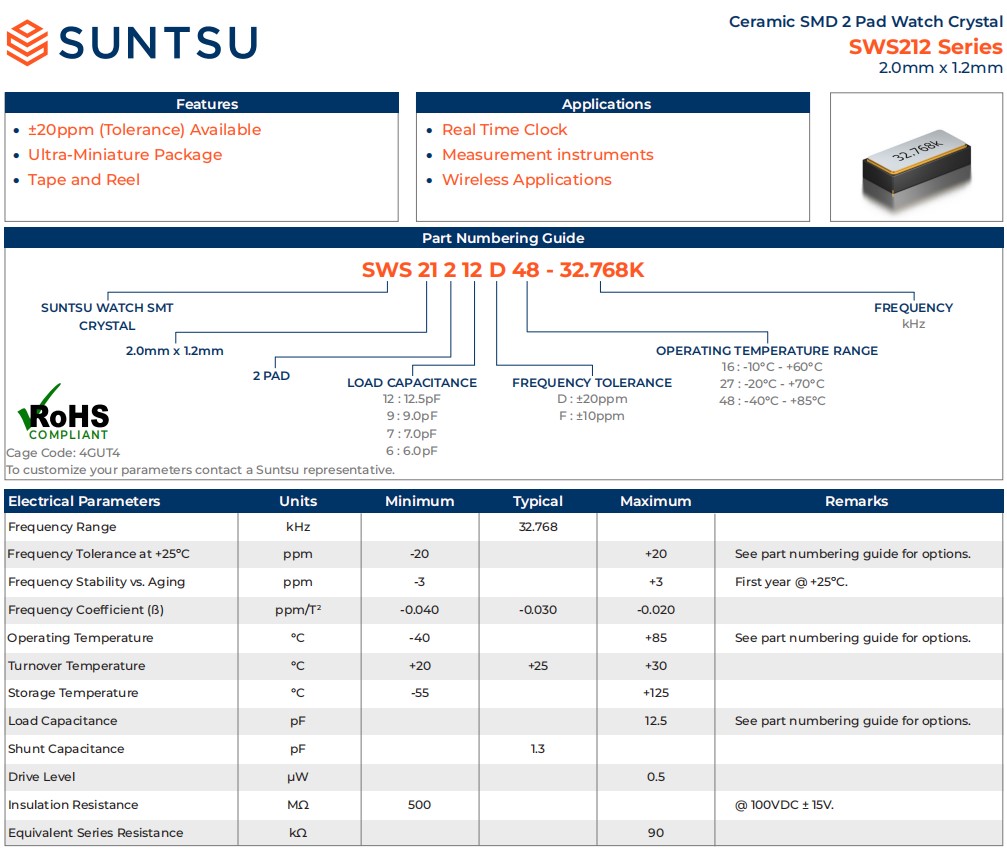

Japan2Suntsu两脚贴片晶振,SWS21212D48-32.768K,仪器仪表设备晶振,参数表

Electrical Parameters Units Minimum Typical Maximum Remarks
Frequency Range kHz 32.768
Frequency Tolerance at +25ºC ppm -20 +20      See part numbering guide for options.
Frequency Stability vs. Aging ppm -3 +3      First year @ +25ºC.
Frequency Coefficient (?) ppm/T2 -0.040 -0.030 -0.020
Operating Temperature °C -40 +85      See part numbering guide for options.
Turnover Temperature °C +20 +25 +30
Storage Temperature °C -55 +125
Load Capacitance pF 12.5      See part numbering guide for options.
Shunt Capacitance pF 1.3
Drive Level µW 0.5
Insulation Resistance 500      @ 100VDC ± 15V.
Equivalent Series Resistance 90

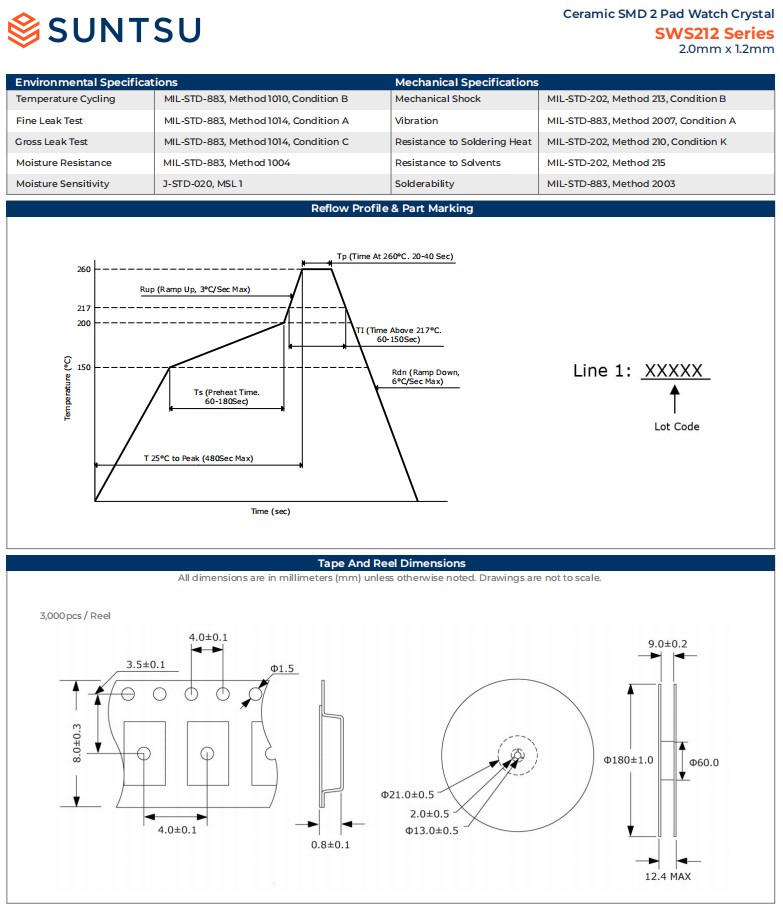

Japan3Suntsu两脚贴片晶振,SWS21212D48-32.768K,仪器仪表设备晶振,尺寸图

SWS212尺寸

Suntsu两脚贴片晶振,SWS21212D48-32.768K,仪器仪表设备晶振

产品特点:

外出尺寸:2.0x1.2mm

频率:32.768K晶振

±20ppm(公差)可用
超小型封装
磁带和卷轴
应用于:
实时时钟
测量仪器
无线应用程序

SWS212规格


SWS212规格1

晶振料号 包装尺寸 负载 频率容差 工作温度 频率
SWS10212D48-32.768K 1.2X1.0 CERAMIC SMD (2 PAD) Watch Crystal 12.5pF ±20ppm -40℃ - +85℃ 32.768K
SWS10209D16-32.768K 1.2X1.0 CERAMIC SMD (2 PAD) Watch Crystal 9pF ±20ppm -10℃ - +60℃ 32.768K
SWS10207D48-32.768K 1.2X1.0 CERAMIC SMD (2 PAD) Watch Crystal 7pF ±20ppm -40℃ - +85℃ 32.768K
SWS10206D16-32.768K 1.2X1.0 CERAMIC SMD (2 PAD) Watch Crystal 6pF ±20ppm -10℃ - +60℃ 32.768K
SWS11212D16-32.768K 1.6X1.0 CERAMIC SMD (2 PAD) Watch Crystal 12.5pF ±20ppm -10℃ - +60℃ 32.768K
SWS11212D48-32.768K 1.6X1.0 CERAMIC SMD (2 PAD) Watch Crystal 12.5pF ±20ppm -40℃ - +85℃ 32.768K
SWS1127D48-32.768K 1.6X1.0 CERAMIC SMD (2 PAD) Watch Crystal 7pF ±20ppm -40℃ - +85℃ 32.768K
SWS1129D16-32.768K 1.6X1.0 CERAMIC SMD (2 PAD) Watch Crystal 9pF ±20ppm -10℃ - +60℃ 32.768K
SWS1129D48-32.768K 1.6X1.0 CERAMIC SMD (2 PAD) Watch Crystal 9pF ±20ppm -40℃ - +85℃ 32.768K
SWS14412D48A-32.768K 10.4X4.06 PLASTIC SMD (4 PAD) Watch Crystal 12.5pF ±20ppm -40℃ - +85℃ 32.768K
SWS14412D48B-32.768K 10.4X4.06 PLASTIC SMD (4 PAD) Watch Crystal 12.5pF ±20ppm -40℃ - +85℃ 32.768K
SWS1446D48A-32.768K 10.4X4.06 PLASTIC SMD (4 PAD) Watch Crystal 6pF ±20ppm -40℃ - +85℃ 32.768K
SWS1446D48B-32.768K 10.4X4.06 PLASTIC SMD (4 PAD) Watch Crystal 6pF ±20ppm -40℃ - +85℃ 32.768K
SWS1449D48A-32.768K 10.4X4.06 PLASTIC SMD (4 PAD) Watch Crystal 9pF ±20ppm -40℃ - +85℃ 32.768K
SWS21212D48-32.768K 2.0X1.2 CERAMIC SMD (2 PAD) Watch Crystal 12.5pF ±20ppm -40℃ - +85℃ 32.768K
SWS2129F48-32.768K 2.0X1.2 CERAMIC SMD (2 PAD) Watch Crystal 9pF ±10ppm -40℃ - +85℃ 32.768K
SAW21212D4B-32.768K 2.0X1.2 CERAMIC SMD (2 PAD) Watch Crystal 12.5pF ±20ppm  -40℃ - +125℃ 32.768K
SAW21209F4A-32.768K 2.0X1.2 CERAMIC SMD (2 PAD) Watch Crystal 9pF ±10ppm  -40℃ - +105℃ 32.768K
SAW21207D58-32.768K 2.0X1.2 CERAMIC SMD (2 PAD) Watch Crystal 7pF ±20ppm  -55℃ - +85℃ 32.768K
SAW21206F5B-32.768K 2.0X1.2 CERAMIC SMD (2 PAD) Watch Crystal 6pF ±10ppm  -55℃ - +125℃ 32.768K
SWS31212D16-32.768K 3.2X1.5 CERAMIC SMD (2 PAD) Watch Crystal 12.5pF ±20ppm -10℃ - +60℃ 32.768K
SWS31212D48-32.768K 3.2X1.5mm 高品质石英晶振 12.5pF ±20ppm -40℃ - +85℃ 32.768K
SWS3126D16-32.768K 3.2X1.5 CERAMIC SMD (2 PAD) Watch Crystal 6pF ±20ppm -10℃ - +60℃ 32.768K
SWS3126D48-32.768K 3.2X1.5 CERAMIC SMD (2 PAD) Watch Crystal 6pF ±20ppm -40℃ - +85℃ 32.768K
SWS3127D16-32.768K 3.2X1.5 CERAMIC SMD (2 PAD) Watch Crystal 7pF ±20ppm -10℃ - +60℃ 32.768K
SWS3127D48-32.768K 3.2X1.5 CERAMIC SMD (2 PAD) Watch Crystal 7pF ±20ppm -40℃ - +85℃ 32.768K
SWS3129D16-32.768K 3.2X1.5 CERAMIC SMD (2 PAD) Watch Crystal 9pF ±20ppm -10℃ - +60℃ 32.768K
SWS3129D48-32.768K 3.2X1.5 CERAMIC SMD (2 PAD) Watch Crystal 9pF ±20ppm -40℃ - +85℃ 32.768K
SWS41212D16-32.768K 4.1X1.5 CERAMIC SMD (2 PAD) Watch Crystal 12.5pF ±20ppm -10℃ - +60℃ 32.768K
SWS41212D48-32.768K 4.1X1.5 CERAMIC SMD (2 PAD) Watch Crystal 12.5pF ±20ppm -40℃ - +85℃ 32.768K
SWS51212D16-32.768K 4.9X1.8 CERAMIC SMD (2 PAD) Watch Crystal 12.5pF ±20ppm -10℃ - +60℃ 32.768K
SWS5127D16-32.768K 4.9X1.8 CERAMIC SMD (2 PAD) Watch Crystal 7pF ±20ppm -10℃ - +60℃ 32.768K
SWS5129D16-32.768K 4.9X1.8 CERAMIC SMD (2 PAD) Watch Crystal 9pF ±20ppm -10℃ - +60℃ 32.768K
SWS61412D48-32.768K 6.9X1.4 PLASTIC SMD (4 PAD) Watch Crystal 12.5pF ±20ppm -40℃ - +85℃ 32.768K
SWS83412D16-32.768K 8.0X3.8 PLASTIC SMD (4 PAD) Watch Crystal 12.5pF ±20ppm -10℃ - +60℃ 32.768K
SWS83412D48-32.768K 8.0X3.8 PLASTIC SMD (4 PAD) Watch Crystal 12.5pF ±20ppm -40℃ - +85℃ 32.768K
SWS8346D16-32.768K 8.0X3.8 PLASTIC SMD (4 PAD) Watch Crystal 6pF ±20ppm -10℃ - +60℃ 32.768K
SWS8346D48-32.768K 8.0X3.8 PLASTIC SMD (4 PAD) Watch Crystal 6pF ±20ppm -40℃ - +85℃ 32.768K
SWS8347D16-32.768K 8.0X3.8 PLASTIC SMD (4 PAD) Watch Crystal 7pF ±20ppm -10℃ - +60℃ 32.768K
SWS8347D48-32.768K 8.0X3.8 PLASTIC SMD (4 PAD) Watch Crystal 7pF ±20ppm -40℃ - +85℃ 32.768K
SWS8349D16-32.768K 8.0X3.8 PLASTIC SMD (4 PAD) Watch Crystal 9pF ±20ppm -10℃ - +60℃ 32.768K
SWS8349D48-32.768K 8.0X3.8 PLASTIC SMD (4 PAD) Watch Crystal 9pF ±20ppm -40℃ - +85℃ 32.768K
