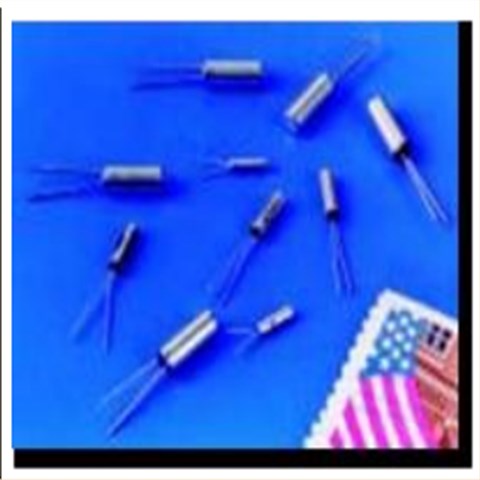

拉隆晶振,无源晶体谐振器,R26-32.768-12.5,进口石英晶振

拉隆晶振,无源晶体谐振器,R26-32.768-12.5,进口石英晶振，欧美石英晶振，美国晶振，两脚插件石英晶振，超小体积晶体谐振器，拉隆无源晶体，编码为：R26-32.768-12.5，频率：32.768 kHz，频率公差为：±20ppm，负载电容为：12.5PF，工作温度范围：-40℃至+85℃，晶振体积尺寸为：2.1mm，R26系列石英晶振，石英晶体，高质量晶振，32.768K时钟晶体小型,薄型,轻型，产品具有优良的耐热性，耐环境特性，可发挥晶振优良的电气特性，符合欧盟RoHS规定，满足无铅焊接的高温回流温度曲线要求，主要应用于智能手表晶振，平板电脑晶振和智能手环晶振等产品。

拉隆晶振,无源晶体谐振器,R26-32.768-12.5,进口石英晶振，欧美石英晶振，美国晶振，两脚插件石英晶振，超小体积晶体谐振器，拉隆无源晶体，编码为：R26-32.768-12.5，频率：32.768 kHz，频率公差为：±20ppm，负载电容为：12.5PF，工作温度范围：-40℃至+85℃，晶振体积尺寸为：2.1mm，R26系列石英晶振，石英晶体，高质量晶振，32.768K时钟晶体小型,薄型,轻型，产品具有优良的耐热性，耐环境特性，可发挥晶振优良的电气特性，符合欧盟RoHS规定，满足无铅焊接的高温回流温度曲线要求，主要应用于智能手表晶振，平板电脑晶振和智能手环晶振等产品。

拉隆晶振,无源晶体谐振器,R26-32.768-12.5,进口石英晶振，参数表

编码	品牌	型号	频率	频率公差	负载电容	工作温度	尺寸
R26-32.768-12.5	Raltron Crystal	R26	32.768 kHz	±20ppm	12.5pF	-40°C ~ 85°C	2.10mm

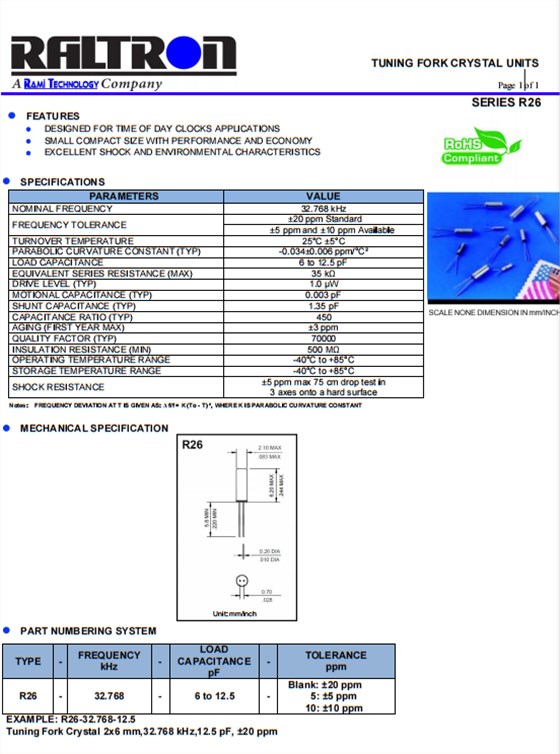

拉隆晶振,无源晶体谐振器,R26-32.768-12.5,进口石英晶振，尺寸图

编码	品牌	型号	频率	频率公差	负载电容	工作温度
R26-32.768-12.5	Raltron Crystal	R26	32.768 kHz	±20ppm	12.5pF	-40°C ~ 85°C
RH100-12.000-20-3030-EXT-TR	Raltron Crystal	RH100	12 MHz	±30ppm	20pF	-40°C ~ 85°C
RH100-12.000-18-2020-TR	Raltron Crystal	RH100	12 MHz	±20ppm	18pF	-20°C ~ 70°C
RH100-24.000-18-2030-EXT-TR	Raltron Crystal	RH100	24 MHz	±20ppm	18pF	-40°C ~ 85°C
RH100-12.000-12-1010-EXT-TR	Raltron Crystal	RH100	12 MHz	±10ppm	12pF	-40°C ~ 85°C
RH100-12.000-9-1015-TR-NS1	Raltron Crystal	RH100	12 MHz	±10ppm	9pF	-20°C ~ 70°C
RH100-25.000-16-F-2020-EXT-TR	Raltron Crystal	RH100	25 MHz	±20ppm	16pF	-40°C ~ 85°C
RH100-24.000-8-1010-EXT-TR	Raltron Crystal	RH100	24 MHz	±10ppm	8pF	-40°C ~ 85°C
RH100-25.000-18-F-1010-TR	Raltron Crystal	RH100	25 MHz	±10ppm	18pF	-20°C ~ 70°C
RH100-16.000-8-1010-TR	Raltron Crystal	RH100	16 MHz	±10ppm	8pF	-20°C ~ 70°C
RH100-25.000-10-F-1010-EXT-TR	Raltron Crystal	RH100	25 MHz	±10ppm	10pF	-40°C ~ 85°C
R2520-32.000-8-F-1030-EXT-TR	Raltron Crystal	R2520	32 MHz	±10ppm	8pF	-40°C ~ 85°C
AS-3.579545-18	Raltron Crystal	AS	3.579545 MHz	±30ppm	18pF	-20°C ~ 70°C
AS-4.000-18	Raltron Crystal	AS	4 MHz	±30ppm	18pF	-20°C ~ 70°C
AS-20.000-20	Raltron Crystal	AS	20 MHz	±30ppm	20pF	-20°C ~ 70°C
AS-11.0592-18-EXT	Raltron Crystal	AS	11.0592 MHz	±30ppm	18pF	-40°C ~ 85°C
AS-16.000-20-EXT	Raltron Crystal	AS	16 MHz	±30ppm	20pF	-40°C ~ 85°C
AS-27.000-20-F	Raltron Crystal	AS	27 MHz	±30ppm	20pF	-20°C ~ 70°C
AS-25.000-18-F-EXT	Raltron Crystal	AS	25 MHz	±30ppm	18pF	-40°C ~ 85°C
R2520-12.000-8-1030-EXT-TR	Raltron Crystal	R2520	12 MHz	±10ppm	8pF	-40°C ~ 85°C
RT3215-32.768-9-TR	Raltron Crystal	RT3215	32.768 kHz	±20ppm	9pF	-40°C ~ 85°C
RSM200S-32.768-6-TR	Raltron Crystal	RSM200S	32.768 kHz	±20ppm	6pF	-40°C ~ 85°C
H130B-16.000-18-3030-EXT-TR	Raltron Crystal	H130B	16 MHz	±30ppm	18pF	-40°C ~ 85°C
H130B-12.000-18-3030-TR	Raltron Crystal	H130B	12 MHz	±30ppm	18pF	-20°C ~ 70°C
H130B-24.000-18-3030-EXT-TR	Raltron Crystal	H130B	24 MHz	±30ppm	18pF	-40°C ~ 85°C
RSE-32.768-12.5-H14-TR	Raltron Crystal	RSE H14	32.768 kHz	±50ppm	12.5pF	-20°C ~ 70°C
RH100-8.000-10-1010-EXT-TR	Raltron Crystal	RH100	8 MHz	±10ppm	10pF	-40°C ~ 85°C
H130A-8.000-8-2030-TR	Raltron Crystal	H130A	8 MHz	±20ppm	8pF	-20°C ~ 70°C
RH100-8.000-8-2020-TR	Raltron Crystal	RH100	8 MHz	±20ppm	8pF	-20°C ~ 70°C
RT2012-32.768-6-TR	Raltron Crystal	RT2012	32.768 kHz	±50ppm	6pF	-40°C ~ 85°C
RH100-8.000-16-3030-TR-NS1	Raltron Crystal	RH100	8 MHz	±30ppm	16pF	-20°C ~ 70°C
H13-8.000-18-3030-EXT-TR	Raltron Crystal	H13	8 MHz	±30ppm	18pF	-40°C ~ 85°C
AS-4.9152-18-EXT-SMD-TR	Raltron Crystal	AS-SMD	4.9152 MHz	±30ppm	18pF	-40°C ~ 85°C
AS-10.000-20-3030-SMD-TR	Raltron Crystal	AS-SMD	10 MHz	±30ppm	20pF	-20°C ~ 70°C
AS-30.000-10-F-2020-EXT-SMD-TR	Raltron Crystal	AS-SMD	30 MHz	±20ppm	10pF	-40°C ~ 85°C
AS-4.000-18-SMD-TR	Raltron Crystal	AS-SMD	4 MHz	±30ppm	18pF	-20°C ~ 70°C
AS-3.579545-18-SMD-TR	Raltron Crystal	AS-SMD	3.579545 MHz	±30ppm	18pF	-20°C ~ 70°C
AS-13.560-20-SMD-TR	Raltron Crystal	AS-SMD	13.56 MHz	±30ppm	20pF	-20°C ~ 70°C
AS-20.000-16-SMD-TR	Raltron Crystal	AS-SMD	20 MHz	±30ppm	16pF	-20°C ~ 70°C
AS-7.3728-20-EXT-SMD-TR	Raltron Crystal	AS-SMD	7.3728 MHz	±30ppm	20pF	-40°C ~ 85°C
AS-7.3728-18-SMD-TR	Raltron Crystal	AS-SMD	7.3728 MHz	±30ppm	18pF	-20°C ~ 70°C
