515ACB240M000AAGR,Si515可视化智能家居晶振,思佳讯OSC振荡器

频率：240MHZ

尺寸：7.0×5.0mm

515ACB240M000AAGR,Si515可视化智能家居晶振,思佳讯OSC振荡器，尺寸7.0×5.0mm，频率240MHZ，输出逻辑LVPECL，电压3.3V，频率稳定性20ppm，欧美进口晶振，思佳讯有源LVPECL差分晶振，Skyworks压控振荡器，LVPECL输出晶振，差分晶体振荡器，7050mm差分晶振，LVPECL差分晶振，贴片差分晶振，压控晶体振荡器，压控差分晶振，六脚差分振荡器，石英差分振荡器，高频差分晶振，低电压差分晶振，低耗能差分晶振，低功耗差分晶振，低相位差分晶振，高品质差分晶振，高性能差分晶振，可视化智能家居专用差分晶振，仪器仪表差分晶振，广播视频差分晶振，交换机差分晶振，电信应用差分晶振，无线路由器差分晶振，具有高性能低电压低抖动的特点。

VCXO晶振产品非常适合用于可视化智能家居，仪器仪表，广播视频，交换机振，电信应用，无线路由器等领域。515ACB240M000AAGR,Si515可视化智能家居晶振,思佳讯OSC振荡器.

订购热线：0755-27838351

515ACB240M000AAGR,Si515可视化智能家居晶振,思佳讯OSC振荡器 参数表

Parameter	Symbol	Test Condition	Min	Typ	Max	Unit
Supply Voltage	V DD	3.3 V option	2.97	3.3	3.63	V
		2.5 V option	2.25	2.5	2.75	V
Supply Current	IDD	CMOS, 100 MHz, single-ended	—	24	29	mA
		LVDS (output enabled)	—	22	26	mA
		LVPECL (output enabled)	—	42	46	mA
		HCSL (output enabled)	—	44	47	mA
		Tristate (output disabled)	—	—	22	mA
OE “1” Setting	VIH	See Note	0.80 x V DD	—	—	V
OE “0” Setting	VIL	See Note	—	—	0.20 x V DD	V
OE Internal Pull-Up/ Pull-Down Resistor*	RI		—	45	—	kΩ
Operating Temperature	TA		–40	—	85	oC

Parameter

Symbol

Test Condition

Min

Typ

Max

Unit

Control Voltage Range

0.1 x V DD

V DD/2

0.9 x V DD

Control Voltage Tuning Slope
(10 to 90% V DD)

Positive slope,
ordering option

60, 90, 120, 150

ppm/V

Kv Variation

Kv_var

—

±10

Control Voltage Linearity

LVC

BSL

–5

±1

Modulation Bandwidth

—

kHz

Vc Input Impedance

Z VC

—

100

—

kΩ

Parameter

Symbol

Test Condition

Min

Typ

Max

Unit

Nominal Frequency

CMOS, Dual CMOS

0.1

—

212.5

MHz

LVDS/LVPECL/HCSL

240

MHz

Temperature Stability

TA = –40 to +85 oC

–20

—

+20

ppm

Aging

Frequency drift over 10 year life

—

±8.5

ppm

Minimum Absolute Pull Range

APR

Ordering option

±30, ±50,±80, ±100

ppm

Startup Time

TSU

Minimum V DD to output fre-
quency (FO) within specification

—

Disable Time

FO > 10 MHz

—

µs

FO< 10 MHz

µs

Enable Time

FO > 10 MHz

—

µs

FO< 10 MHz

µs

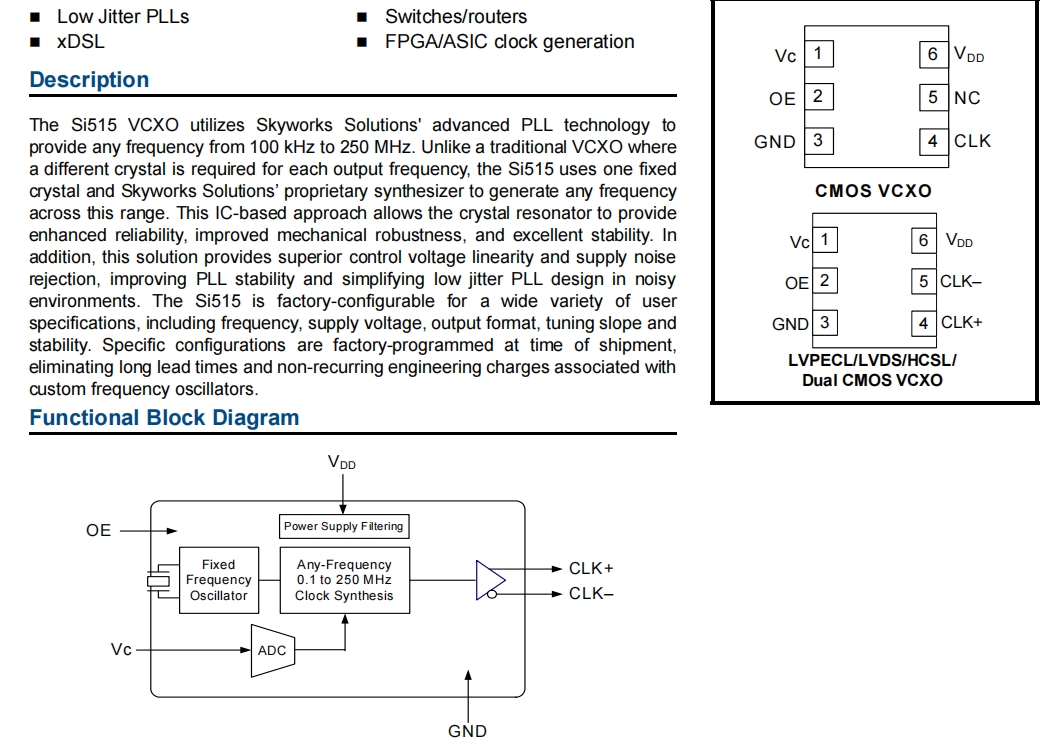

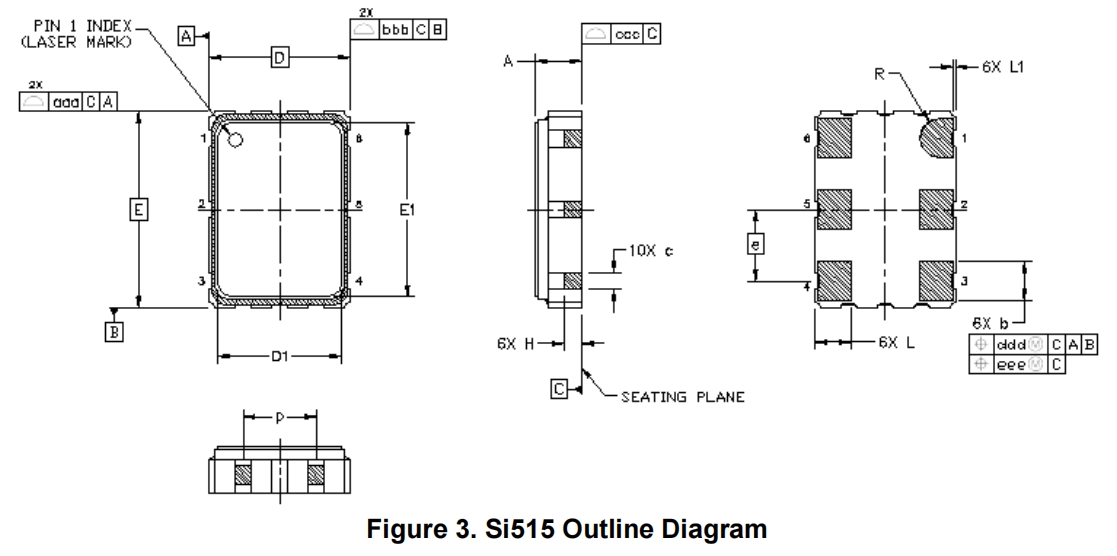

515ACB240M000AAGR,Si515可视化智能家居晶振,思佳讯OSC振荡器 尺寸图

515ACB240M000AAGR,Si515可视化智能家居晶振,思佳讯OSC振荡器

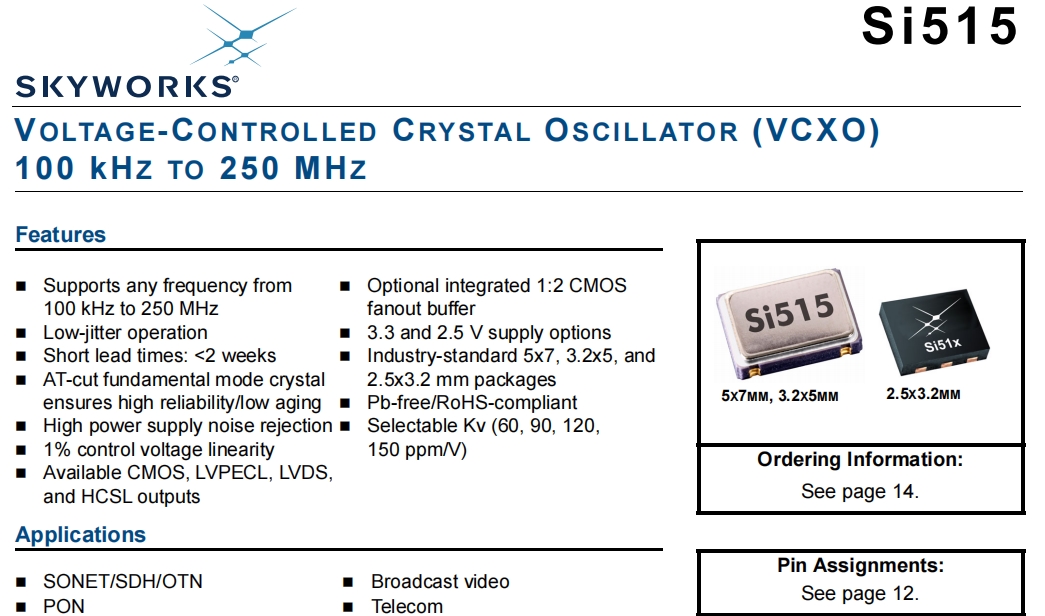

OSC晶振产品特性：

支持来自的任何频率100kHz至250MHz

低抖动操作

交付周期短：<2周

AT切基模晶体确保高可靠性/低老化

高电源噪声抑制

1%控制电压线性

可用CMOS、LVPECL、LVDS，和HCSL输出

可选集成1:2 CMOS扇出缓存

3.3和2.5 V电源选项

行业标准5x7、3.2x5和2.5x3.2 mm包装

无铅/符合RoHS

可选择的Kv（60、90、120，150 ppm/V）

Mfr Part #	晶振厂家	Description	Series	Frequency	Output	Voltage - Supply
515BCA148M500AAGR	Skyworks有源晶振	XTAL OSC VCXO 148.5000MHZ LVDS	Si515	148.5 MHz	LVDS	3.3V
515BCA169M406AAGR	Skyworks有源晶振	XTAL OSC VCXO 169.4060MHZ LVDS	Si515	169.406 MHz	LVDS	3.3V
515EDA156M250AAGR	Skyworks有源晶振	XTAL OSC VCXO 156.2500MHZ LVPECL	Si515	156.25 MHz	LVPECL	2.5V
515ACA144M575AAGR	Skyworks有源晶振	XTAL OSCILLATOR	Si515	144.575 MHz	LVPECL	3.3V
515BAA156M250AAGR	Skyworks有源晶振	DIFFERENTIAL/SINGLE-ENDED SINGLE	Si515	156.25 MHz	LVDS	3.3V
515BCA156M250AAGR	Skyworks有源晶振	DIFFERENTIAL/SINGLE-ENDED SINGLE	Si515	156.25 MHz	LVDS	3.3V
515ACA144M390AAGR	Skyworks有源晶振	DIFFERENTIAL/SINGLE-ENDED SINGLE	Si515	144.39 MHz	LVPECL	3.3V
515BBA156M250AAGR	Skyworks有源晶振	DIFFERENTIAL/SINGLE-ENDED SINGLE	Si515	156.25 MHz	LVDS	3.3V
515ACA40M0000AAG	Skyworks有源晶振	DIFFERENTIAL/SINGLE-ENDED SINGLE	Si515	40 MHz	LVPECL	3.3V
515BCB125M000AAG	Skyworks有源晶振	DIFFERENTIAL/SINGLE-ENDED SINGLE	Si515	125 MHz	LVDS	3.3V
515FCA26M0000AAG	Skyworks有源晶振	DIFFERENTIAL/SINGLE-ENDED SINGLE	Si515	26 MHz	LVDS	2.5V
515ABA40M0000AAG	Skyworks有源晶振	DIFFERENTIAL/SINGLE-ENDED SINGLE	Si515	40 MHz	LVPECL	3.3V
515AAA125M000AAG	Skyworks有源晶振	XTAL OSC VCXO 125.0000MHZ LVPECL	Si515	125 MHz	LVPECL	3.3V
515AAA25M0000AAG	Skyworks有源晶振	XTAL OSC VCXO 25.0000MHZ LVPECL	Si515	25 MHz	LVPECL	3.3V
515AAA7M10000AAG	Skyworks有源晶振	XTAL OSC VCXO 7.1000MHZ LVPECL	Si515	7.1 MHz	LVPECL	3.3V
515ABA25M0000AAG	Skyworks有源晶振	XTAL OSC VCXO 25.0000MHZ LVPECL	Si515	25 MHz	LVPECL	3.3V
515ABA80M0000AAG	Skyworks有源晶振	XTAL OSC VCXO 80.0000MHZ LVPECL	Si515	80 MHz	LVPECL	3.3V
515ACA106M250AAG	Skyworks有源晶振	XTAL OSC VCXO 106.2500MHZ LVPECL	Si515	106.25 MHz	LVPECL	3.3V
515ACA10M0000AAG	Skyworks有源晶振	XTAL OSC VCXO 10.0000MHZ LVPECL	Si515	10 MHz	LVPECL	3.3V
515ACA10M7000AAG	Skyworks有源晶振	XTAL OSC VCXO 10.7000MHZ LVPECL	Si515	10.7 MHz	LVPECL	3.3V
515ACA54M0000AAG	Skyworks有源晶振	XTAL OSC VCXO 54.0000MHZ LVPECL	Si515	54 MHz	LVPECL	3.3V
515ACAM100000AAG	Skyworks有源晶振	XTAL OSC VCXO 100.0000KHZ LVPECL	Si515	100 kHz	LVPECL	3.3V
515ACB10M0000AAG	Skyworks有源晶振	XTAL OSC VCXO 10.0000MHZ LVPECL	Si515	10 MHz	LVPECL	3.3V
515ACB44M1000AAG	Skyworks有源晶振	XTAL OSC VCXO 44.1000MHZ LVPECL	Si515	44.1 MHz	LVPECL	3.3V
515ADA50M0000AAG	Skyworks有源晶振	XTAL OSC VCXO 50.0000MHZ LVPECL	Si515	50 MHz	LVPECL	3.3V
515BAA125M000AAG	Skyworks有源晶振	XTAL OSC VCXO 125.0000MHZ LVDS	Si515	125 MHz	LVDS	3.3V
515BAA25M0000AAG	Skyworks有源晶振	XTAL OSC VCXO 25.0000MHZ LVDS	Si515	25 MHz	LVDS	3.3V
515BBA100M000AAG	Skyworks有源晶振	XTAL OSC VCXO 100.0000MHZ LVDS	Si515	100 MHz	LVDS	3.3V
515BBA122M880AAG	Skyworks有源晶振	XTAL OSC VCXO 122.8800MHZ LVDS	Si515	122.88 MHz	LVDS	3.3V
515BBA70M6560AAG	Skyworks有源晶振	XTAL OSC VCXO 70.6560MHZ LVDS	Si515	70.656 MHz	LVDS	3.3V
515BBA74M2500AAG	Skyworks有源晶振	XTAL OSC VCXO 74.2500MHZ LVDS	Si515	74.25 MHz	LVDS	3.3V
515BBB70M6560AAG	Skyworks有源晶振	XTAL OSC VCXO 70.6560MHZ LVDS	Si515	70.656 MHz	LVDS	3.3V
515BCA100M000AAG	Skyworks有源晶振	XTAL OSC VCXO 100.0000MHZ LVDS	Si515	100 MHz	LVDS	3.3V
515BCA105M000AAG	Skyworks有源晶振	XTAL OSC VCXO 105.0000MHZ LVDS	Si515	105 MHz	LVDS	3.3V
515BCA106M250AAG	Skyworks有源晶振	XTAL OSC VCXO 106.2500MHZ LVDS	Si515	106.25 MHz	LVDS	3.3V
515BCA27M0000AAG	Skyworks有源晶振	XTAL OSC VCXO 27.0000MHZ LVDS	Si515	27 MHz	LVDS	3.3V
515BDA30M7200AAG	Skyworks有源晶振	XTAL OSC VCXO 30.7200MHZ LVDS	Si515	30.72 MHz	LVDS	3.3V
515EDA125M000AAG	Skyworks有源晶振	XTAL OSC VCXO 125.0000MHZ LVPECL	Si515	125 MHz	LVPECL	2.5V
515EDA50M0000AAG	Skyworks有源晶振	XTAL OSC VCXO 50.0000MHZ LVPECL	Si515	50 MHz	LVPECL	2.5V
515FCA10M0000AAG	Skyworks有源晶振	XTAL OSC VCXO 10.0000MHZ LVDS	Si515	10 MHz	LVDS	2.5V
515ABA70M6560AAG	Skyworks有源晶振	XTAL OSCILLATOR	Si515	70.656 MHz	LVPECL	3.3V
515BCA20M0000AAG	Skyworks有源晶振	DIFFERENTIAL/SINGLE-ENDED	Si515	20 MHz	LVDS	3.3V
515AAB174M703AAGR	Skyworks有源晶振	XTAL OSC VCXO 174.7030MHZ LVPECL	Si515	174.703 MHz	LVPECL	3.3V
515ABA170M240AAGR	Skyworks有源晶振	XTAL OSC VCXO 170.2400MHZ LVPECL	Si515	170.24 MHz	LVPECL	3.3V
515ACB240M000AAGR	Skyworks有源晶振	XTAL OSC VCXO 240.0000MHZ LVPECL	Si515	240 MHz	LVPECL	3.3V
515ADB173M370AAGR	Skyworks有源晶振	XTAL OSC VCXO 173.3700MHZ LVPECL	Si515	173.37 MHz	LVPECL	3.3V
515BCA176M500AAGR	Skyworks有源晶振	XTAL OSC VCXO 176.5000MHZ LVDS	Si515	176.5 MHz	LVDS	3.3V
515BCA236M500AAGR	Skyworks有源晶振	XTAL OSC VCXO 236.5000MHZ LVDS	Si515	236.5 MHz	LVDS	3.3V
515ECA200M000AAGR	Skyworks有源晶振	XTAL OSC VCXO 200.0000MHZ LVPECL	Si515	200 MHz	LVPECL	2.5V
515AAA250M000AAGR	Skyworks有源晶振	XTAL OSCILLATOR	Si515	250 MHz	LVPECL	3.3V
515ABA250M000AAGR	Skyworks有源晶振	XTAL OSCILLATOR	Si515	250 MHz	LVPECL	3.3V
515BCA200M000BAGR	Skyworks有源晶振	XTAL OSC VCXO 200.0000MHZ LVDS	Si515	200 MHz	LVDS	3.3V
515AAB174M703AAG	Skyworks有源晶振	XTAL OSC VCXO 174.7030MHZ LVPECL	Si515	174.703 MHz	LVPECL	3.3V
515ABA170M240AAG	Skyworks有源晶振	XTAL OSC VCXO 170.2400MHZ LVPECL	Si515	170.24 MHz	LVPECL	3.3V
515ACB240M000AAG	Skyworks有源晶振	XTAL OSC VCXO 240.0000MHZ LVPECL	Si515	240 MHz	LVPECL	3.3V
515ADB173M370AAG	Skyworks有源晶振	XTAL OSC VCXO 173.3700MHZ LVPECL	Si515	173.37 MHz	LVPECL	3.3V
515BCA176M500AAG	Skyworks有源晶振	XTAL OSC VCXO 176.5000MHZ LVDS	Si515	176.5 MHz	LVDS	3.3V
515BCA236M500AAG	Skyworks有源晶振	XTAL OSC VCXO 236.5000MHZ LVDS	Si515	236.5 MHz	LVDS	3.3V
515ECA200M000AAG	Skyworks有源晶振	XTAL OSC VCXO 200.0000MHZ LVPECL	Si515	200 MHz	LVPECL	2.5V
515AAA250M000AAG	Skyworks有源晶振	XTAL OSCILLATOR	Si515	250 MHz	LVPECL	3.3V
515ABA250M000AAG	Skyworks有源晶振	XTAL OSCILLATOR	Si515	250 MHz	LVPECL	3.3V
515AAB167M332AAG	Skyworks有源晶振	XTAL OSC VCXO 167.3320MHZ LVPECL	Si515	167.332 MHz	LVPECL	3.3V
515ABA155M520AAG	Skyworks有源晶振	XTAL OSC VCXO 155.5200MHZ LVPECL	Si515	155.52 MHz	LVPECL	3.3V
515ACA148M350AAG	Skyworks有源晶振	XTAL OSC VCXO 148.3500MHZ LVPECL	Si515	148.35 MHz	LVPECL	3.3V
515ACA155M520AAG	Skyworks有源晶振	XTAL OSC VCXO 155.5200MHZ LVPECL	Si515	155.52 MHz	LVPECL	3.3V
515ACA156M254AAG	Skyworks Crystal	XTAL OSC VCXO 156.2540MHZ LVPECL	Si515	156.254 MHz	LVPECL	3.3V
515BAA148M000AAG	Skyworks有源晶振	XTAL OSC VCXO 148.0000MHZ LVDS	Si515	148 MHz	LVDS	3.3V
515BAA148M500AAG	Skyworks有源晶振	XTAL OSC VCXO 148.5000MHZ LVDS	Si515	148.5 MHz	LVDS	3.3V
515BBA148M350AAG	Skyworks有源晶振	XTAL OSC VCXO 148.3500MHZ LVDS	Si515	148.35 MHz	LVDS	3.3V
515BBA148M500AAG	Skyworks有源晶振	XTAL OSC VCXO 148.5000MHZ LVDS	Si515	148.5 MHz	LVDS	3.3V
515BCA134M100AAG	Skyworks有源晶振	XTAL OSC VCXO 134.1000MHZ LVDS	Si515	134.1 MHz	LVDS	3.3V
515BCA144M795AAG	Skyworks有源晶振	XTAL OSC VCXO 144.7950MHZ LVDS	Si515	144.795 MHz	LVDS	3.3V
515BCA148M500AAG	Skyworks有源晶振	XTAL OSC VCXO 148.5000MHZ LVDS	Si515	148.5 MHz	LVDS	3.3V
515BCA169M406AAG	Skyworks有源晶振	XTAL OSC VCXO 169.4060MHZ LVDS	Si515	169.406 MHz	LVDS	3.3V
515EDA156M250AAG	Skyworks有源晶振	XTAL OSC VCXO 156.2500MHZ LVPECL	Si515	156.25 MHz	LVPECL	2.5V
